Levelling foot MASSIV Steel, Ø 50 mm, M10 x 25 mm, yellow, NBR
EAN
4061408040766
Type
45810679
Introducing the MASSIV Steel Levelling Foot: engineered for stability and precision, with a robust galvanised steel construction, 15,000 N static load capacity, and adjustable 30° angle. Perfect for demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€8.25*
|
| From 5 |
€7.90*
|
| From 15 |
€7.65*
|
| From 50 |
€7.55*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Steel |
| Ø spindle (mm): | 10 |
| Spindle length (mm): | 25 |
| Balancing angle: | 30° |

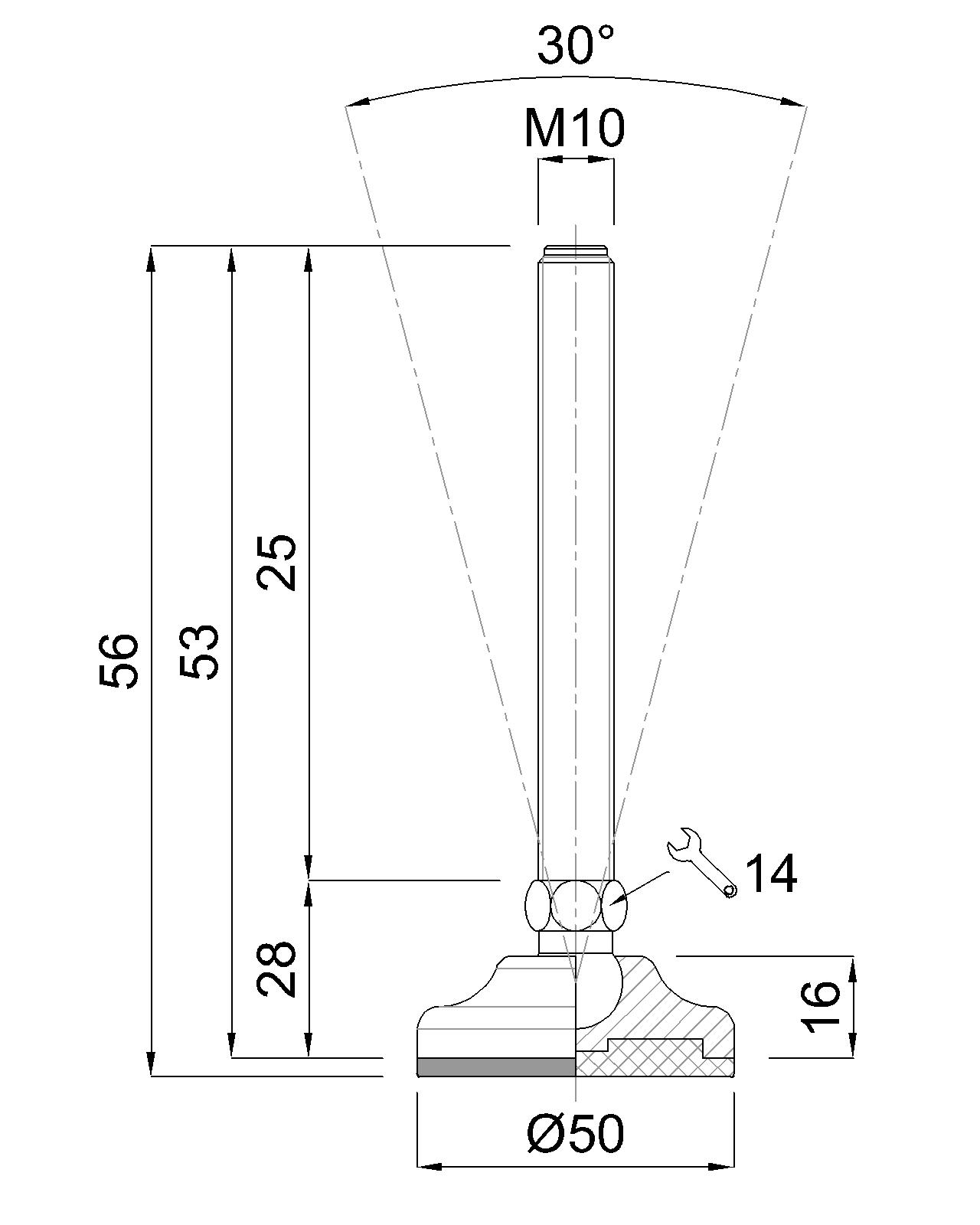

Technical drawing
Levelling foot MASSIV Steel, Ø 50 mm, M10 x 25 mm, Galvanized steel, Total height 56 mm, Articulated screw 30°, yellow painted, Antislip NBR black, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
