Levelling foot MASSIV Steel, Ø 80 mm, M16 x 200 mm, yellow, NBR
EAN
4061408040186
Type
45811307
Introducing the MASSIV Steel Leveling Foot: engineered for durability with a galvanized finish, featuring a robust static load capacity of 30,000 N, articulated screw for 10° adjustment, and a reliable anti-slip NBR base. Perfect for precision applications.
| Quantity | Price |
|---|---|
| From 1 |
€23.60*
|
| From 5 |
€22.59*
|
| From 15 |
€21.88*
|
| From 50 |
€21.59*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |

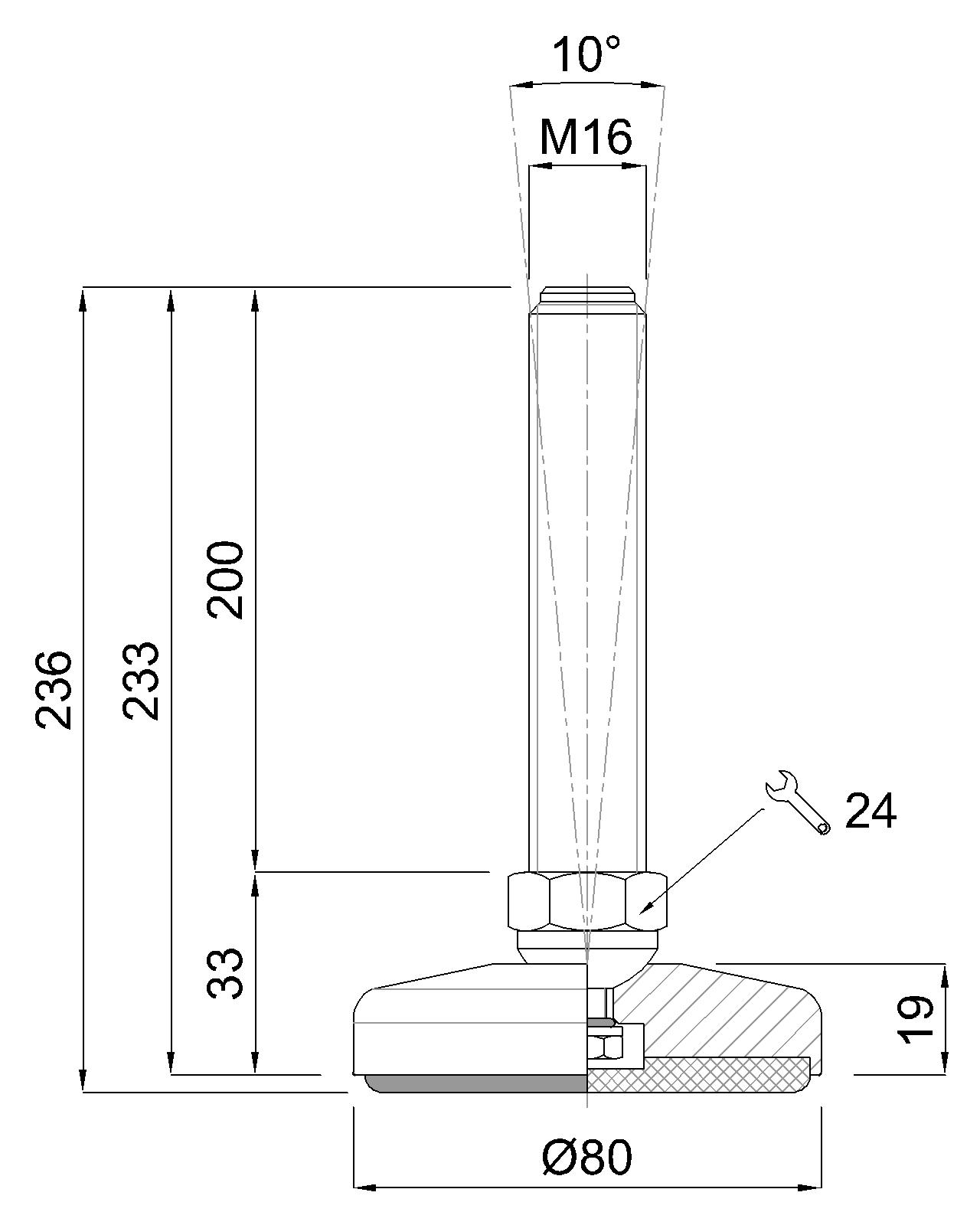

Technical drawing
Levelling foot MASSIV Steel, Ø 80 mm, M16 x 200 mm, Galvanized steel, Total height 233 mm, Articulated screw 10°, yellow painted, Antislip NBR black, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
