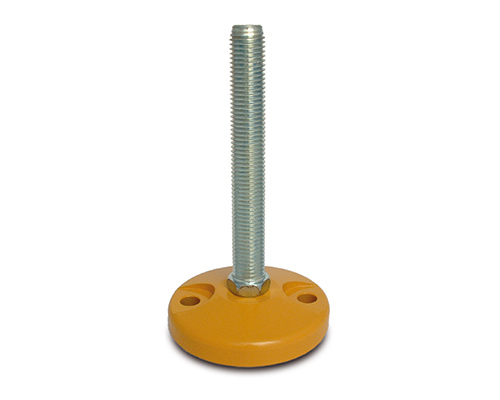

Levelling foot MASSIV Steel, Ø 100 mm, M16 x 200 mm, yellow, Drills
EAN
4061408037018
Type
45812098
Introducing the MASSIV Steel Levelling Foot: engineered for robust support with a static load capacity of 35,000 N. Featuring a 100 mm diameter footplate, M16 x 200 mm spindle, and durable galvanized coating, it ensures stability and precision in any application.
| Quantity | Price |
|---|---|
| From 1 |
€27.21*
|
| From 5 |
€26.05*
|
| From 15 |
€25.23*
|
| From 50 |
€24.90*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 200 |
| Balancing angle: | 0° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 100 mm, M16 x 200 mm, Galvanized steel, Total height 229 mm, yellow painted, Bore holes Ø 12,5 mm, Static load 35.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
