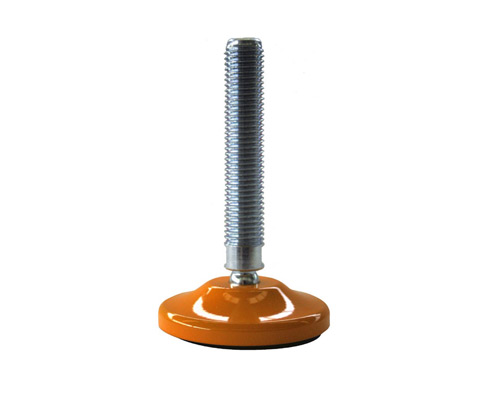

Levelling foot MASSIV Steel, Ø 80 mm, M20 x 125 mm, yellow
EAN
4061408033553
Type
45810752
Optimize your machinery stability with our MASSIV Steel leveling foot, featuring a robust 80 mm base, adjustable 30° articulated screw, and a static load capacity of 30,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€16.70*
|
| From 5 |
€15.99*
|
| From 15 |
€15.48*
|
| From 50 |
€15.28*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 80 mm, M20 x 125 mm, Galvanized steel, Total height 161 mm, Articulated screw 30°, yellow painted, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
