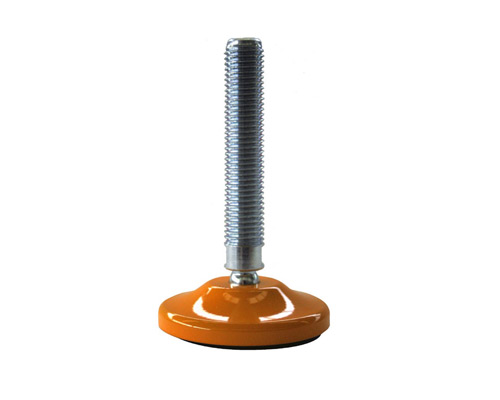

Levelling foot MASSIV Steel, Ø 80 mm, M20 x 75 mm, yellow
EAN
4061408031160
Type
45810748
Discover the MASSIV Steel leveling foot, featuring a sturdy 80 mm diameter and M20 x 75 mm profile. Designed for static loads up to 30,000 N, it ensures stability and precision in any configuration.
| Quantity | Price |
|---|---|
| From 1 |
€15.79*
|
| From 5 |
€15.12*
|
| From 15 |
€14.64*
|
| From 50 |
€14.45*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 80 mm, M20 x 75 mm, Galvanized steel, Total height 111 mm, Articulated screw 30°, yellow painted, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
