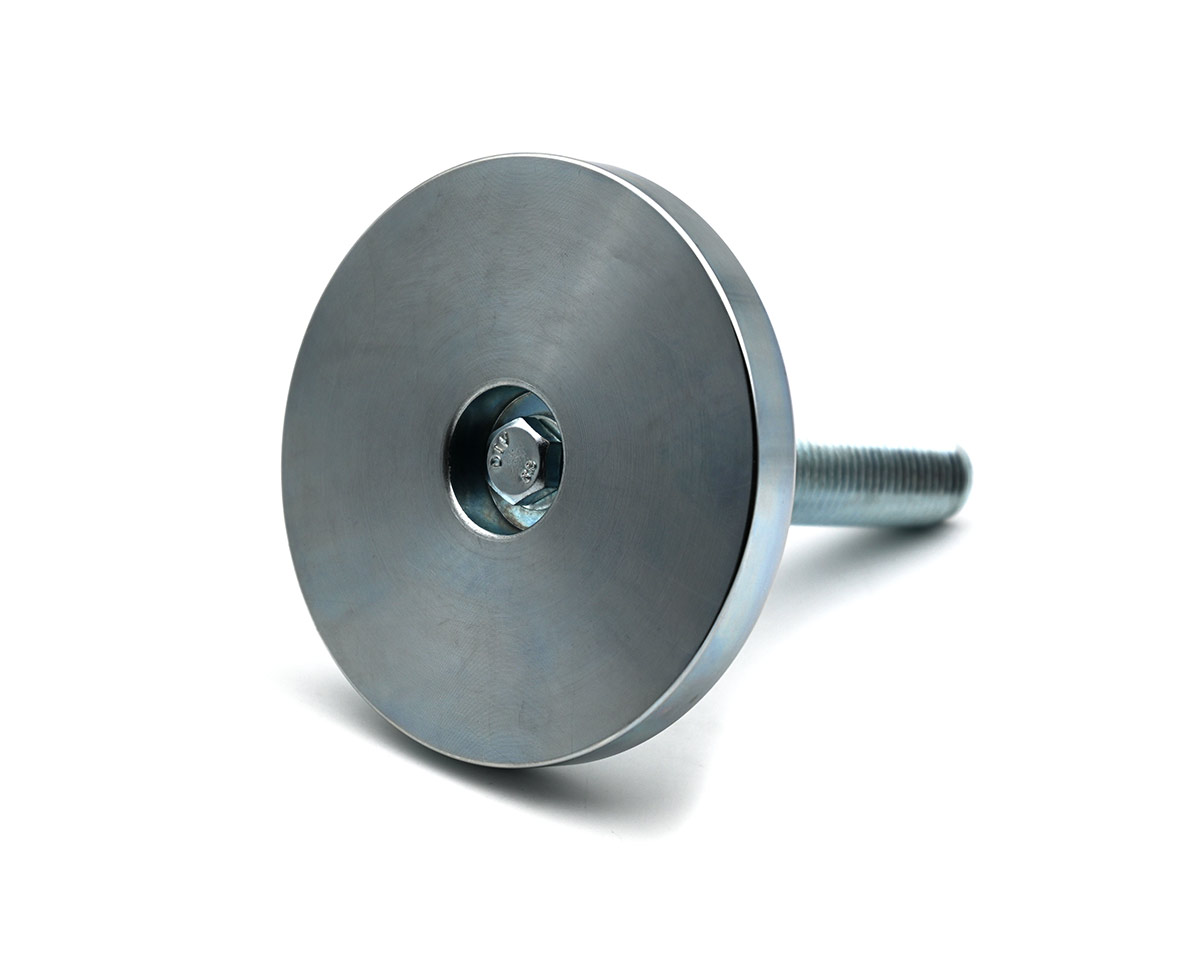

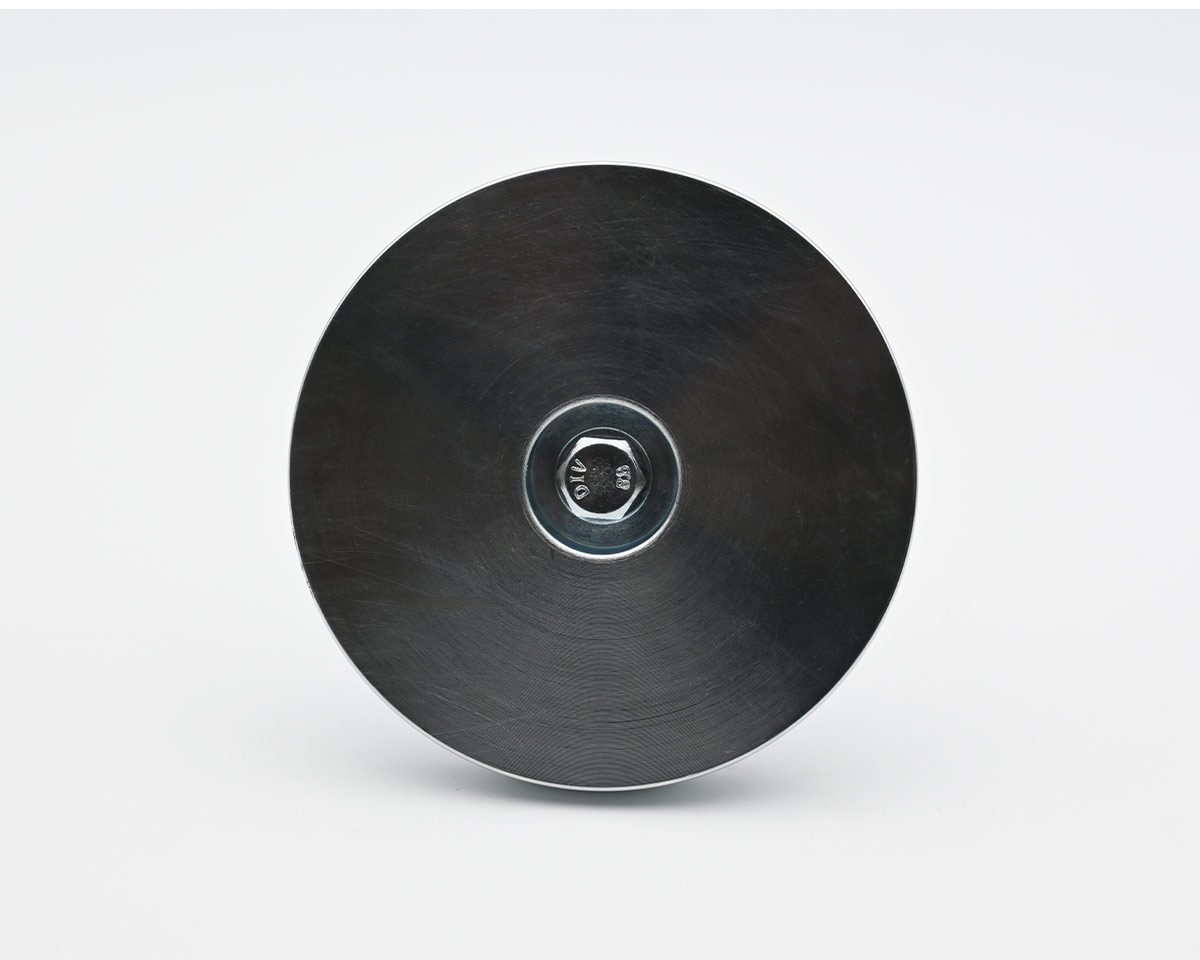

Levelling foot MASSIV Steel, Ø 100 mm, M24 x 150 mm, yellow
EAN
4061408027941
Type
45811374/24
Discover the MASSIV Steel levelling foot with a 100 mm diameter and M24 x 150 mm thread. Designed for optimal stability, it supports static loads up to 45,000 N and features a 10° articulated screw for precision adjustments.
| Quantity | Price |
|---|---|
| From 1 |
€26.05*
|
| From 5 |
€24.95*
|
| From 15 |
€24.16*
|
| From 50 |
€23.84*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
| Hygiene: | No |

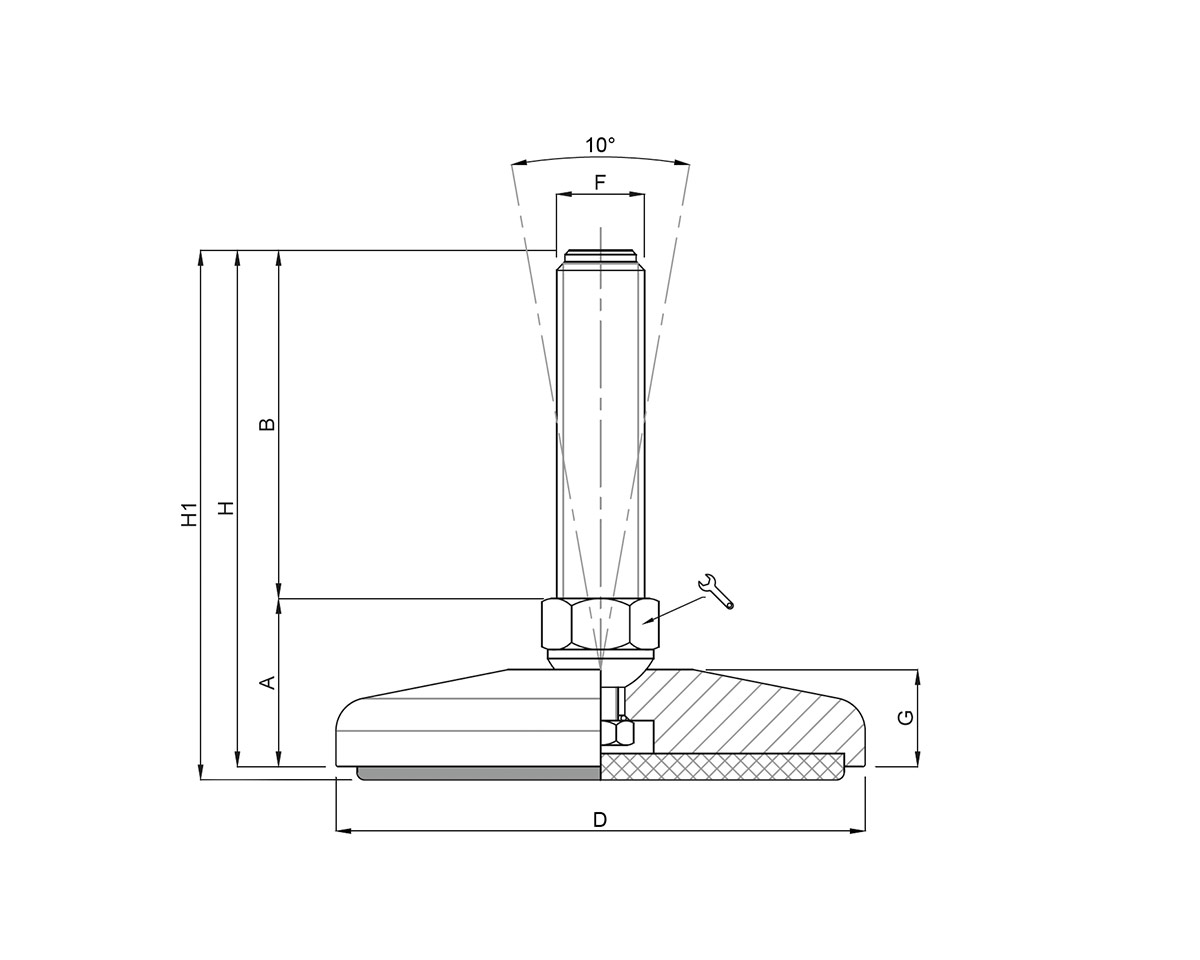

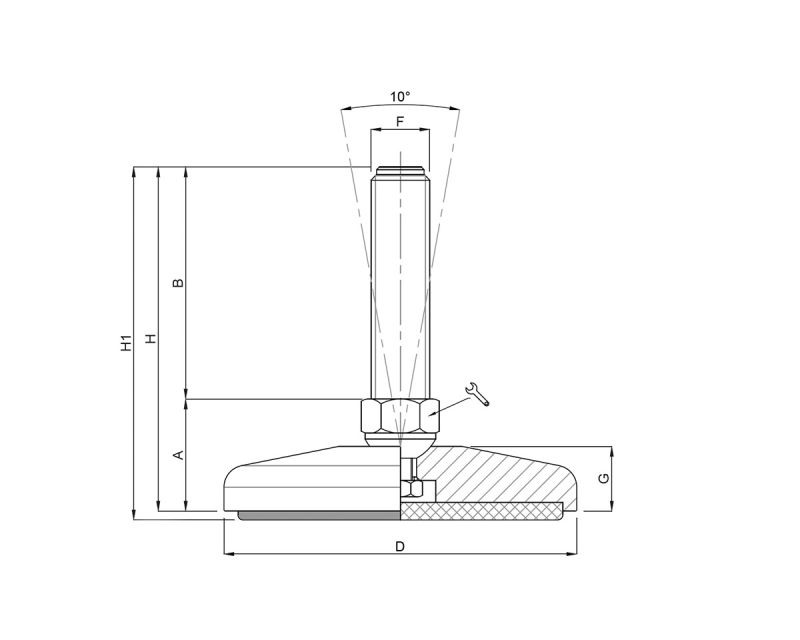

Technical drawing
Levelling foot MASSIV Steel, Ø 100 mm, M24 x 150 mm, Galvanized steel, Total height 184 mm, Articulated screw 10°, yellow painted, Static load 45.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
