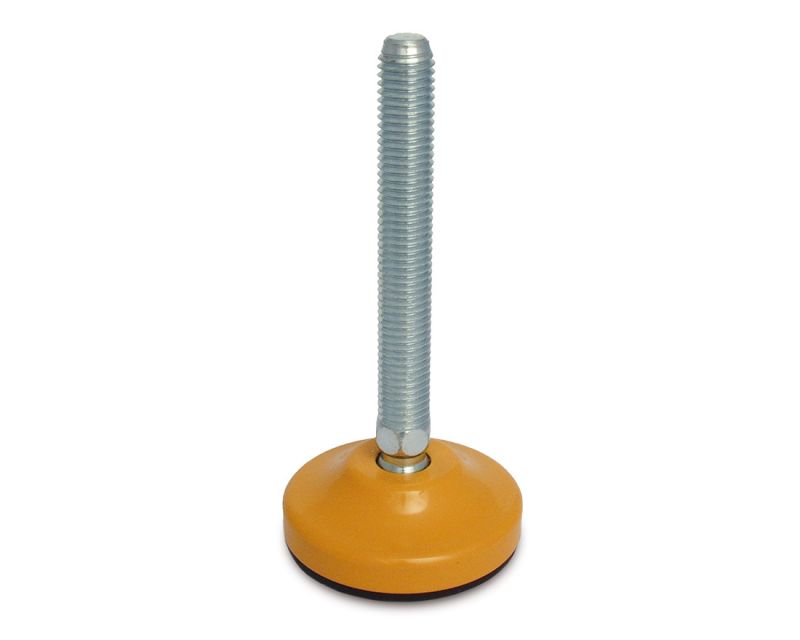

Levelling foot MASSIV Steel, Ø 65 mm, M16 x 100 mm, yellow
EAN
4061408027538
Type
45810724
Introducing the MASSIV Steel Levelling Foot: a robust solution featuring a 65mm diameter base, M16 x 100mm spindle, and a 30° articulated screw. Designed for static loads up to 20,000 N, ensuring stability and precision.
| Quantity | Price |
|---|---|
| From 1 |
€10.82*
|
| From 5 |
€10.36*
|
| From 15 |
€10.04*
|
| From 50 |
€9.91*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 100 |
| Balancing angle: | 30° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 65 mm, M16 x 100 mm, Galvanized steel, Total height 130 mm, Articulated screw 30°, yellow painted, Static load 20.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
