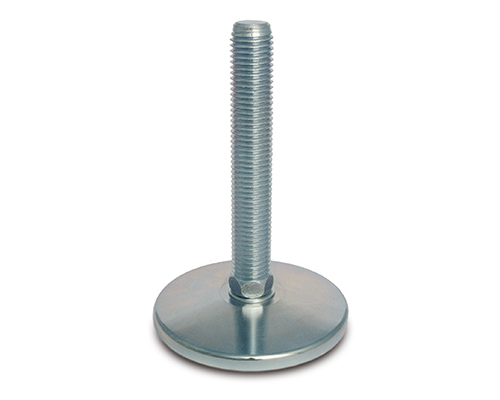

Levelling foot MASSIV Steel, Ø 100 mm, M16 x 75 mm
EAN
4061408023899
Type
45815422
Optimize your machinery's stability with the MASSIV Steel Levelling Foot. Designed for a static load of 30,000 N, it features a 100 mm diameter base and adjustable 5° articulated screw for precision leveling.
| Quantity | Price |
|---|---|
| From 1 |
€13.13*
|
| From 5 |
€12.58*
|
| From 15 |
€12.18*
|
| From 50 |
€12.02*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 75 |
| Balancing angle: | 5° |
| Hygiene: | No |
Technical drawing
Levelling foot MASSIV Steel, Ø 100 mm, M16 x 75 mm, Galvanized steel, Total height 100 mm, Articulated screw 5°, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
