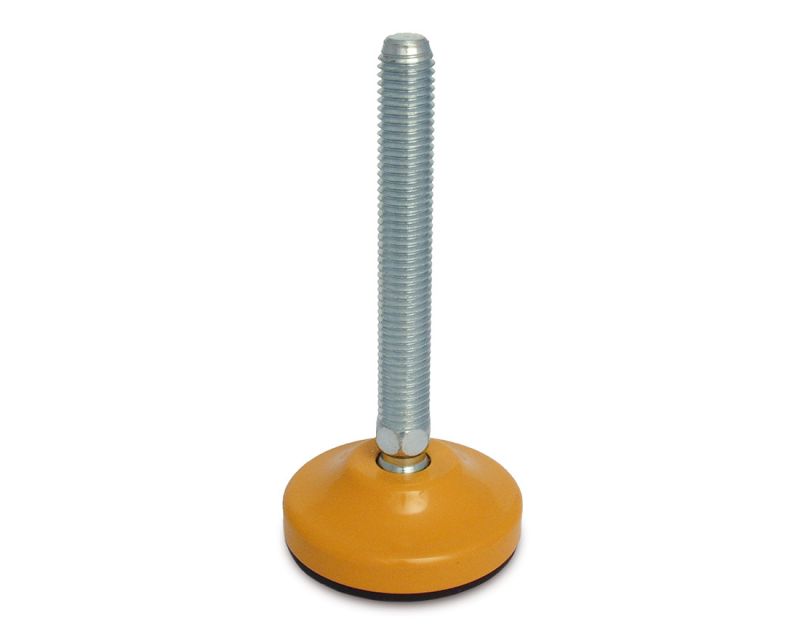

Levelling foot MASSIV Steel, Ø 65 mm, M16 x 75 mm, yellow, NBR
EAN
4061408022274
Type
45810723
Introducing the MASSIV Steel Leveling Foot: a robust solution with a 65 mm diameter for optimal stability. Featuring an articulated screw for 30° adjustment and a static load capacity of 20,000 N, it ensures secure placement even in challenging conditions.
| Quantity | Price |
|---|---|
| From 1 |
€11.14*
|
| From 5 |
€10.67*
|
| From 15 |
€10.33*
|
| From 50 |
€10.19*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 75 |
| Balancing angle: | 30° |
Technical drawing
Levelling foot MASSIV Steel, Ø 65 mm, M16 x 75 mm, Galvanized steel, Total height 108 mm, Articulated screw 30°, yellow painted, Antislip NBR black, Static load 20.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
