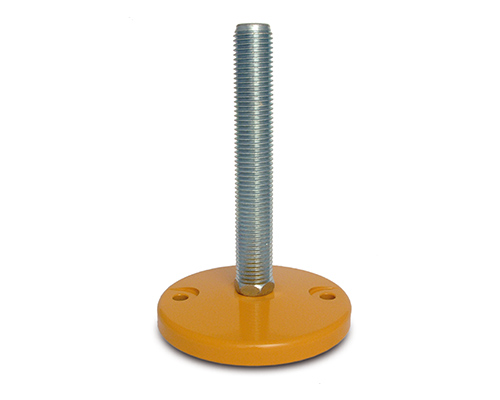

Levelling foot MASSIV Steel, Ø 159 mm, M24 x 250 mm, yellow, Drills, NBR
EAN
4061408114207
Type
45812494/G
The MASSIV Steel levelling foot offers exceptional stability with a robust design, featuring a diameter of 159 mm, M24 x 250 mm spindle, and a static load capacity of 60,000 N. Its NBR anti-slip base ensures secure positioning, ideal for demanding industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€49.30*
|
| From 5 |
€47.21*
|
| From 15 |
€45.72*
|
| From 50 |
€45.12*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 250 |
| Balancing angle: | 0° |
Technical drawing
Levelling foot MASSIV Steel, Ø 159 mm, M24 x 250 mm, Galvanized steel, Total height 285 mm, yellow painted, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 60.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
