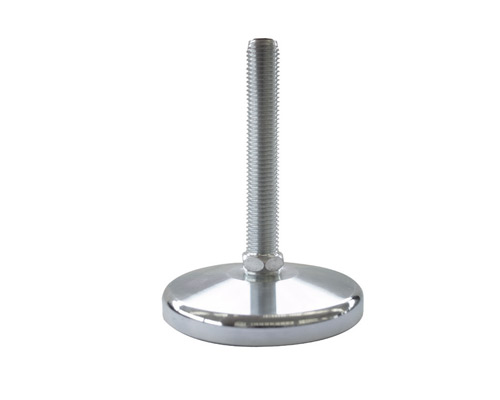

Levelling foot MASSIV Steel, Ø 120 mm, M20 x 200 mm, NBR
Discover the MASSIV Steel Levelling Foot, featuring a robust 120 mm diameter and M20 x 200 mm thread. Engineered for stability with a 50,000 N static load, it ensures precision leveling and anti-slip performance. Ideal for demanding industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€33.46*
|
| From 5 |
€32.04*
|
| From 15 |
€31.03*
|
| From 50 |
€30.62*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |

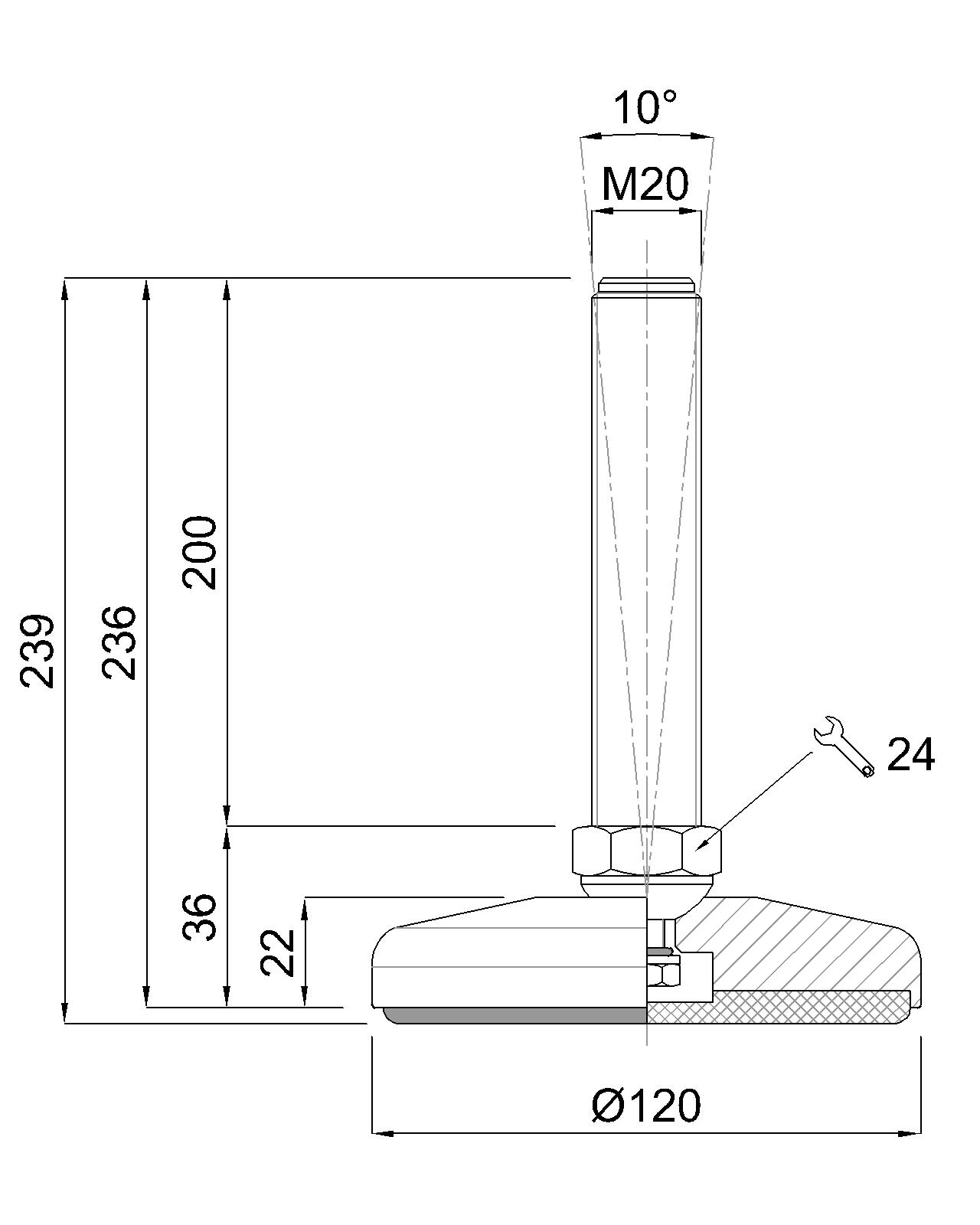

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
