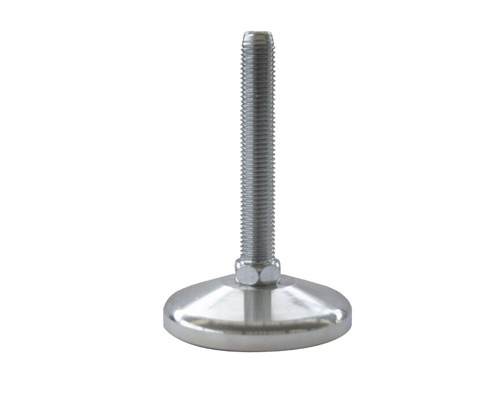

Levelling foot MASSIV Steel, Ø 80 mm, M24 x 150 mm, NBR
EAN
4061408067374
Type
45811567/24
Discover the MASSIV Steel leveling foot with a robust design, ideal for static loads up to 40,000 N. Its articulated screw and NBR anti-slip feature ensure stability and precision.
| Quantity | Price |
|---|---|
| From 1 |
€22.49*
|
| From 5 |
€21.54*
|
| From 15 |
€20.85*
|
| From 50 |
€20.58*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
Technical drawing
Levelling foot MASSIV Steel, Ø 80 mm, M24 x 150 mm, Galvanized steel, Total height 181 mm, Articulated screw 10°, Antislip NBR black, Static load 40.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
