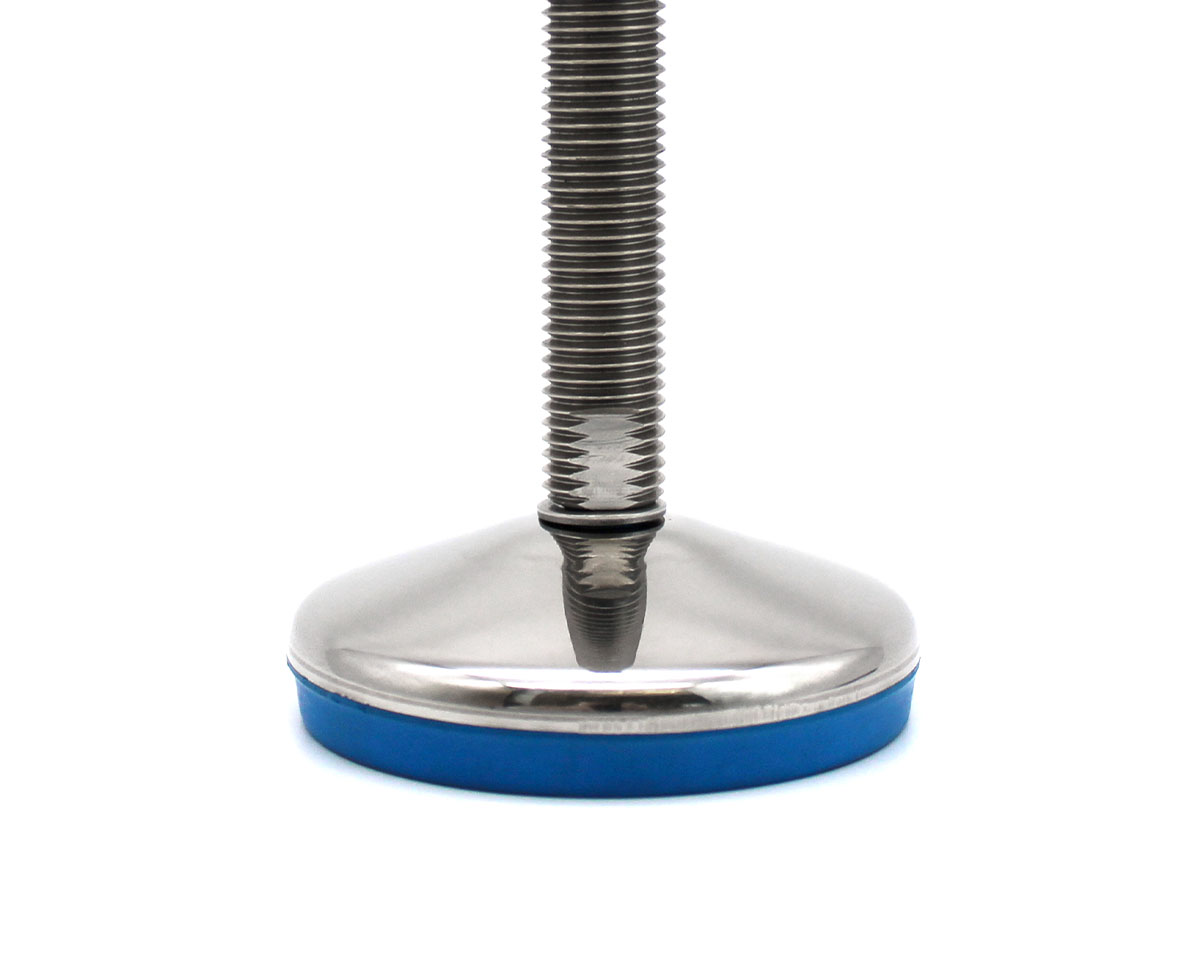

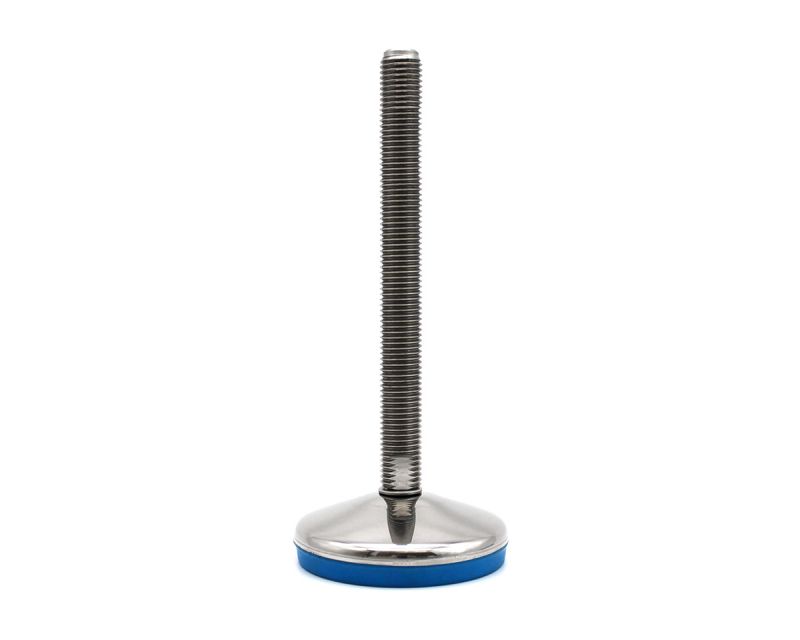

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M16 x 100 mm, EPDM

EAN 4061408120567

Type 45825022/EB

Discover the VULCANIZED stainless steel levelling foot, featuring an 80 mm diameter and a robust capacity of 10,000 N. Ideal for precise adjustments, its articulating screw allows a 10° angle, ensuring stability on various surfaces.

High-strength vulcanized stainless steel construction ensuring durability and resistance to corrosion
Versatile leveling foot with a diameter of 80 mm and a static load capacity of 10,000 N
Adjustable spindle length of 100 mm with a precision-engineered 10° articulated screw for optimal leveling
Anti-slip EPDM rubber pad enhances stability and provides excellent grip on various surfaces
Compatible with a wide diameter range of footplate (71-90 mm) for versatility in applications

Quantity	Price
From 1	€12.08*
From 13	€11.34*
From 25	€10.60*
From 50	€10.08*

*Prices excl. VAT plus shipping costs

106 on stock, Refill time: 5 days

€12.08* / piece

Our payment methods:

Accessories

Welding plate SS M16, 40 x 40

Type No.: 458PI17500

From €2.69*

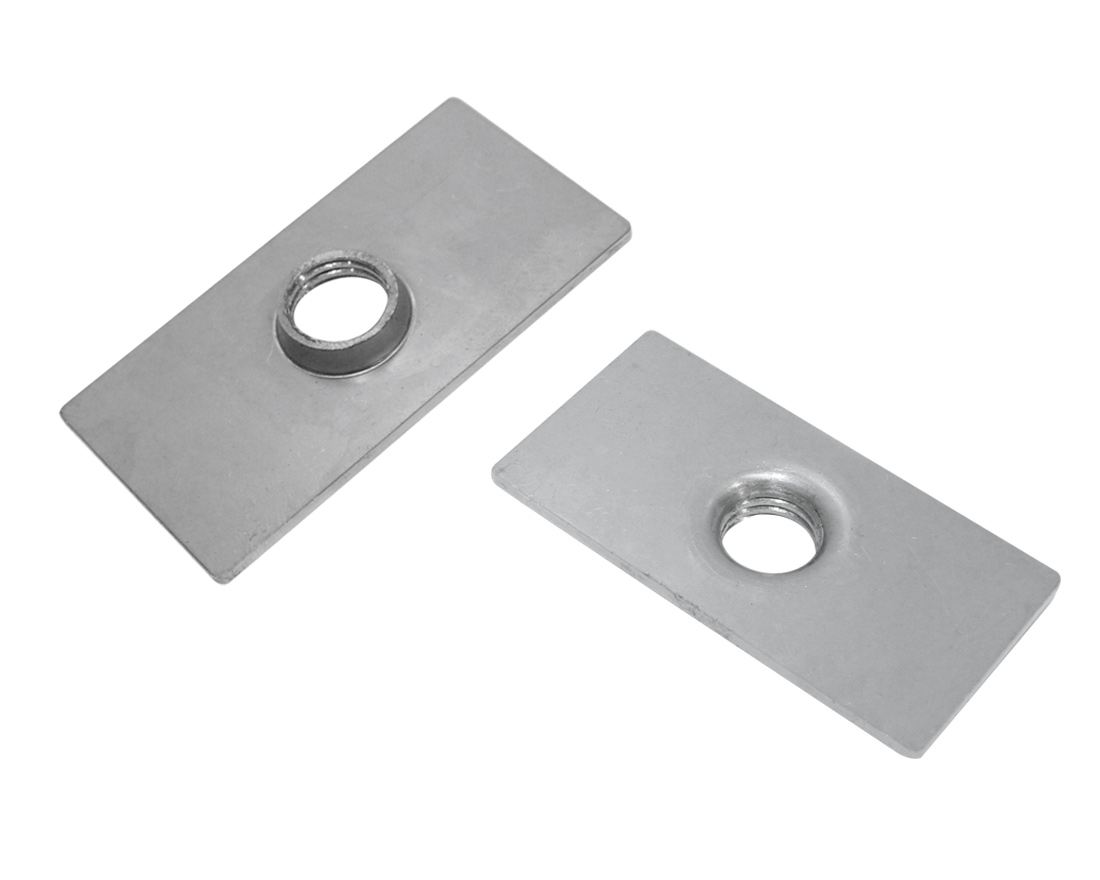

Welding plate SS M16, 100 x 50

Type No.: 458PI17560

From €5.05*

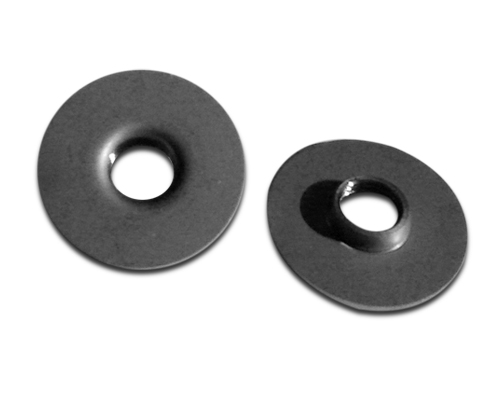

Welding plate SS M16, Ø42

Type No.: 458PI17570

From €2.69*

Product properties

Footplate material:	Stainless steel
Anti-slip:	EPDM blue
Ø range base plate (mm):	71-90
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	100
Balancing angle:	10°

Product description

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M16 x 100 mm, Stainlees steel, Total height 138 mm, Articulated screw 10°, Antislip EPDM blue, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
