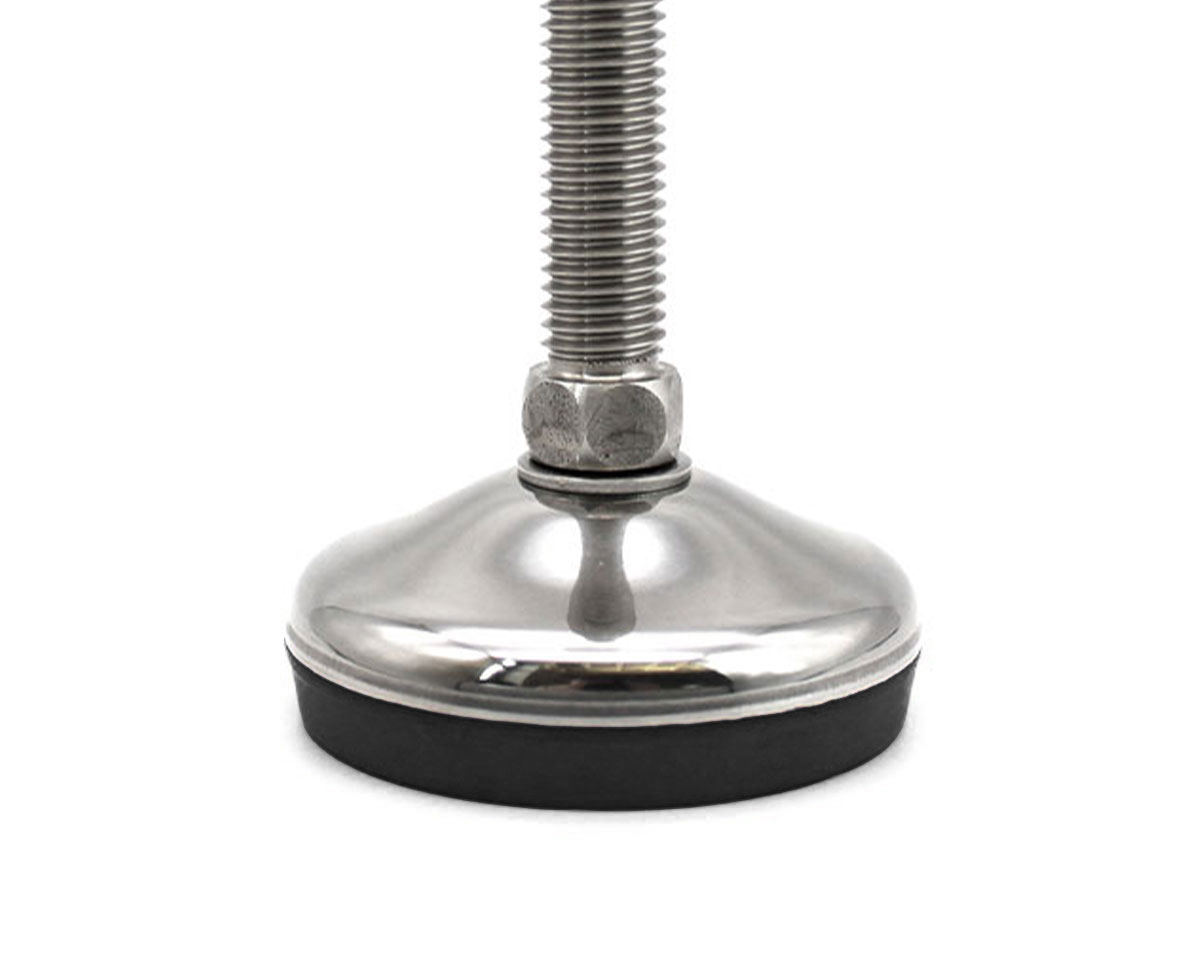

Levelling foot VULCANIZED stainless steel, Ø 50 mm, M12 x 200 mm, NBR

4061408108022
45824609/BF

Experience precision and stability with our VULCANIZED stainless steel leveling foot. Designed for dynamic loads up to 4,000 N, it features a 10° articulated screw and non-slip NBR rubber for maximum grip.

  • Made of vulcanized stainless steel, ensuring high corrosion resistance and durability for long-term use.
  • Articulated screw design with a 10° adjustment angle, allowing for easy leveling on uneven surfaces.
  • Features a black NBR antislip foot, providing superior grip and stability under static load capacities of up to 4,000 N.
  • Designed for a spindle diameter of 12 mm and variable plate diameter range of 41-50 mm for versatile applications.
  • Total adjustable height of 232 mm enables effective height customization for various mounting needs.
Quantity Price
From 1
€9.44*
From 13
€8.87*
From 25
€8.29*
From 50
€7.89*

Currently sold out, Refill time: 5 days

€9.44* / piece
Our payment methods:

Product properties


Footplate material: Stainless steel
Anti-slip: NBR black
Ø range base plate (mm): 41-50
Material spindle: Stainless steel
Ø spindle (mm): 12
Spindle length (mm): 200
Balancing angle: 10°
Levelling foot VULCANIZED stainless steel, Ø 50 mm, M12 x 200 mm, Stainlees steel, Total height 232 mm, Articulated screw 10°, Antislip NBR black, Static load 4.000 N
