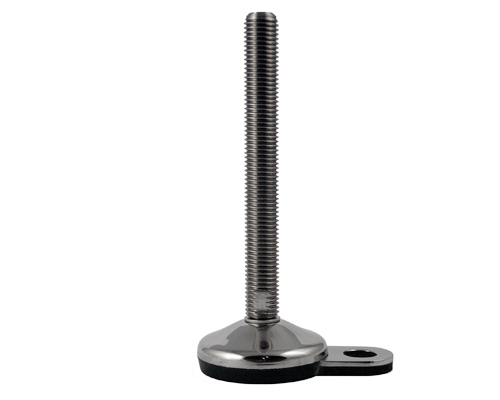

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M20 x 125 mm, Lug, NBR
Introducing our VULCANIZED stainless steel levelling foot – featuring a 60 mm diameter, M20 x 125 mm spindle, and a robust NBR anti-slip coating. Engineered for stability with a static load capacity of 7,000 N, it ensures precise leveling even at a 10° adjustment angle. Ideal for industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€13.81*
|
| From 13 |
€12.97*
|
| From 25 |
€12.14*
|
| From 50 |
€11.55*
|
43 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 125 |
| Balancing angle: | 10° |
| Hygiene: | No |
| Brake: | No |
| Steerable: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
