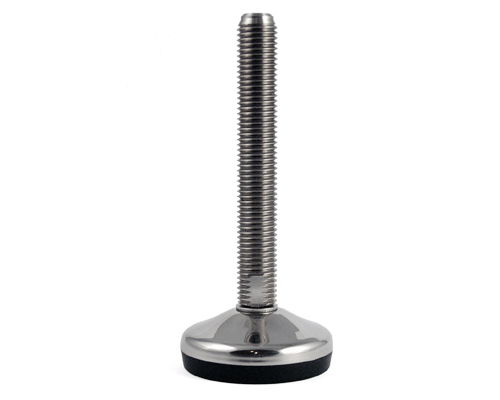

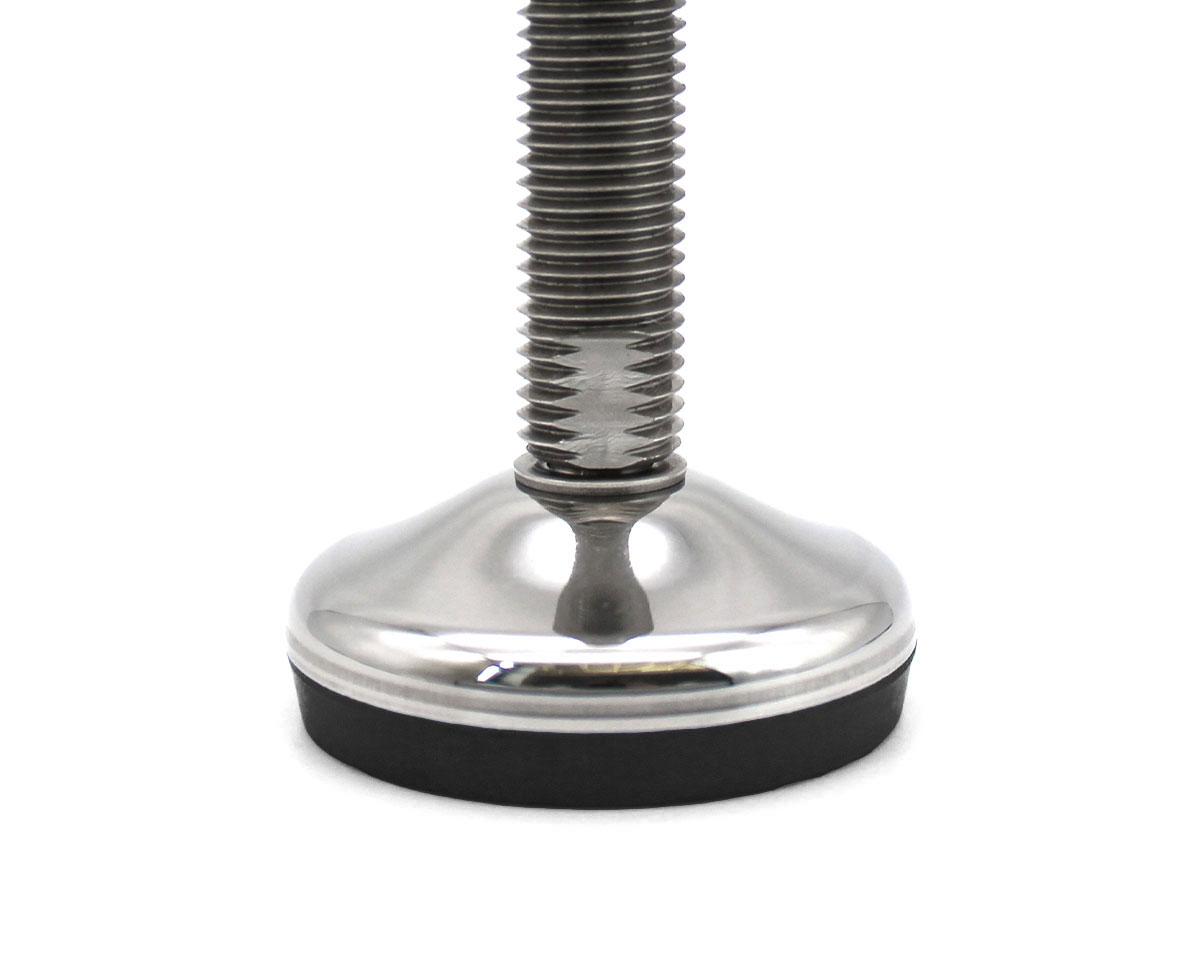

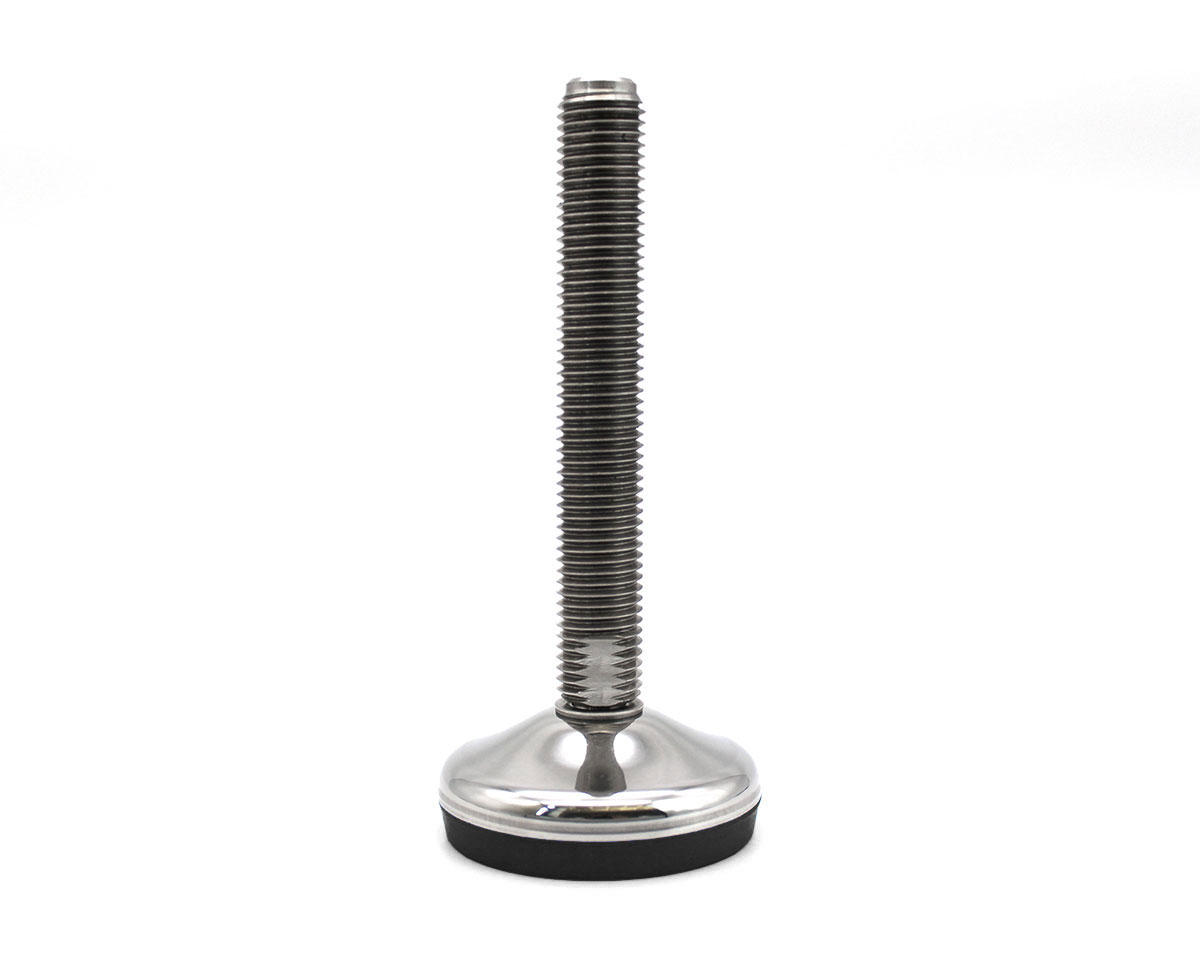

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M20 x 200 mm, NBR
Experience unmatched stability with our VULCANIZED stainless steel levelling foot, featuring a 60 mm diameter, M20 x 200 mm threaded spindle, and robust NBR anti-slip base. Accommodates static loads up to 7,000 N with a 10° adjustment angle. Ideal for precision engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€15.92*
|
| From 13 |
€14.96*
|
| From 25 |
€13.99*
|
| From 50 |
€13.32*
|
35 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
