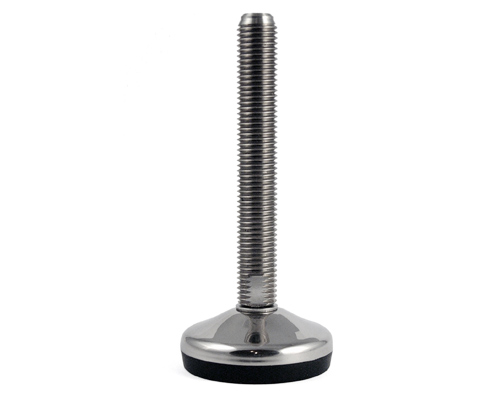

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M14 x 150 mm, NBR
Enhance stability with our VULCANIZED stainless steel leveling foot, featuring a 60 mm diameter and M14 x 150 mm threaded spindle. Designed for static loads up to 7,000 N, it offers a 10° articulation and slip-resistant NBR coating for optimal performance.
| Quantity | Price |
|---|---|
| From 1 |
€11.14*
|
| From 13 |
€10.46*
|
| From 25 |
€9.79*
|
| From 50 |
€9.32*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |

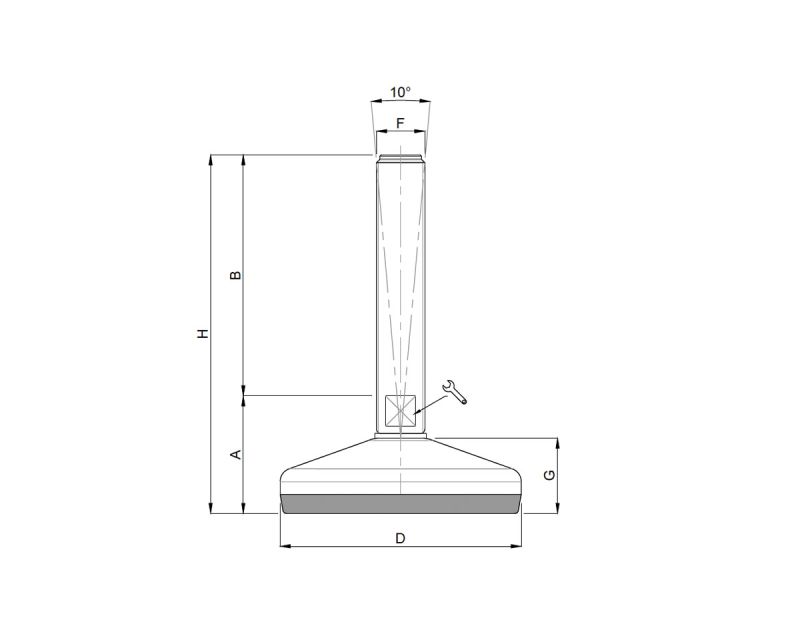

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
