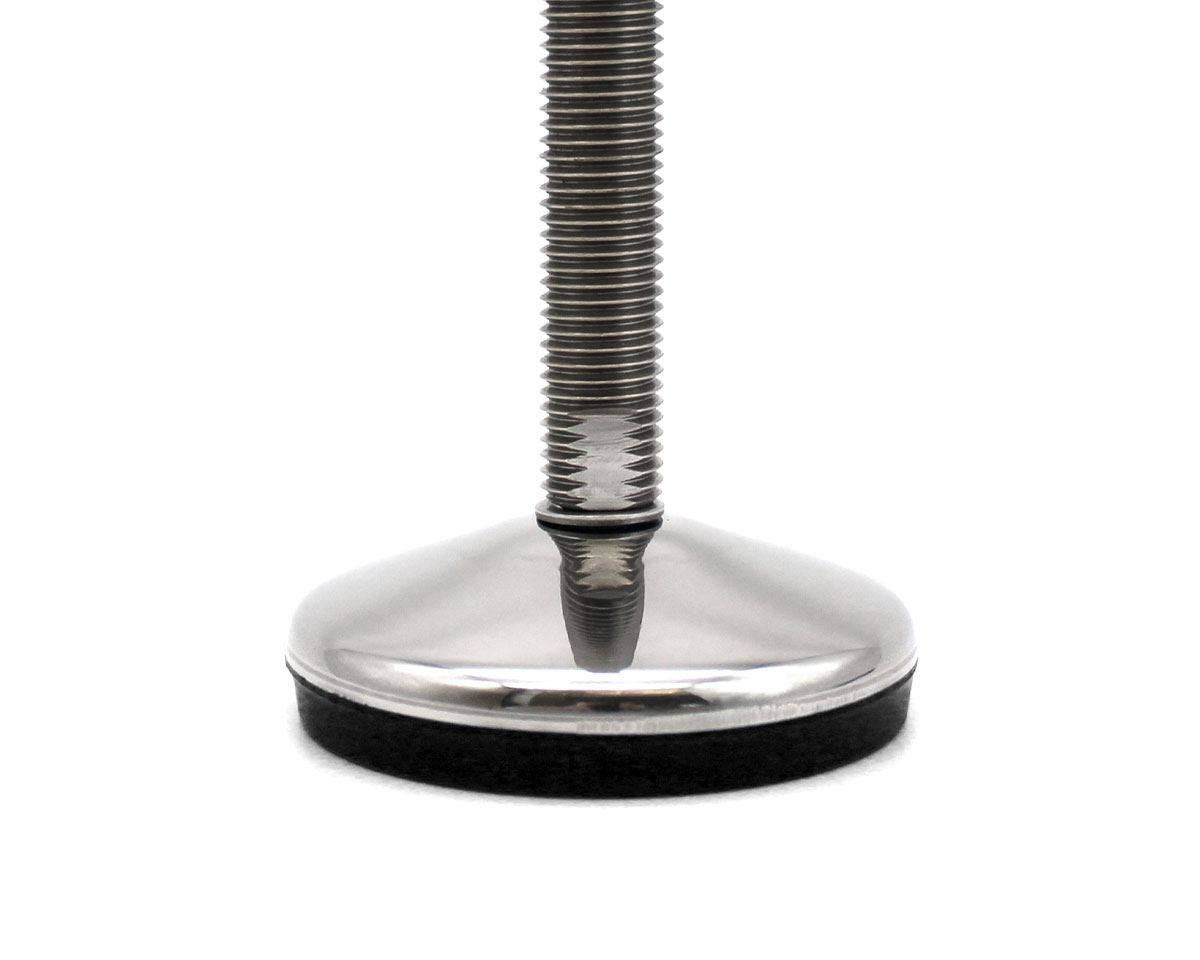

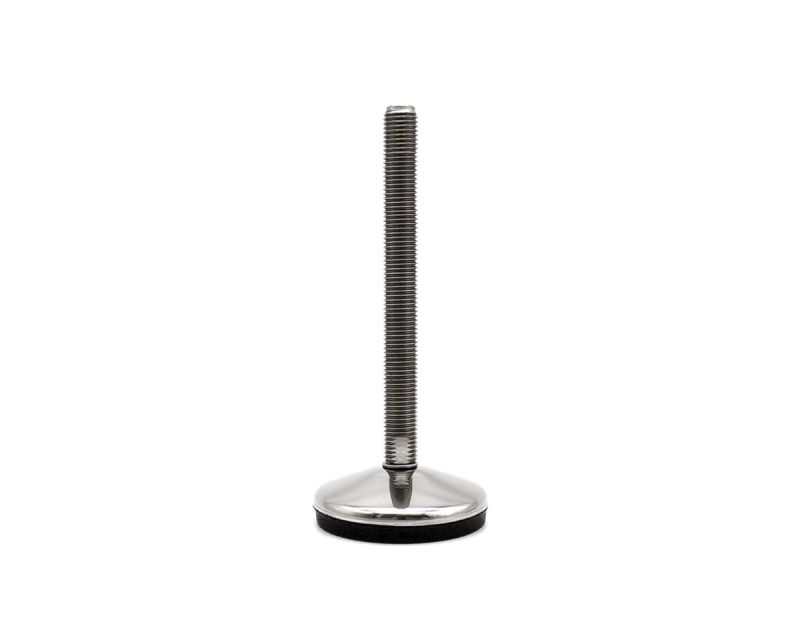

Levelling foot VULCANIZED stainless steel, Ø 80 mm Stainless steel, M20 x 300 mm, NBR
EAN
4061408096855
Type
45825052/300
Enhance stability with our VULCANIZED stainless steel levelling foot. Designed for high static loads of up to 10,000 N, it features a robust articulated screw for precise adjustments.
| Quantity | Price |
|---|---|
| From 1 |
€22.54*
|
| From 13 |
€21.17*
|
| From 25 |
€19.81*
|
| From 50 |
€18.85*
|
7 on stock, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 300 |
| Balancing angle: | 10° |

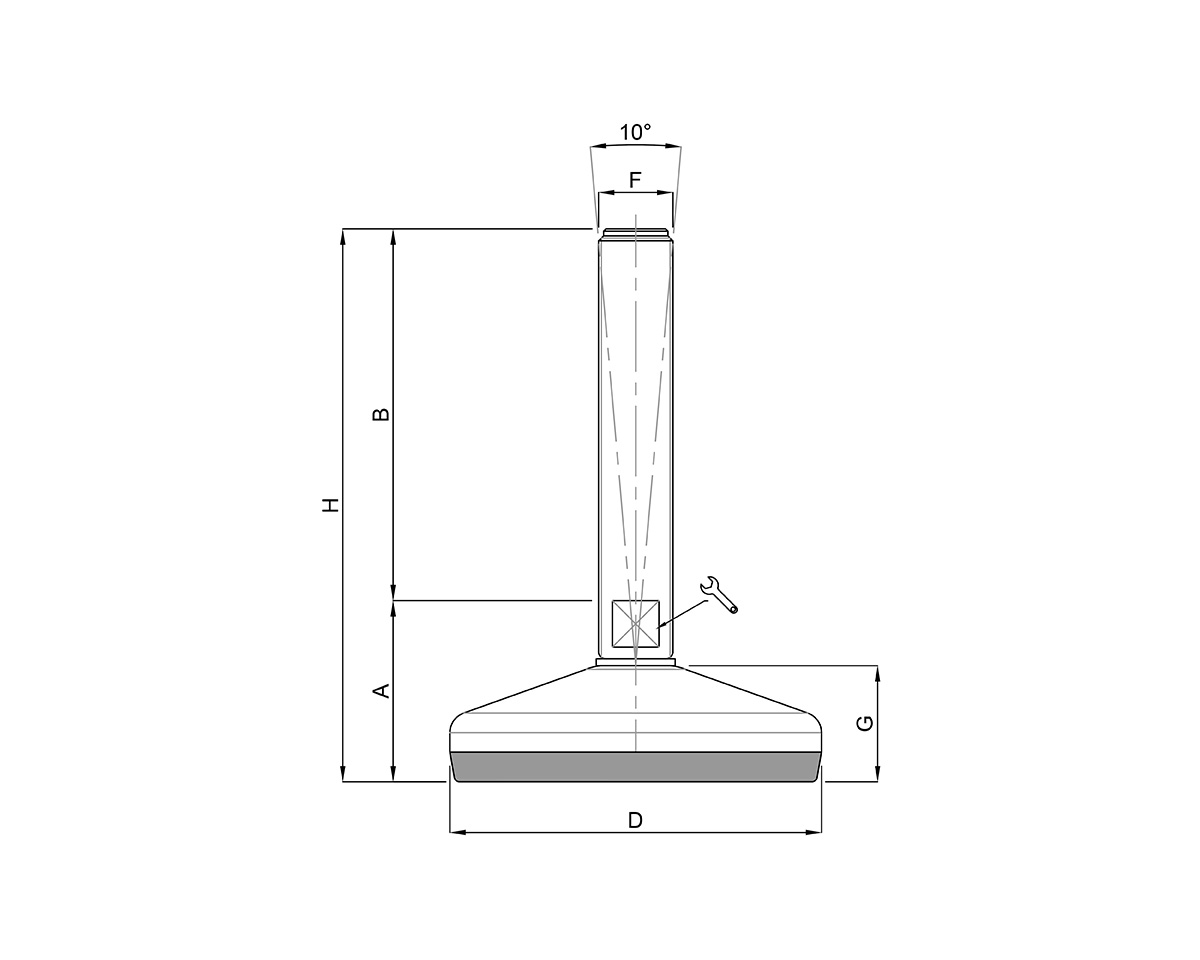

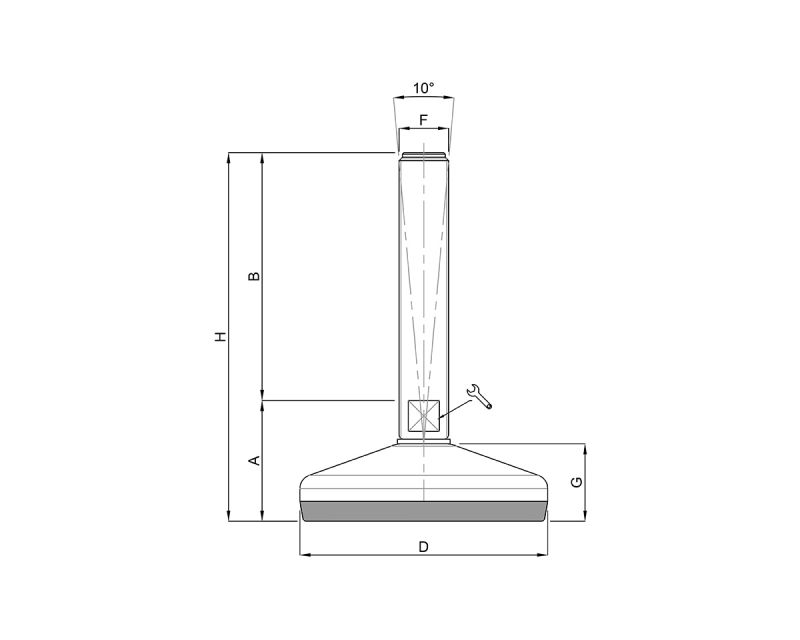

Technical drawing
Levelling foot VULCANIZED stainless steel special, Ø 80 mm Stainless steel, M20 x 300 mm, Stainlees steel, Total height 337 mm, Articulated screw 10°, Antislip NBR black, Static load 10.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
