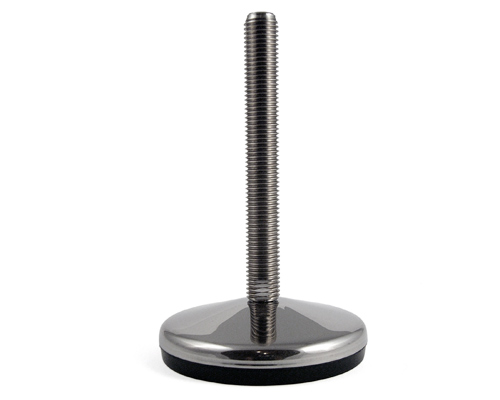

Levelling foot VULCANIZED stainless steel, Ø 120 mm, M30 x 150 mm, NBR
Discover the VULCANIZED stainless steel leveling foot, designed for robust applications. With a 120 mm base, M30 x 150 mm articulated screw, and a static load capacity of 30,000 N, it ensures stability even on uneven surfaces.
| Quantity | Price |
|---|---|
| From 1 |
€36.17*
|
| From 13 |
€33.98*
|
| From 25 |
€31.78*
|
| From 50 |
€30.25*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
