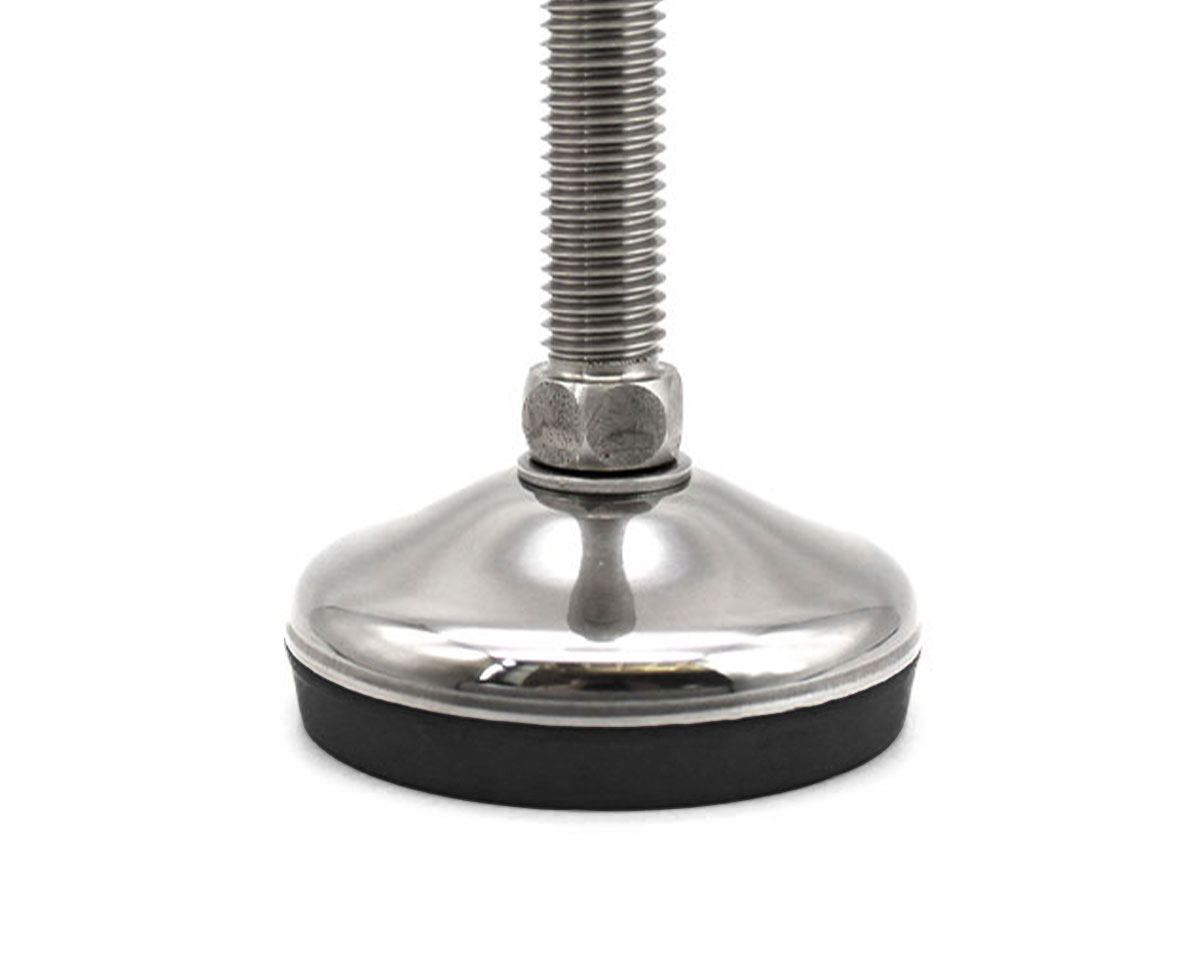

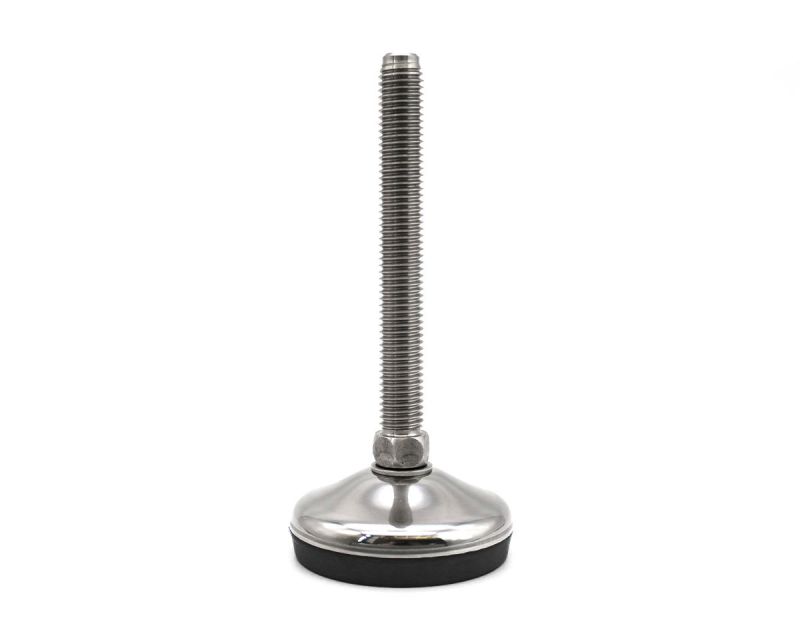

Levelling foot VULCANIZED stainless steel, Ø 50 mm, M12 x 125 mm, NBR
EAN
4061408073658
Type
45824606
The VULCANIZED stainless steel leveling foot features a 50 mm base diameter and M12 x 125 mm spindle, offering exceptional stability with a static load capacity of 4,000 N. Its anti-slip NBR construction ensures reliable support, while the articulated screw allows for a 10° adjustment, making it ideal for precise leveling in demanding industrial applications.
| Quantity | Price |
|---|---|
| From 1 |
€9.27*
|
| From 13 |
€8.71*
|
| From 25 |
€8.15*
|
| From 50 |
€7.76*
|
20 on stock, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 125 |
| Balancing angle: | 10° |
Technical drawing
Levelling foot VULCANIZED stainless steel, Ø 50 mm, M12 x 125 mm, Stainlees steel, Total height 154 mm, Articulated screw 10°, Antislip NBR black, Static load 4.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
