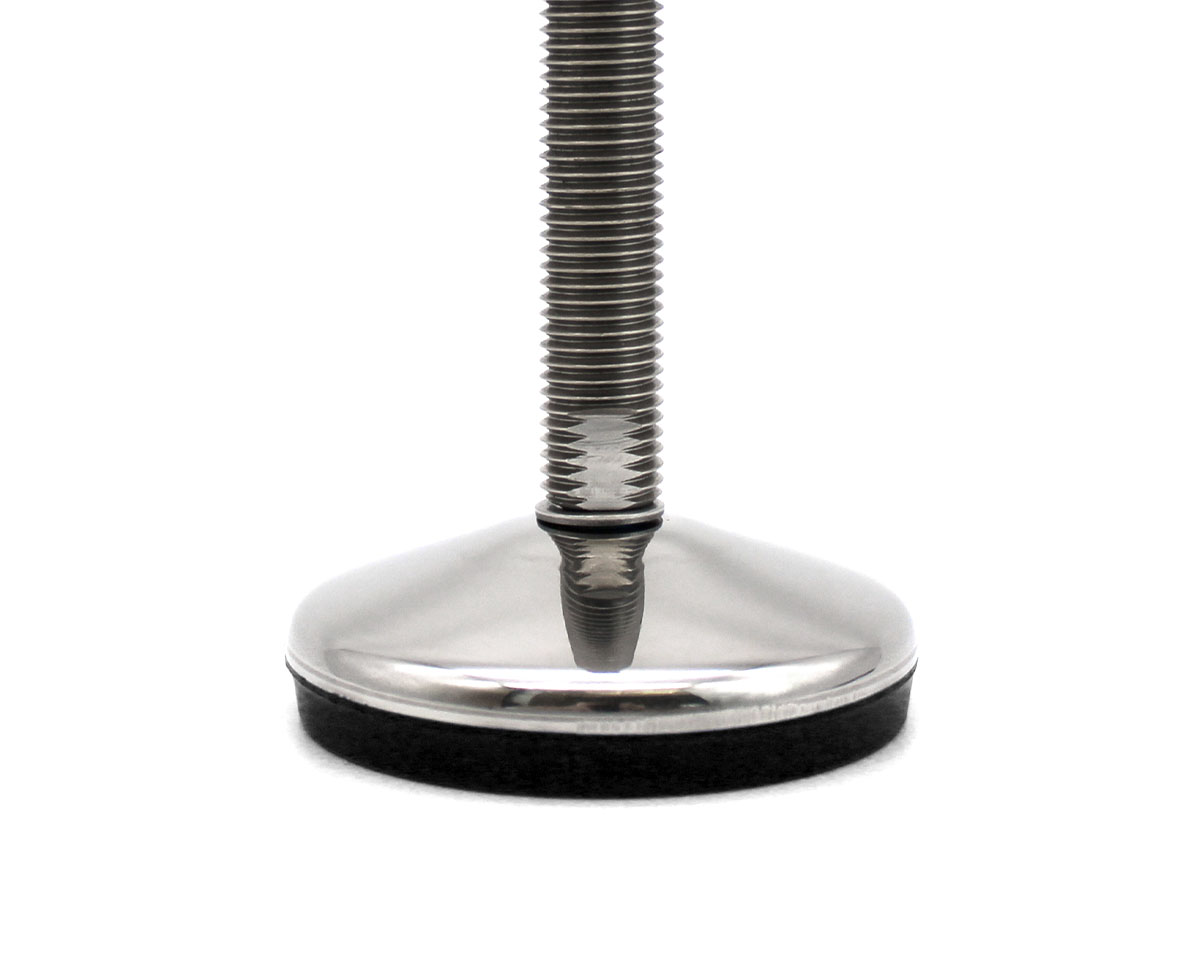

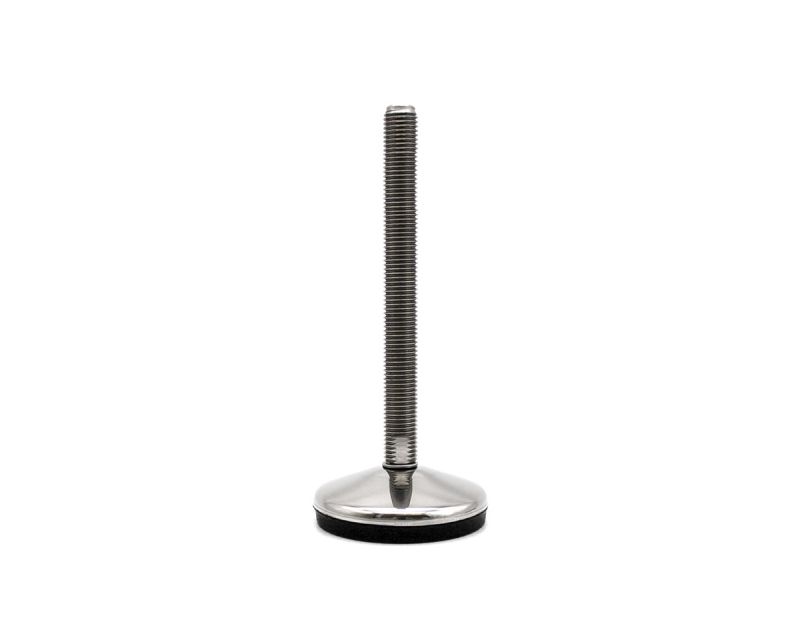

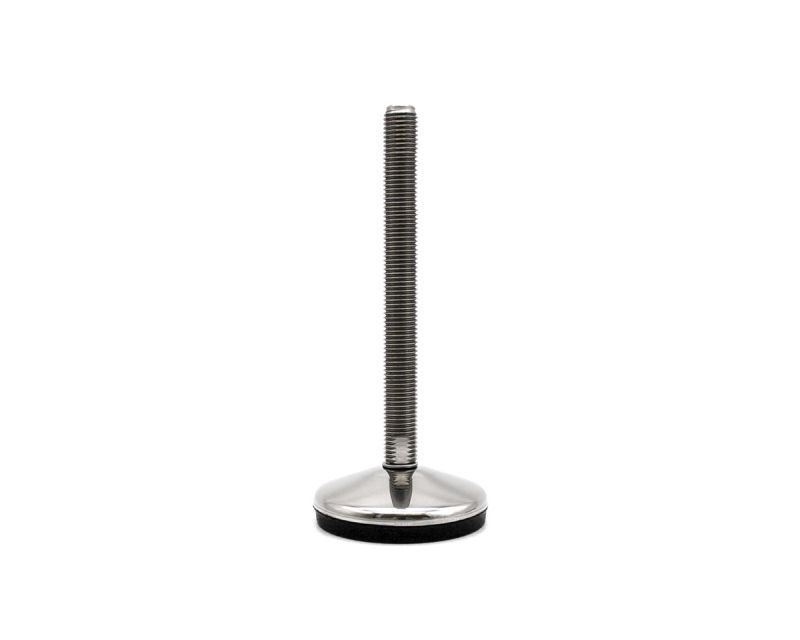

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M16 x 100 mm, NBR

EAN 4061408020478

Type 45825022

Discover our VULCANIZED stainless steel leveling foot, featuring an 80 mm diameter and an M16 x 100 mm articulated screw, designed for static loads up to 10,000 N. Perfect for precise leveling in demanding environments.

Constructed from vulcanized stainless steel, ensuring exceptional durability and corrosion resistance
Large diameter footplate (Ø 80 mm) provides excellent stability and load distribution
Capable of supporting static loads up to 10,000 N, making it suitable for heavy machinery applications
Articulated screw design allows a compensation angle of 10°, facilitating precise leveling on uneven surfaces
Anti-slip black NBR material increases friction, enhancing grip and safety in dynamic environments

Quantity	Price
From 1	€11.55*
From 13	€10.85*
From 25	€10.15*
From 50	€9.66*

*Prices excl. VAT plus shipping costs

439 on stock, Refill time: 5 days

€11.55* / piece

Our payment methods:

Accessories

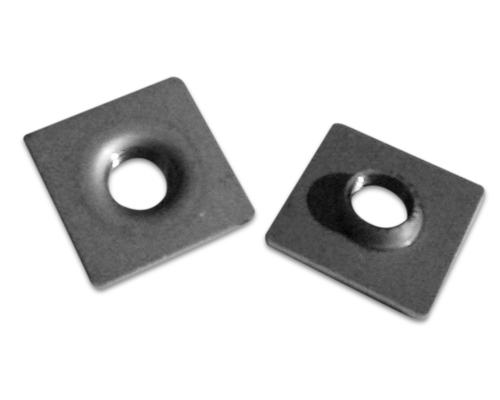

Welding plate SS M16, 35 x 35

Type No.: 458PI17490

From €2.57*

Welding plate SS M16, 40 x 40

Type No.: 458PI17500

From €2.69*

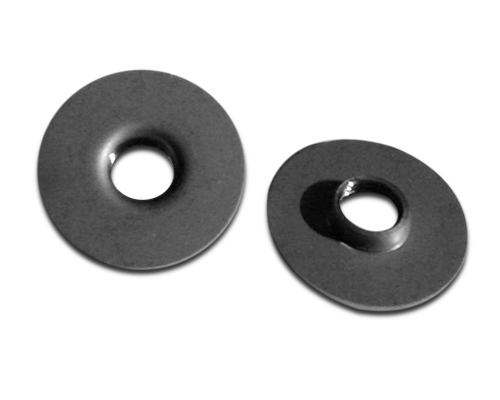

Welding plate SS, M16, Ø40

Type No.: 458PI17565

From €2.57*

Product properties

Footplate material:	Stainless steel
Anti-slip:	NBR black
Ø range base plate (mm):	71-90
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	100
Balancing angle:	10°

Product description

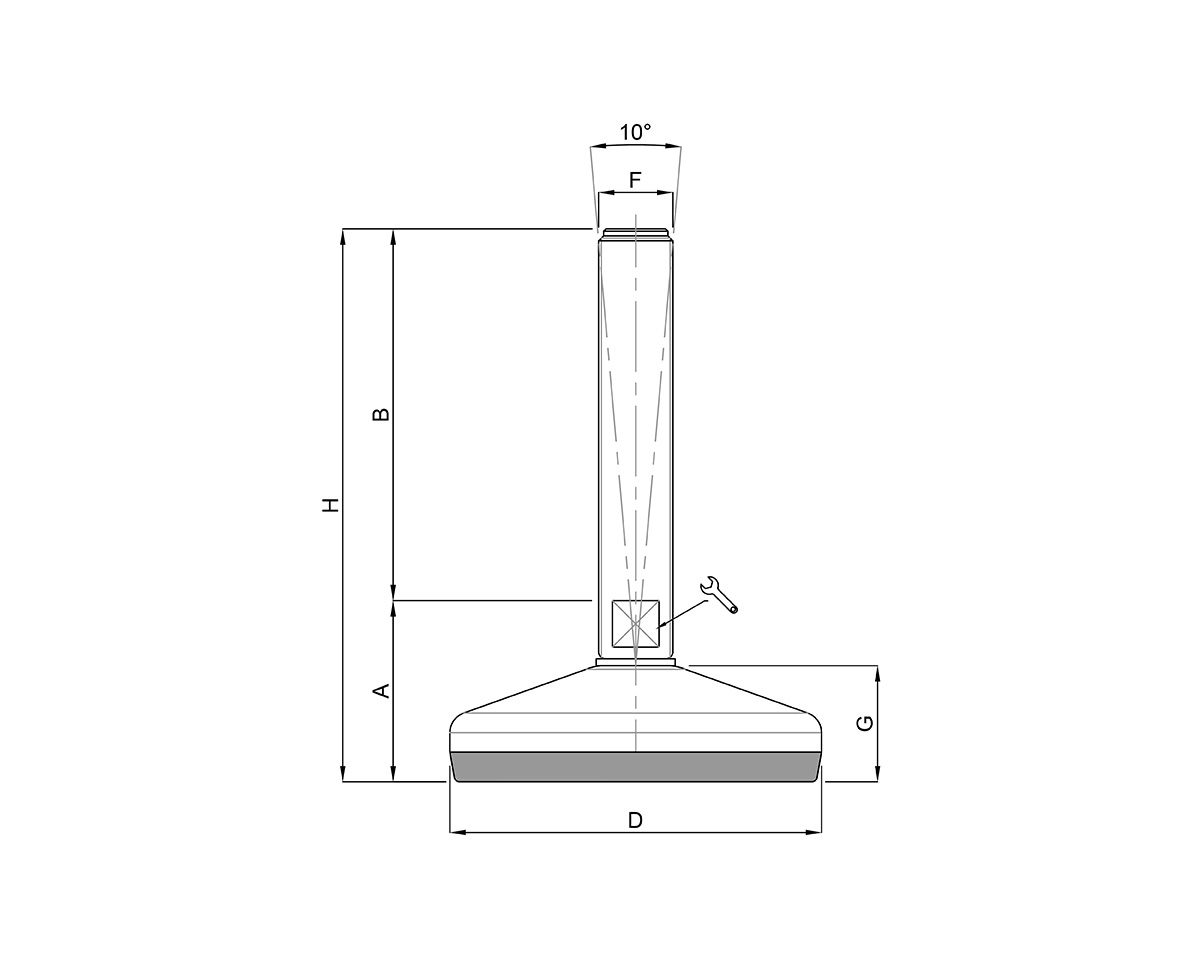

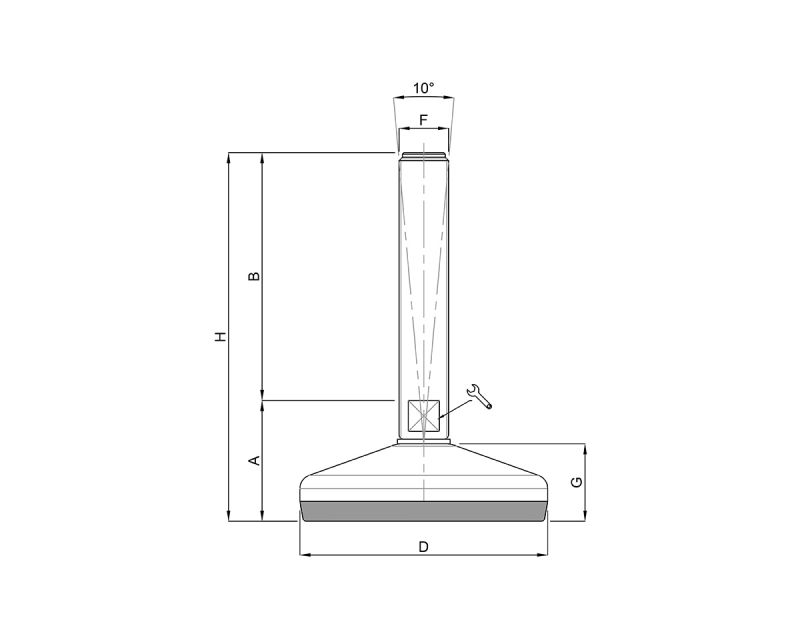

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M16 x 100 mm, Stainlees steel, Total height 138 mm, Articulated screw 10°, Antislip NBR black, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
