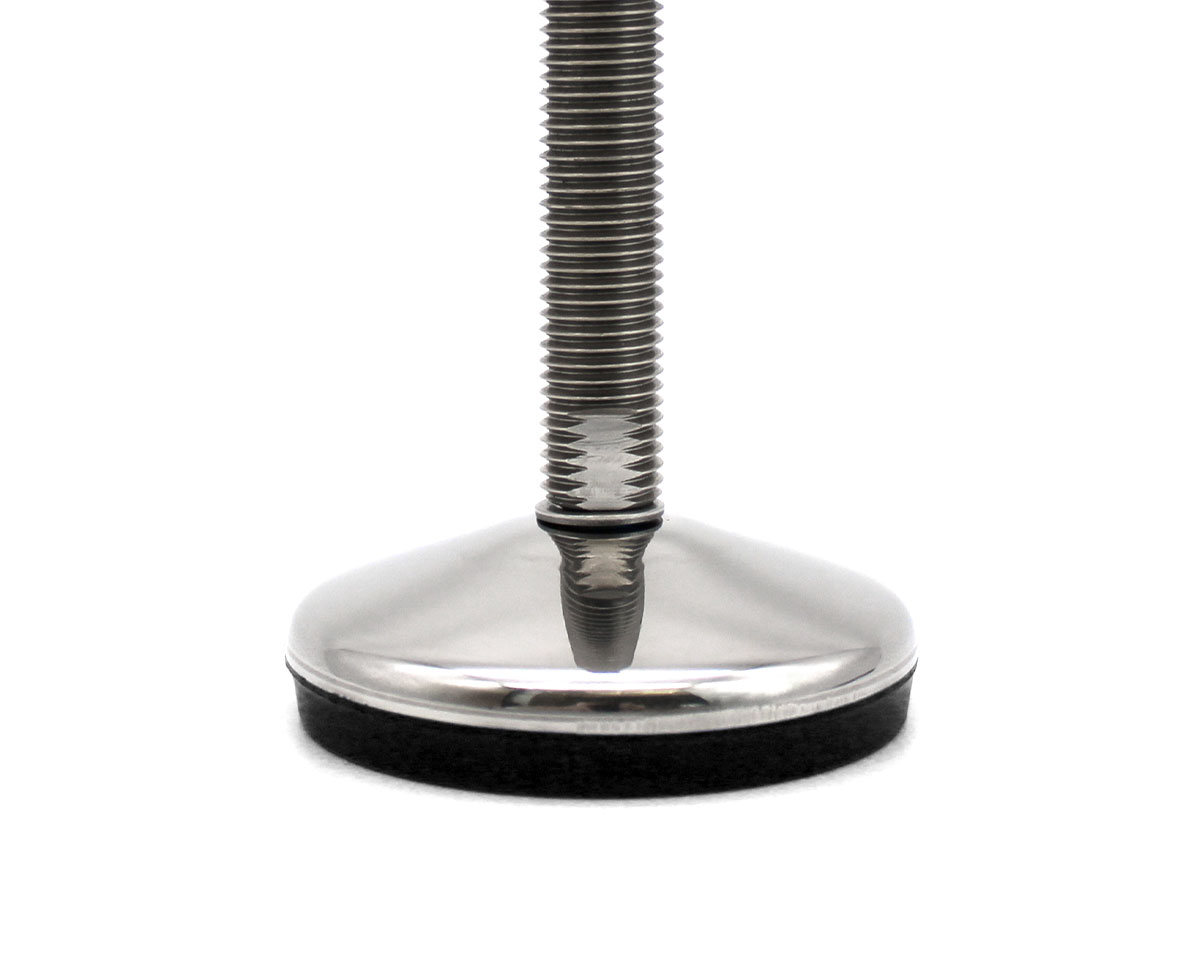

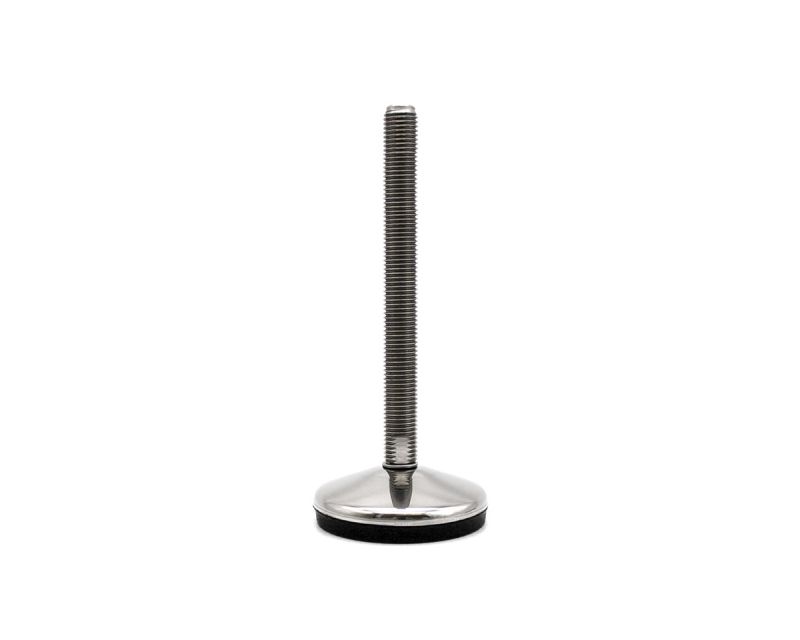

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M24 x 100 mm, NBR
EAN
4061408016150
Type
45825072
Discover the VULCANIZED stainless steel levelling foot, featuring an 80 mm diameter, M24 x 100 mm threaded spindle, and a robust NBR anti-slip design. Supports up to 10,000 N with a 10° adjustment angle.
| Quantity | Price |
|---|---|
| From 1 |
€17.31*
|
| From 13 |
€16.26*
|
| From 25 |
€15.21*
|
| From 50 |
€14.48*
|
18 on stock, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |

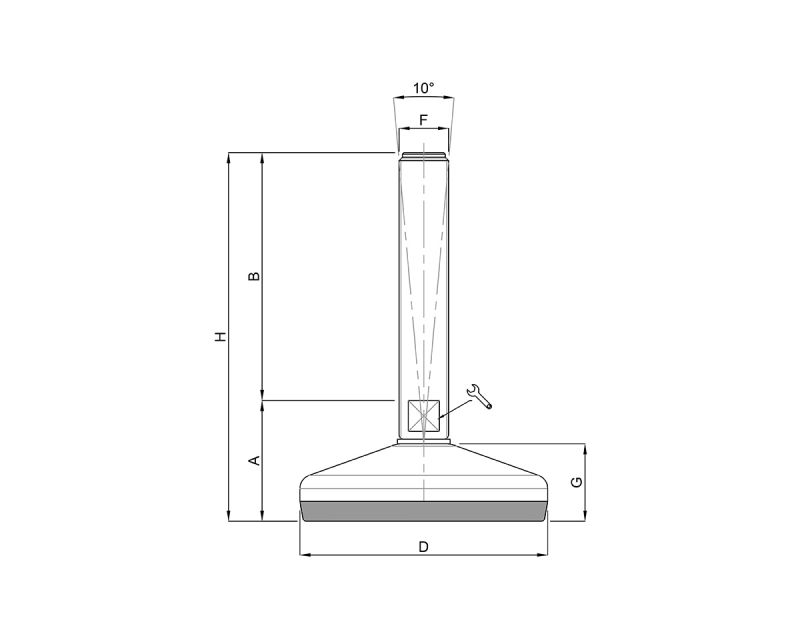

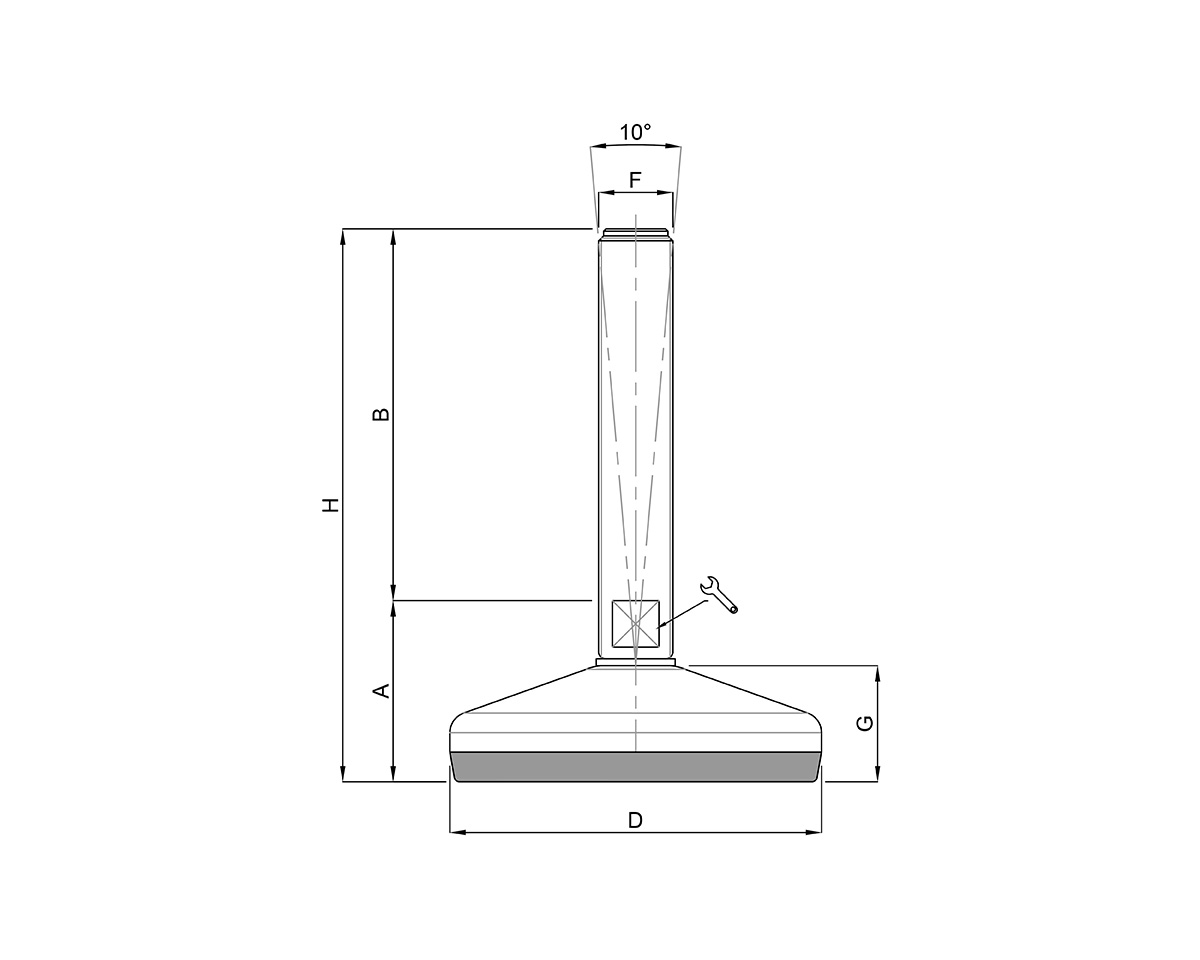

Technical drawing
Levelling foot VULCANIZED stainless steel, Ø 80 mm, M24 x 100 mm, Stainlees steel, Total height 140 mm, Articulated screw 10°, Antislip NBR black, Static load 10.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
