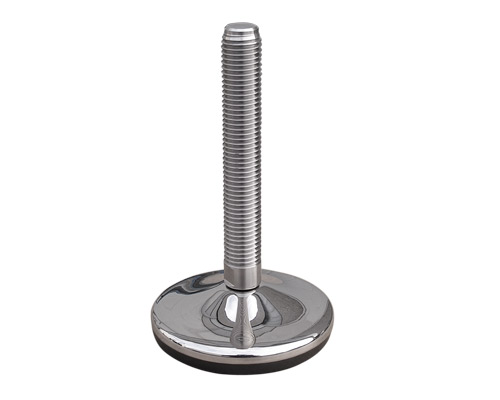

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M30 x 200 mm, NBR
Introducing our VULCANIZED stainless steel leveling foot, designed for precision support with a 100 mm diameter base and an articulated screw for 10° adjustment. With a robust static load capacity of 15,000 N, it ensures stability and reliability for your engineering needs.
| Quantity | Price |
|---|---|
| From 1 |
€30.79*
|
| From 13 |
€28.92*
|
| From 25 |
€27.06*
|
| From 50 |
€25.75*
|
8 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |

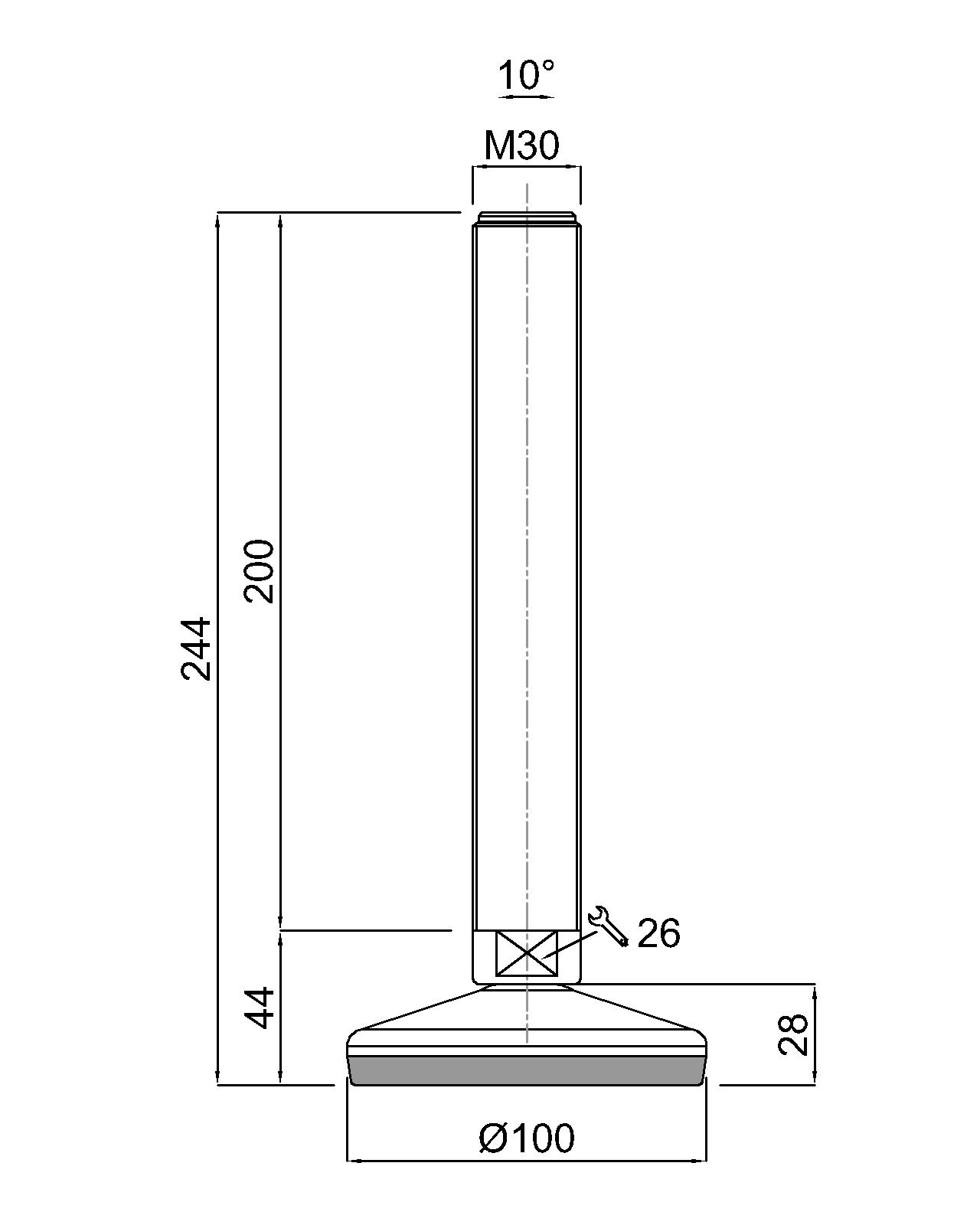

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
