Levelling foot VULCANIZED stainless steel, Ø 80 mm, M24 x 75 mm, 2 Lugs, NBR
Optimize your machinery's stability with our VULCANIZED stainless steel levelling foot. Featuring a robust construction, 10° articulation, and superior anti-slip NBR, it supports loads up to 10,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€21.55*
|
| From 13 |
€20.24*
|
| From 25 |
€18.94*
|
| From 50 |
€18.02*
|
Currently sold out, Refill time: 5 days
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 2 mounting lugs |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 75 |
| Balancing angle: | 10° |
| Hygiene: | No |

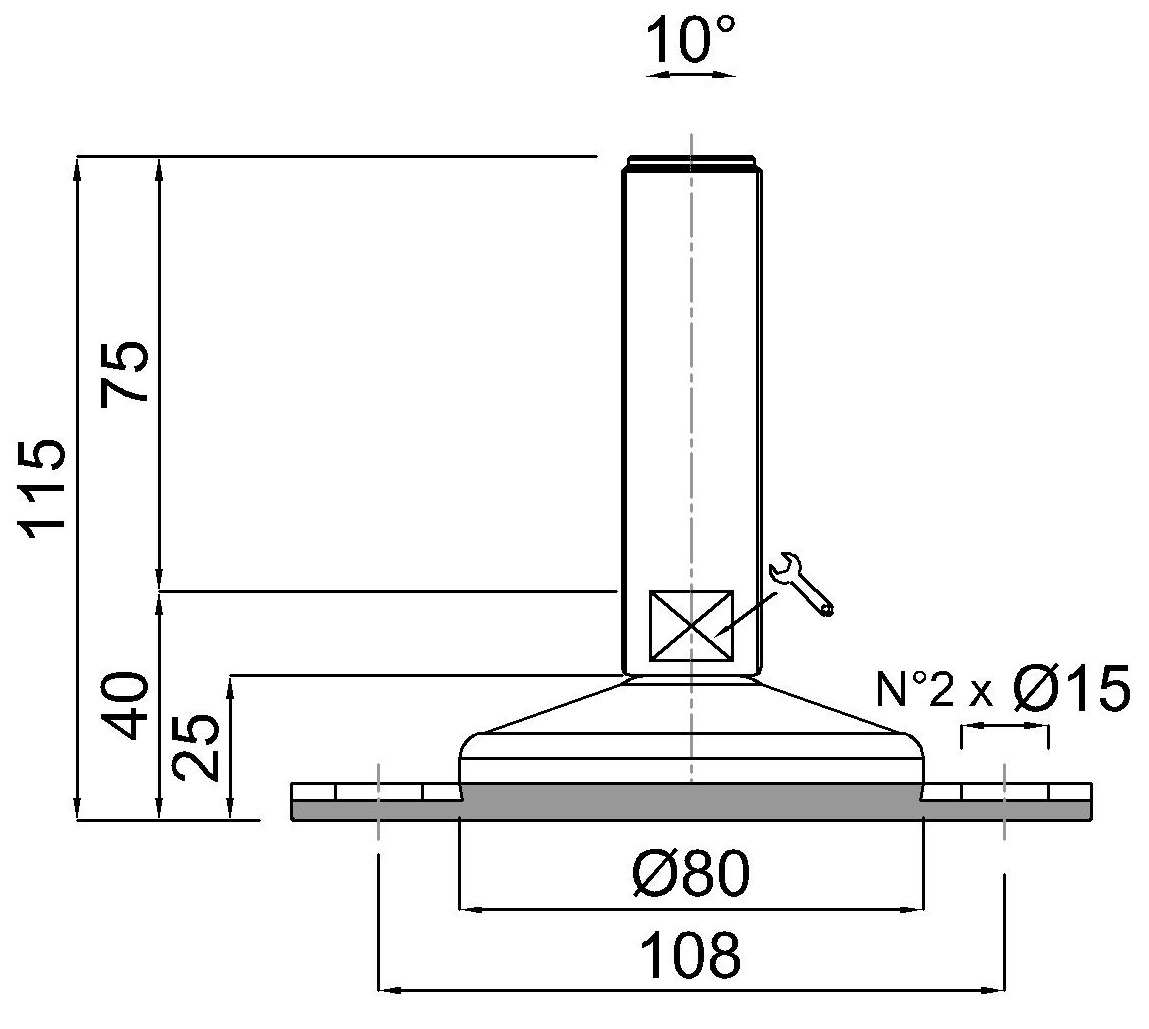

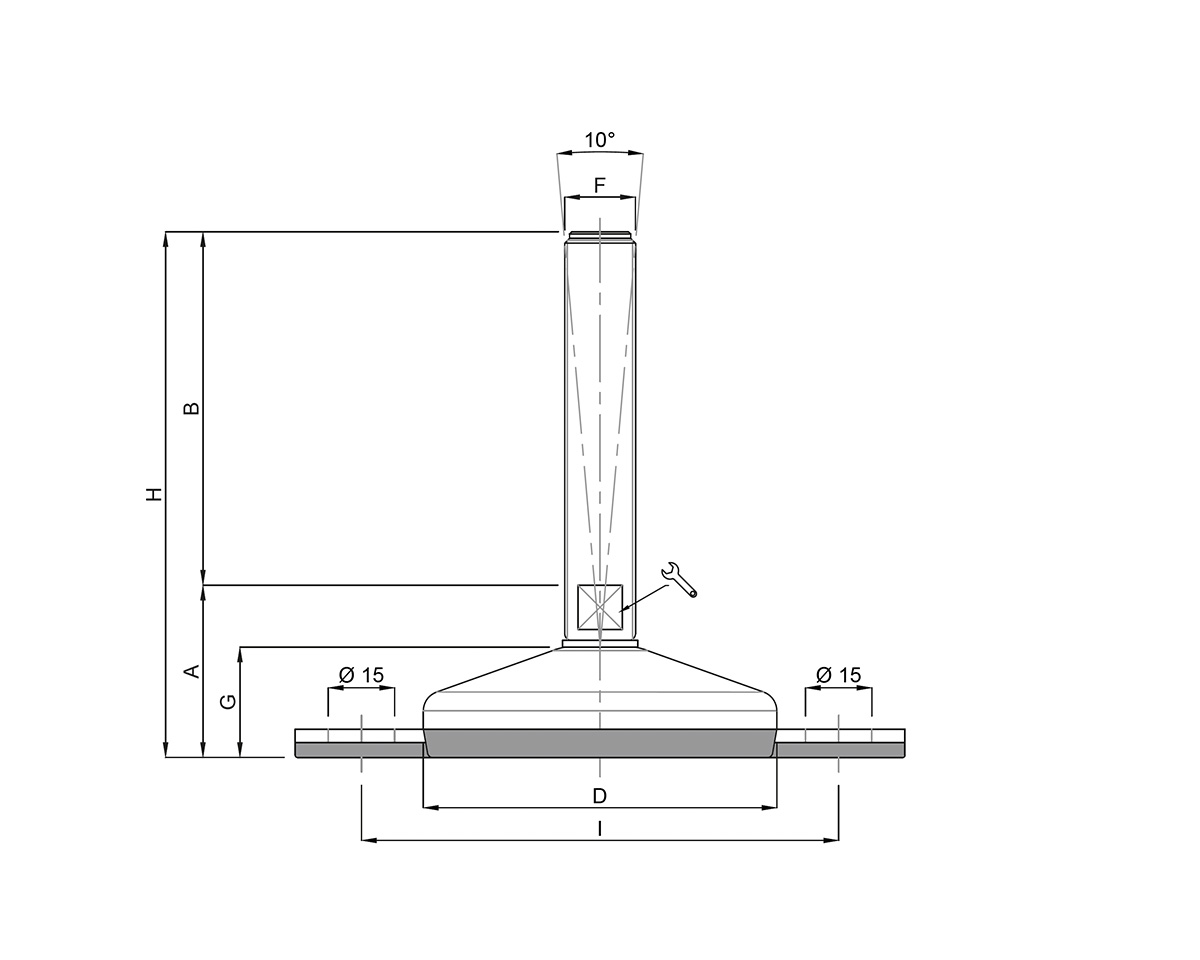

Technical drawing
VULCANIZED stainless steel levelling feet with an 80 mm foot plate provide stable support for machinery. The black NBR pad helps prevent slipping, and the rounded shape is easy to clean.
The threaded spindle allows height adjustment. Two lugs provide floor fixing, while the integrated rubber buffer helps maintain stable support.
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
