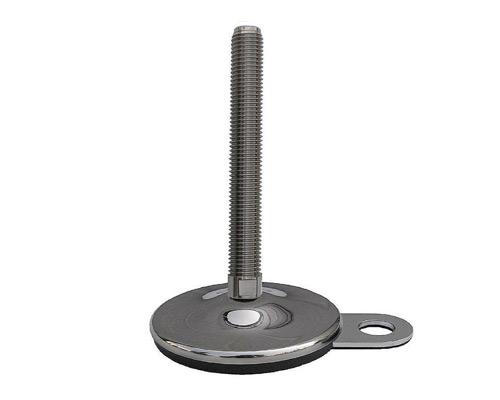

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M30x2 x 200 mm, Lug, NBR
Experience unmatched stability with our VULCANIZED stainless steel leveling foot, featuring a Ø 100 mm footplate and a robust M30x2 screw. With a static load capacity of 15,000 N and NBR anti-slip properties, it ensures reliable support in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€39.02*
|
| From 13 |
€36.66*
|
| From 25 |
€34.29*
|
| From 50 |
€32.64*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 1 mounting lug |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 200 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
