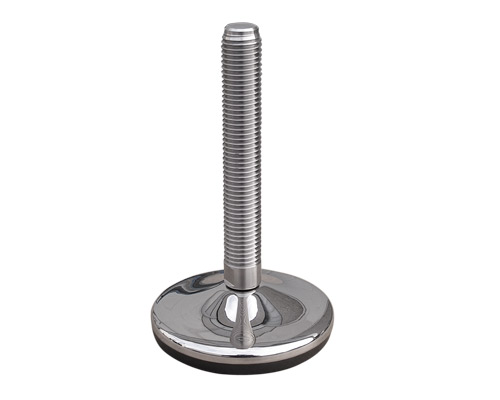

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M24x2 x 200 mm, NBR
The VULCANIZED stainless steel leveling foot features a 100 mm diameter and a robust M24x2 thread. With a total height of 244 mm and a static load capacity of 15,000 N, it ensures stability even at a 10° angle, and the black NBR anti-slip design provides enhanced grip. Ideal for demanding industrial applications.
Quantity | Price |
---|---|
From 1 |
€30.06*
|
From 13 |
€28.24*
|
From 25 |
€26.42*
|
From 50 |
€25.14*
|
Currently sold out, Refill time: 5 days
Product properties
Footplate material: | Stainless steel |
Anti-slip: | NBR black |
Ø range base plate (mm): | 91-110 |
Material spindle: | Stainless steel |
Ø spindle (mm): | 24 |
Spindle length (mm): | 200 |
Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
