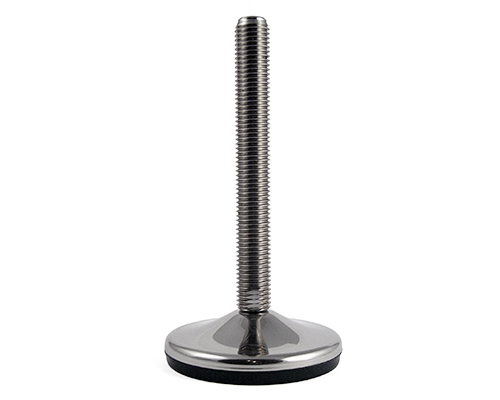

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M12 x 100 mm, NBR
Discover our VULCANIZED stainless steel leveling foot, featuring an 80 mm diameter and M12 x 100 mm threaded spindle. Designed for superior stability and durability, it supports static loads up to 10,000 N with a 10° articulated adjustment. Ideal for precise alignment in demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€12.34*
|
| From 13 |
€11.59*
|
| From 25 |
€10.85*
|
| From 50 |
€10.32*
|
17 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
