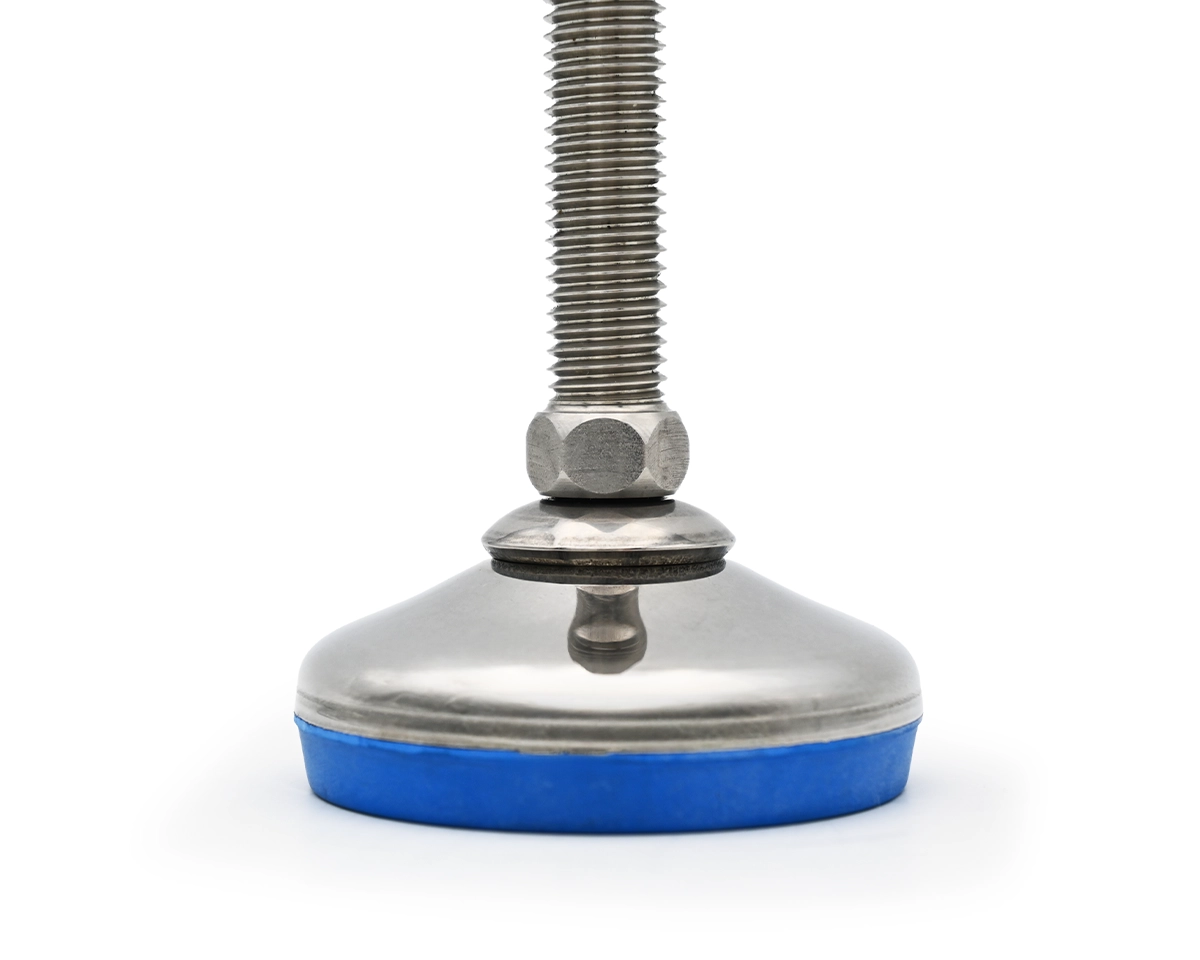

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M14 x 75 mm, Hygenic, EPDM
EAN
4061408134939
Type
45824710RB
Discover our VULCANIZED stainless steel levelling foot, featuring a 60 mm diameter and M14 x 75 mm spindle. Designed for hygiene and stability, it supports up to 7,000 N with a 10° articulate adjustment.
| Quantity | Price |
|---|---|
| From 1 |
€11.13*
|
| From 13 |
€10.45*
|
| From 25 |
€9.77*
|
| From 50 |
€9.29*
|
Currently sold out, Refill time: 8 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 51-70 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 75 |
| Balancing angle: | 10° |
Technical drawing
Levelling foot VULCANIZED stainless steel, Ø 60 mm, M14 x 75 mm, Stainlees steel, Total height 110 mm, Articulated screw 10°, Hygienic washer, Antislip EPDM blue, Static load 7.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
