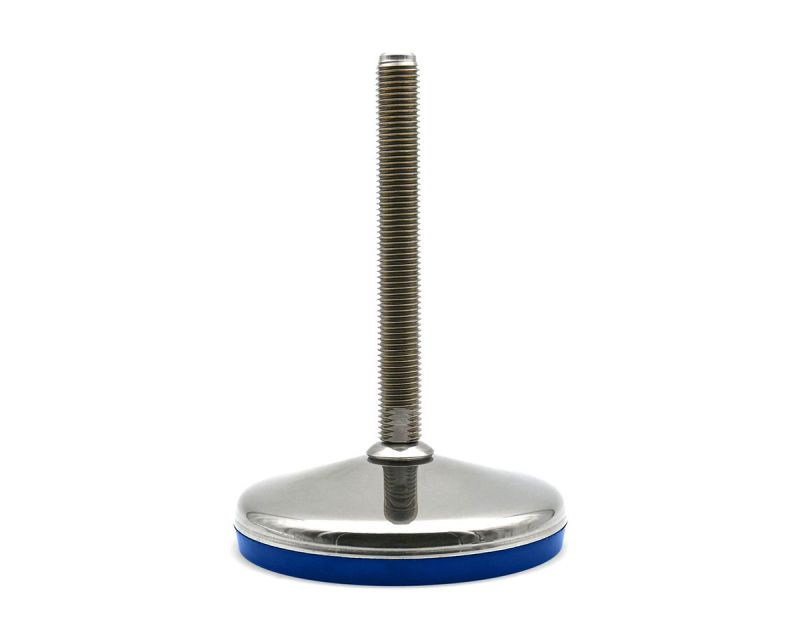

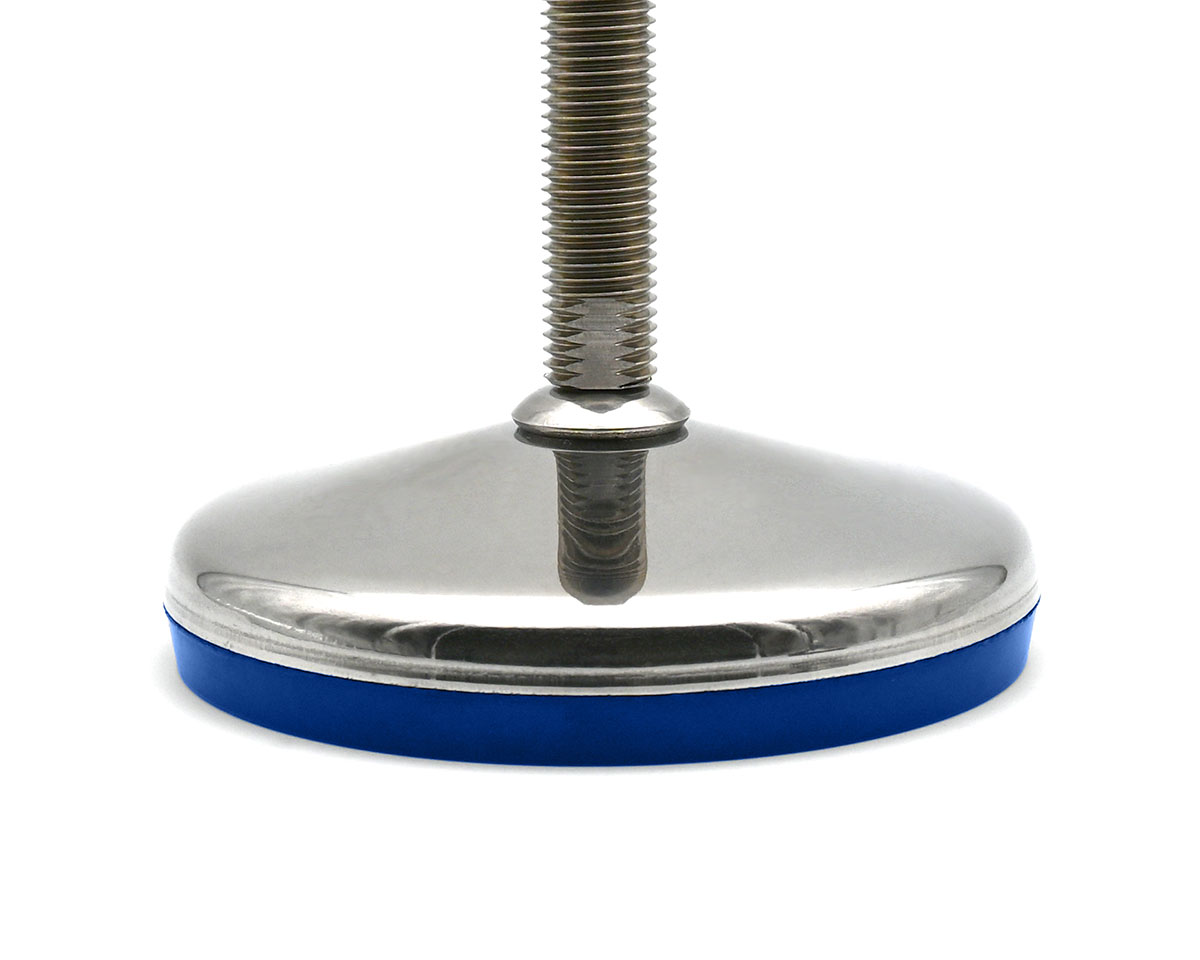

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M30 x 125 mm, Hygenic, EPDM
EAN
4061408132805
Type
45825182RB
Discover the VULCANIZED stainless steel leveling foot, featuring a Ø 100 mm base and M30 x 125 mm spindle. Designed for hygiene and stability, it supports a static load of 15,000 N, ensuring reliable performance in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€28.93*
|
| From 13 |
€27.16*
|
| From 25 |
€25.38*
|
| From 50 |
€24.14*
|
Currently sold out, Refill time: 8 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 125 |
| Balancing angle: | 10° |

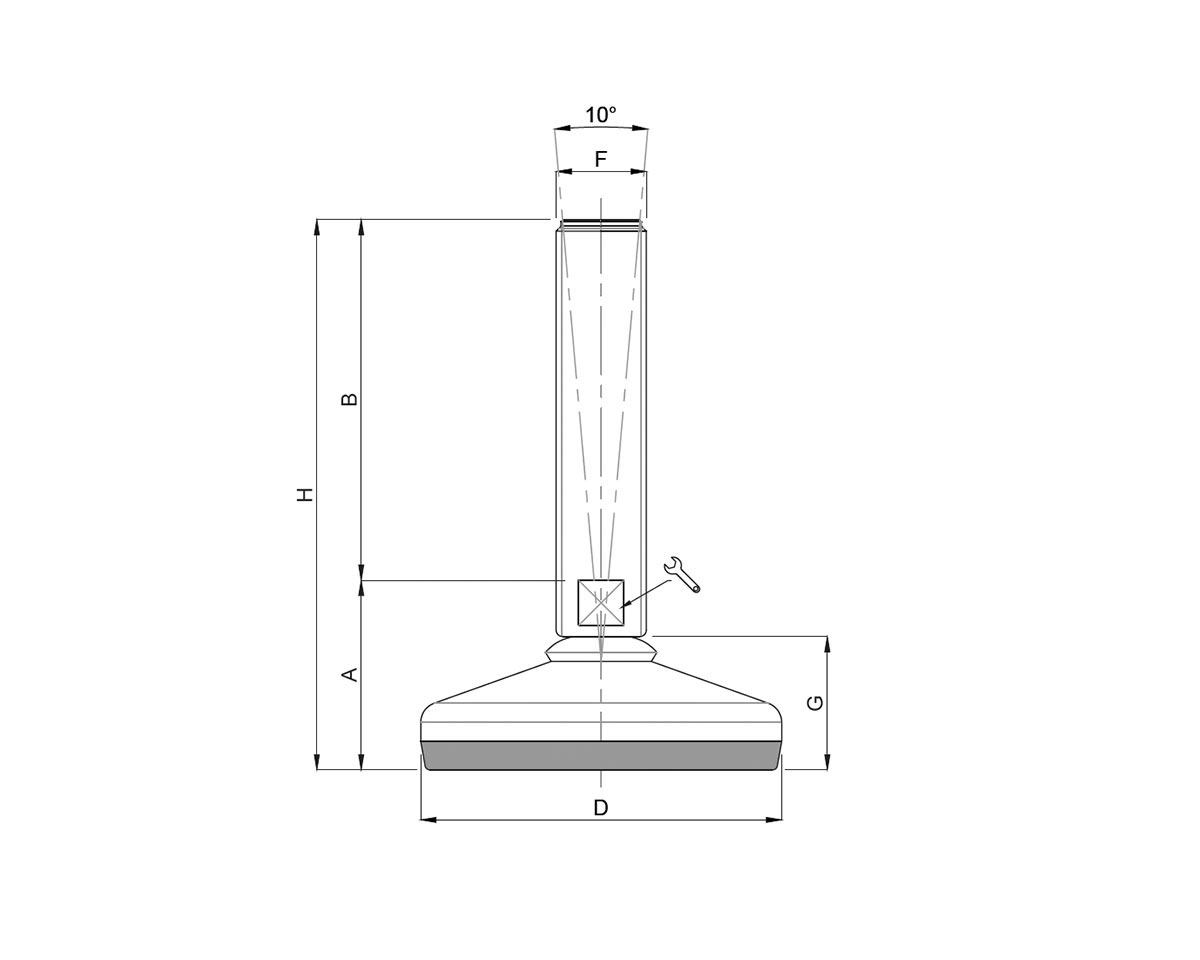

Technical drawing
Levelling foot VULCANIZED stainless steel, Ø 100 mm, M30 x 125 mm, Stainlees steel, Total height 173 mm, Articulated screw 10°, Hygienic washer, Antislip EPDM blue, Static load 15.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
