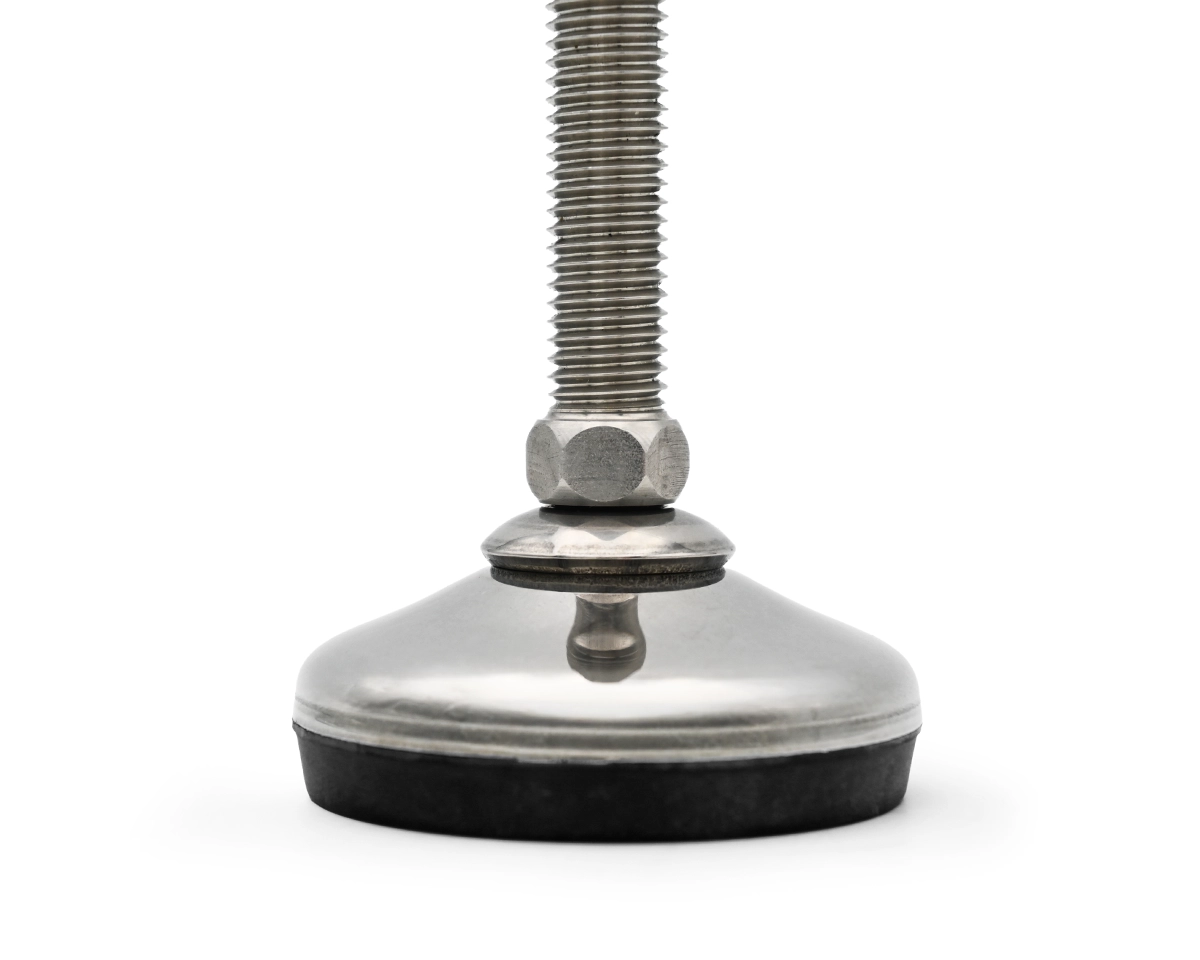

Levelling foot VULCANIZED stainless steel, Ø 50 mm, M14 x 175 mm, Hygenic, NBR
EAN
4061408132508
Type
45824708R
Discover our VULCANIZED Stainless Steel Leveling Foot, designed for precision engineering. With a durable 50mm base and 175mm adjustable spindle, it supports a static load of 4000N, ensuring stability in hygienic applications.
| Quantity | Price |
|---|---|
| From 1 |
€10.82*
|
| From 13 |
€10.17*
|
| From 25 |
€9.51*
|
| From 50 |
€9.05*
|
Currently sold out, Refill time: 8 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 41-50 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 175 |
| Balancing angle: | 10° |
Technical drawing
Levelling foot VULCANIZED stainless steel, Ø 50 mm, M14 x 175 mm, Stainlees steel, Total height 207 mm, Articulated screw 10°, Hygienic washer, Antislip NBR black, Static load 4.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
