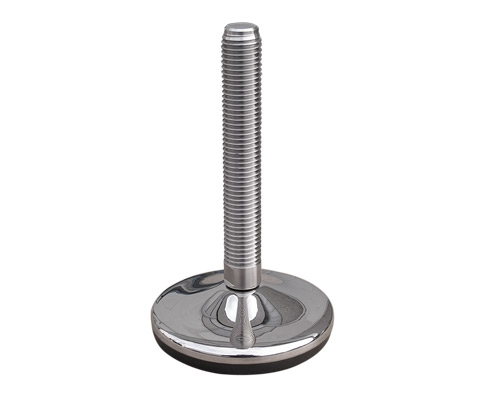

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M20 x 100 mm, NBR
Ensure optimal stability with our VULCANIZED stainless steel leveling foot, featuring a 100 mm diameter and M20 x 100 mm thread. Designed for static loads up to 15,000 N, it includes an articulated screw for 10° adjustment and an anti-slip NBR surface.
| Quantity | Price |
|---|---|
| From 1 |
€15.64*
|
| From 13 |
€14.69*
|
| From 25 |
€13.75*
|
| From 50 |
€13.08*
|
260 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 100 |
| Balancing angle: | 10° |

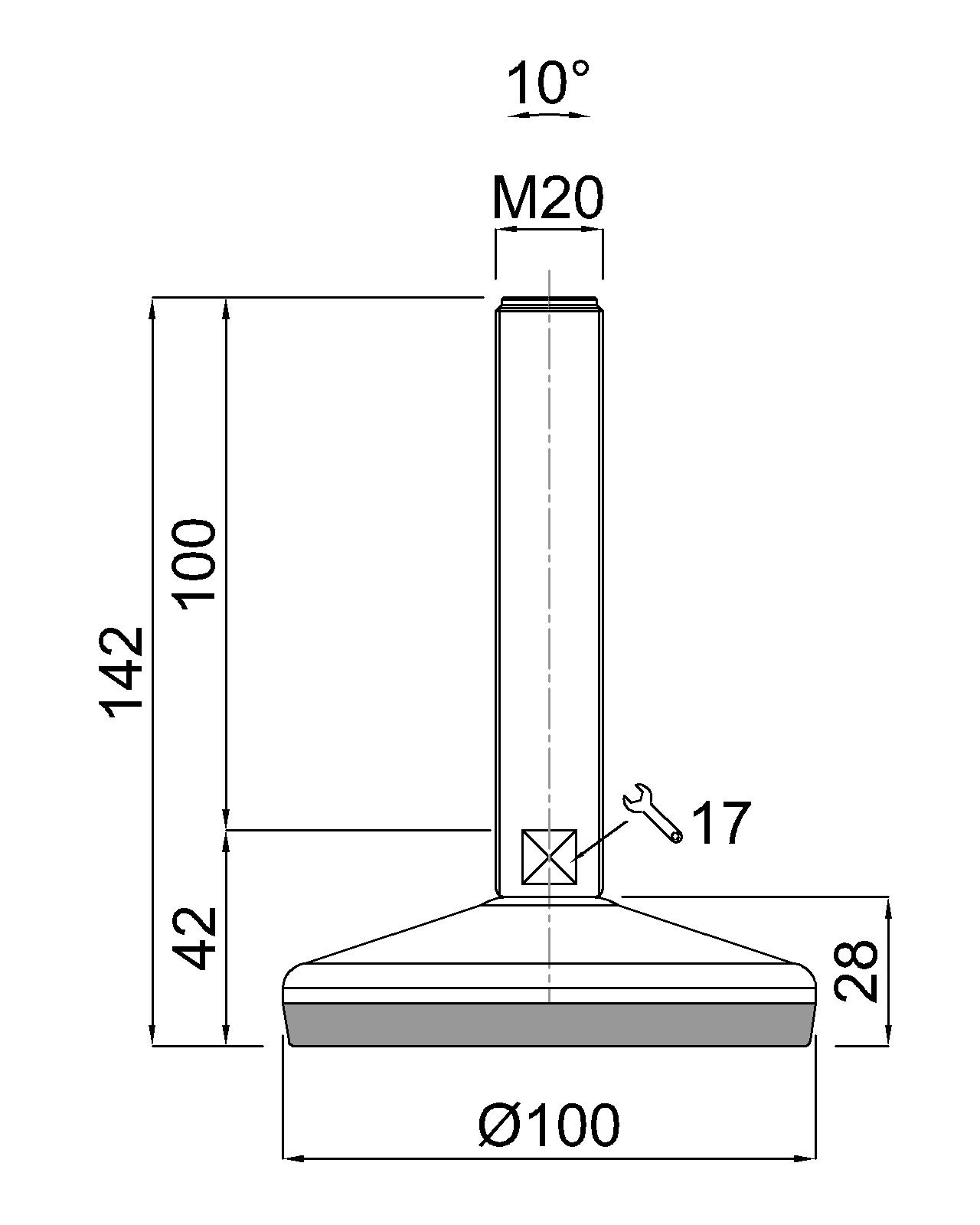

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
