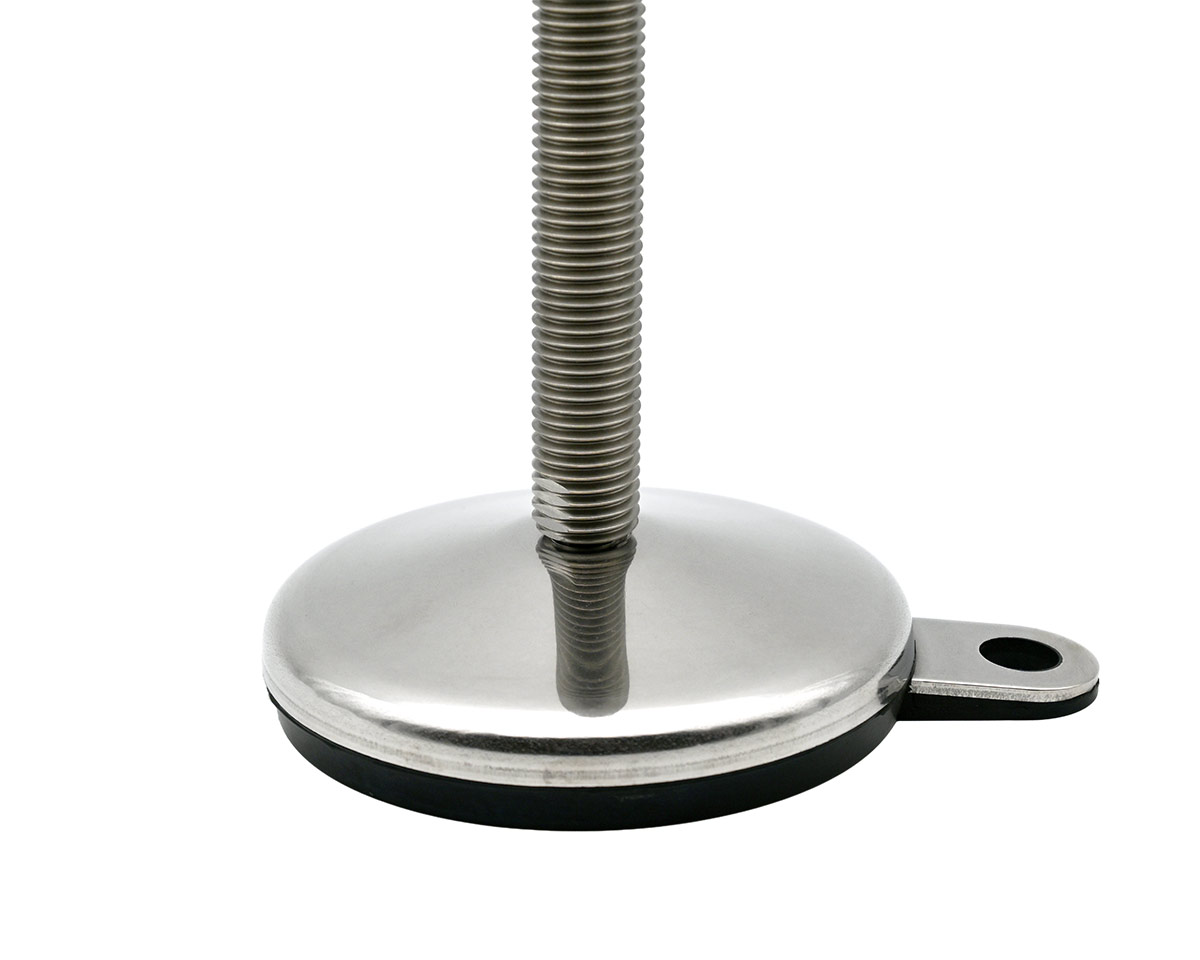

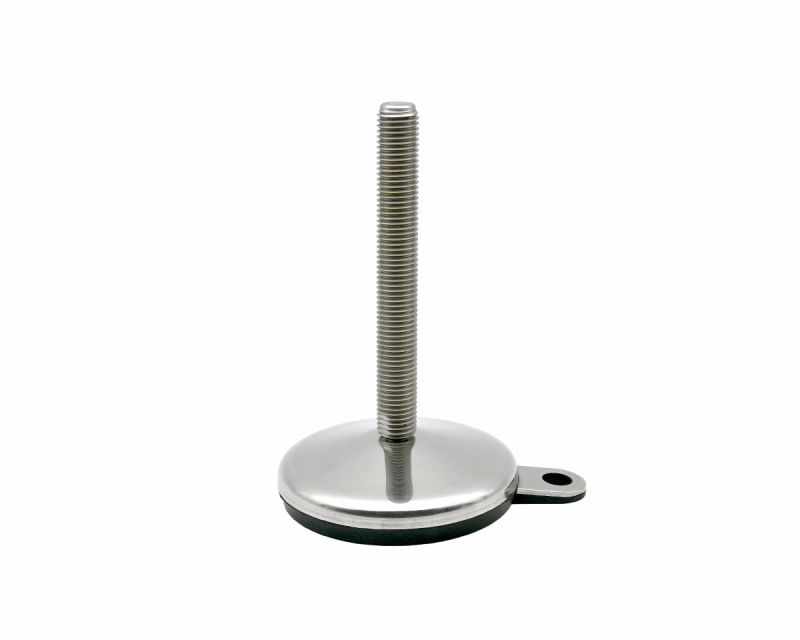

Levelling foot VULCANIZED stainless steel, Ø 120 mm, M20 x 150 mm, Lug, NBR
EAN
4061408141173
Type
45825268/F
Discover our VULCANIZED stainless steel levelling foot, designed for exceptional stability with a static load capacity of 30,000 N. Ideal for precise adjustments, featuring an articulated screw for 10° angle compensation and NBR anti-slip surface.
| Quantity | Price |
|---|---|
| From 1 |
€27.72*
|
| From 13 |
€26.04*
|
| From 25 |
€24.36*
|
| From 50 |
€23.18*
|
23 on stock, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
| Hygiene: | No |

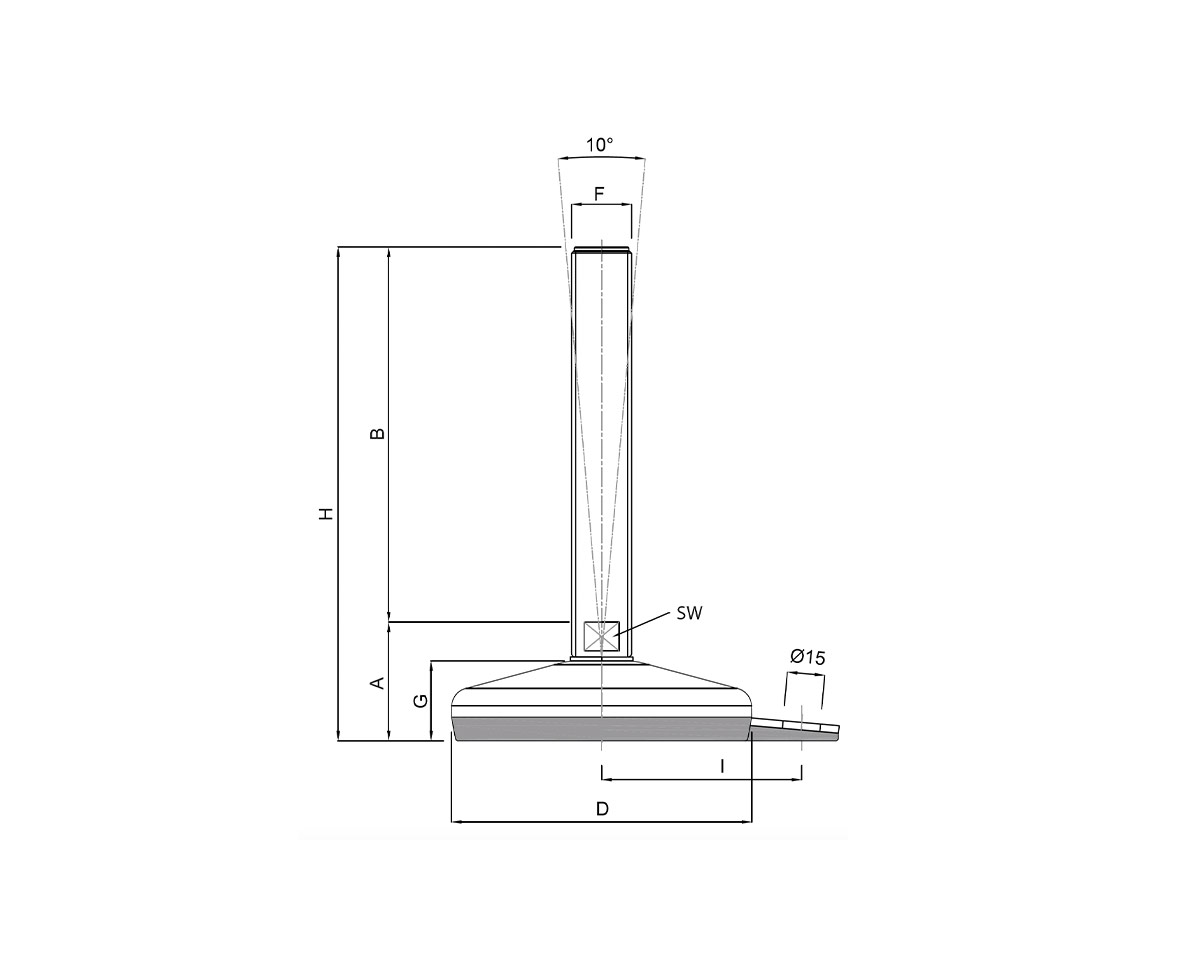

Technical drawing
Levelling foot VULCANIZED stainless steel, Ø 120 mm, M20 x 150 mm, Stainlees steel, Total height 197 mm, Articulated screw 10°, Lug Ø 15 mm, Antislip NBR black, Static load 30.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
