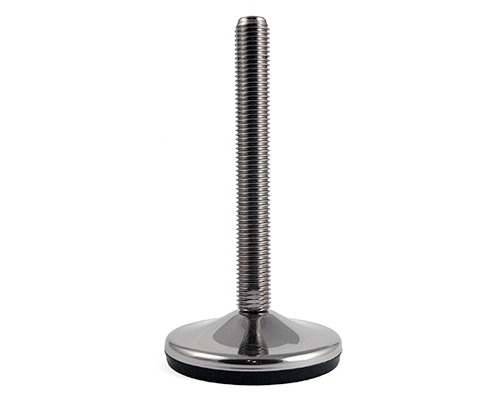

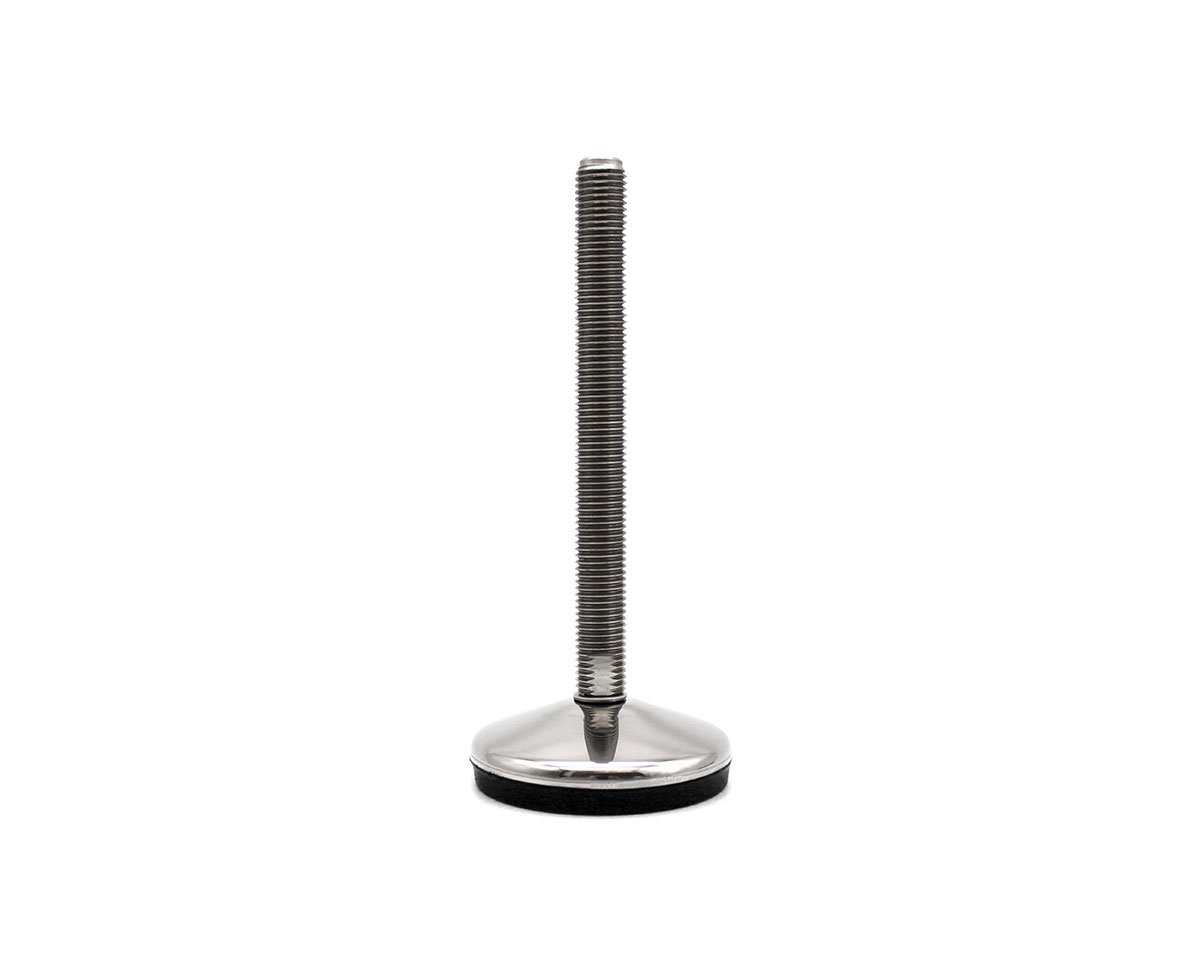

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M30 x 150 mm, NBR

4061408104130
45825076/M30

Introducing the VULCANIZED stainless steel leveling foot, designed for exceptional stability with a static load capacity of 10,000 N. Its articulated screw allows for adjustment up to 10°, while the robust NBR anti-slip pad enhances grip. Ideal for precise leveling applications.

  • Constructed from vulcanized stainless steel for superior corrosion resistance and durability.
  • Features a large base diameter of 80 mm, ensuring stability and load distribution.
  • Adjustable spindle length of 150 mm with a diameter of 30 mm, offering flexibility for various applications.
  • Articulated screw design allows for an adjustable angle compensation of 10°, accommodating uneven surfaces.
  • Static load capacity of up to 10,000 N, making it ideal for heavy-duty applications in engineering and manufacturing.
Quantity Price
From 1
€25.48*
From 13
€23.93*
From 25
€22.39*
From 50
€21.31*

21 on stock, Refill time: 5 days

€25.48* / piece
Our payment methods:

Product properties


Footplate material: Stainless steel
Anti-slip: NBR black
Ø range base plate (mm): 71-90
Material spindle: Stainless steel
Ø spindle (mm): 30
Spindle length (mm): 150
Balancing angle: 10°
Levelling foot VULCANIZED stainless steel, Ø 80 mm, M30 x 150 mm, Stainlees steel, Total height 190 mm, Articulated screw 10°, Antislip NBR black, Static load 10.000 N
