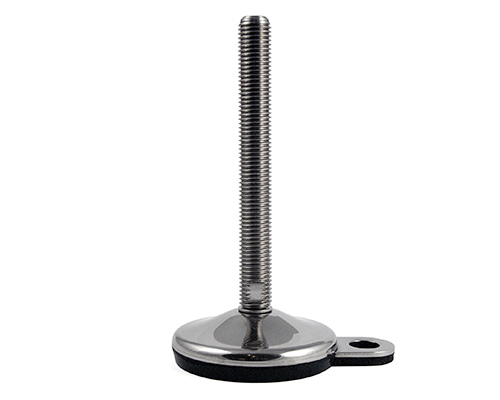

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M16 x 175 mm, Lug, NBR
Introducing the VULCANIZED stainless steel leveling foot, featuring a 100 mm diameter base and M16 x 175 mm spindle. Designed for robust stability, this component supports static loads up to 15,000 N, with a 10° adjustable angle and non-slip NBR surface for enhanced grip. Ideal for engineers and manufacturers seeking reliable leveling solutions.
| Quantity | Price |
|---|---|
| From 1 |
€16.02*
|
| From 13 |
€15.05*
|
| From 25 |
€14.08*
|
| From 50 |
€13.40*
|
29 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 175 |
| Balancing angle: | 10° |
| Hygiene: | No |

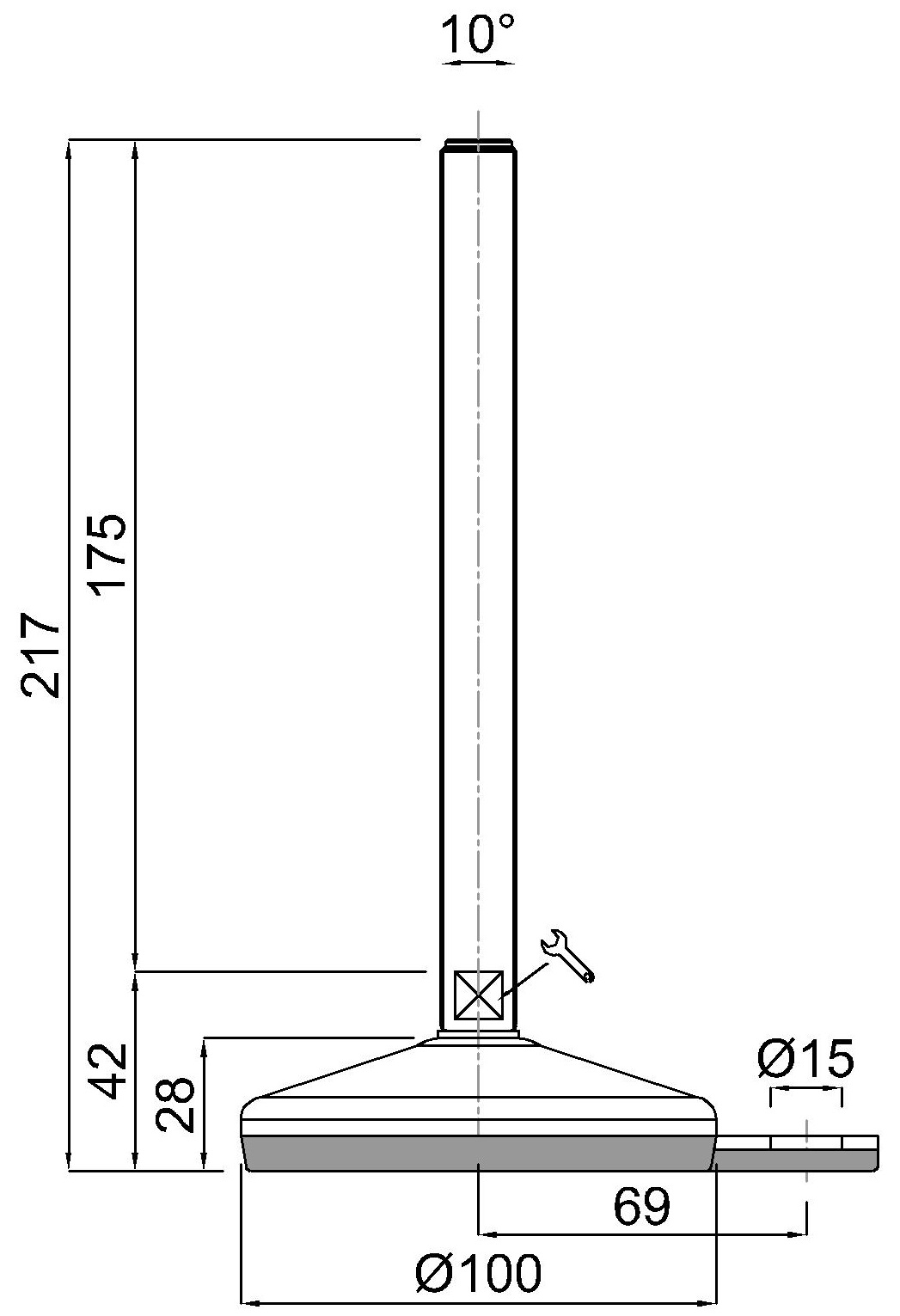

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
