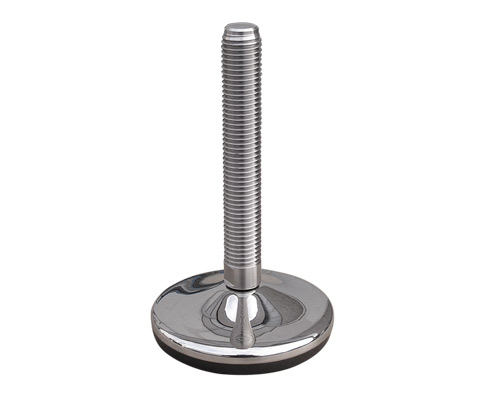

Levelling foot VULCANIZED stainless steel, Ø 100 mm, M16 x 175 mm, NBR
Discover our VULCANIZED stainless steel levelling foot, featuring a robust Ø 100 mm base, M16 x 175 mm spindle, and an articulated screw for precise adjustments. With a static load capacity of 15,000 N and NBR anti-slip properties, it ensures stability and durability in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€15.61*
|
| From 13 |
€14.66*
|
| From 25 |
€13.72*
|
| From 50 |
€13.05*
|
67 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 175 |
| Balancing angle: | 10° |

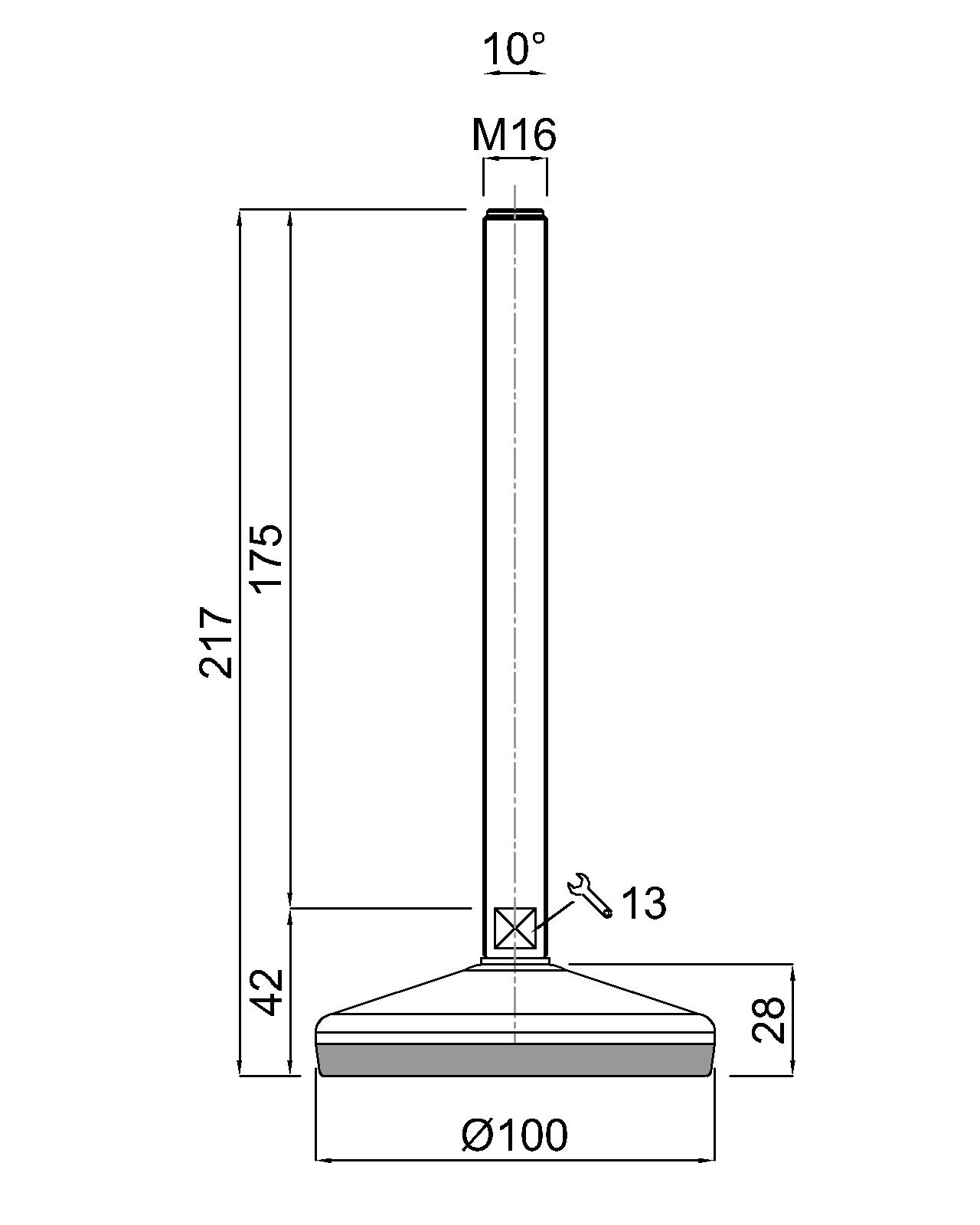

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
