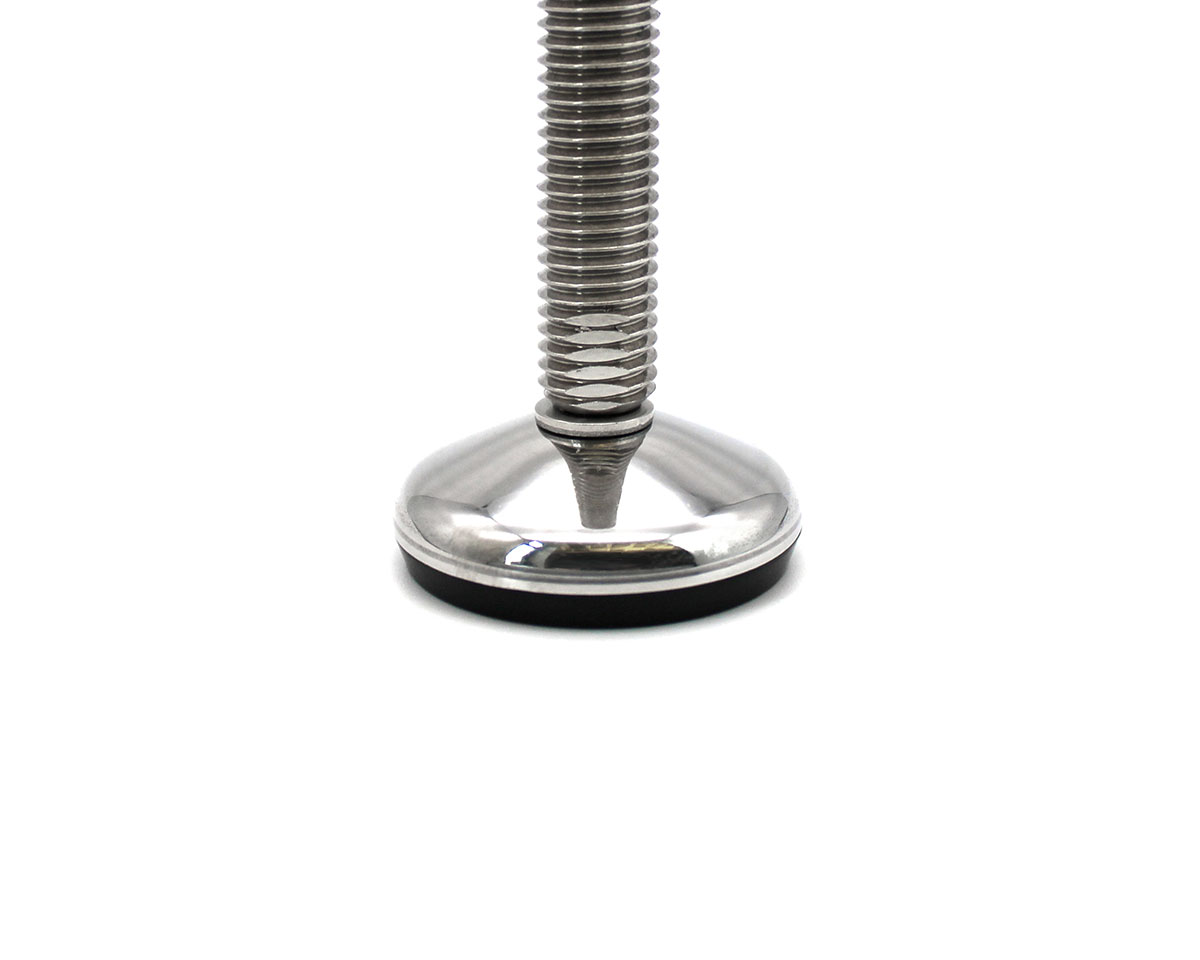

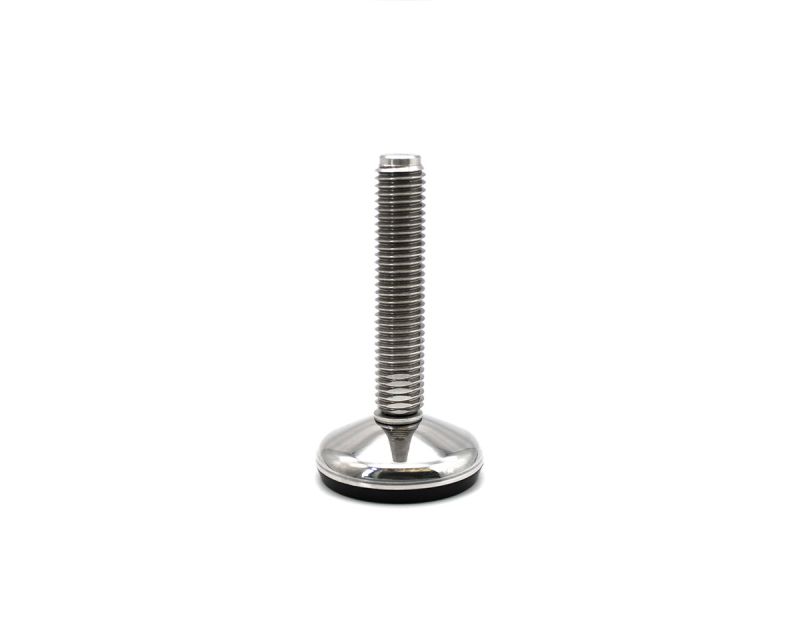

Levelling foot VULCANIZED stainless steel, Ø 40 mm, M8 x 50 mm, NBR
Enhance stability with our vulcanized stainless steel leveling foot. Featuring a robust 40 mm diameter and an articulated screw for a 10° adjustment, it supports static loads up to 3,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€5.07*
|
| From 13 |
€4.76*
|
| From 25 |
€4.45*
|
| From 50 |
€4.24*
|
Currently sold out, Refill time: 8 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 31-40 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 8 |
| Spindle length (mm): | 50 |
| Balancing angle: | 10° |

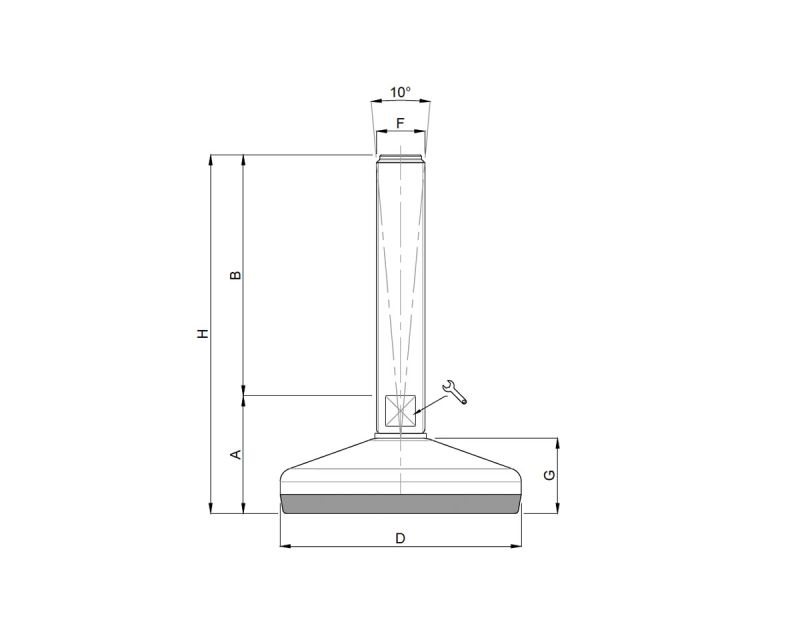

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
