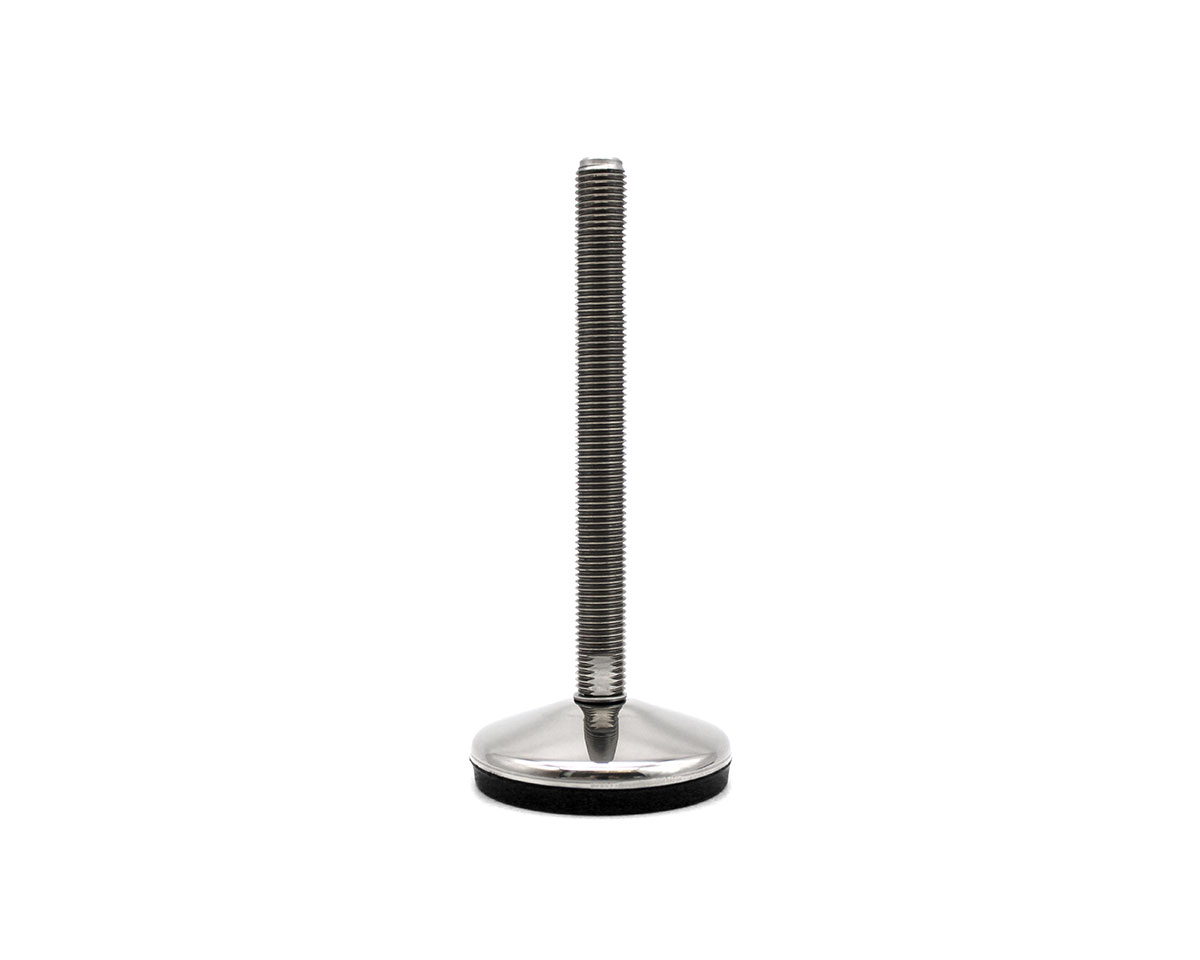

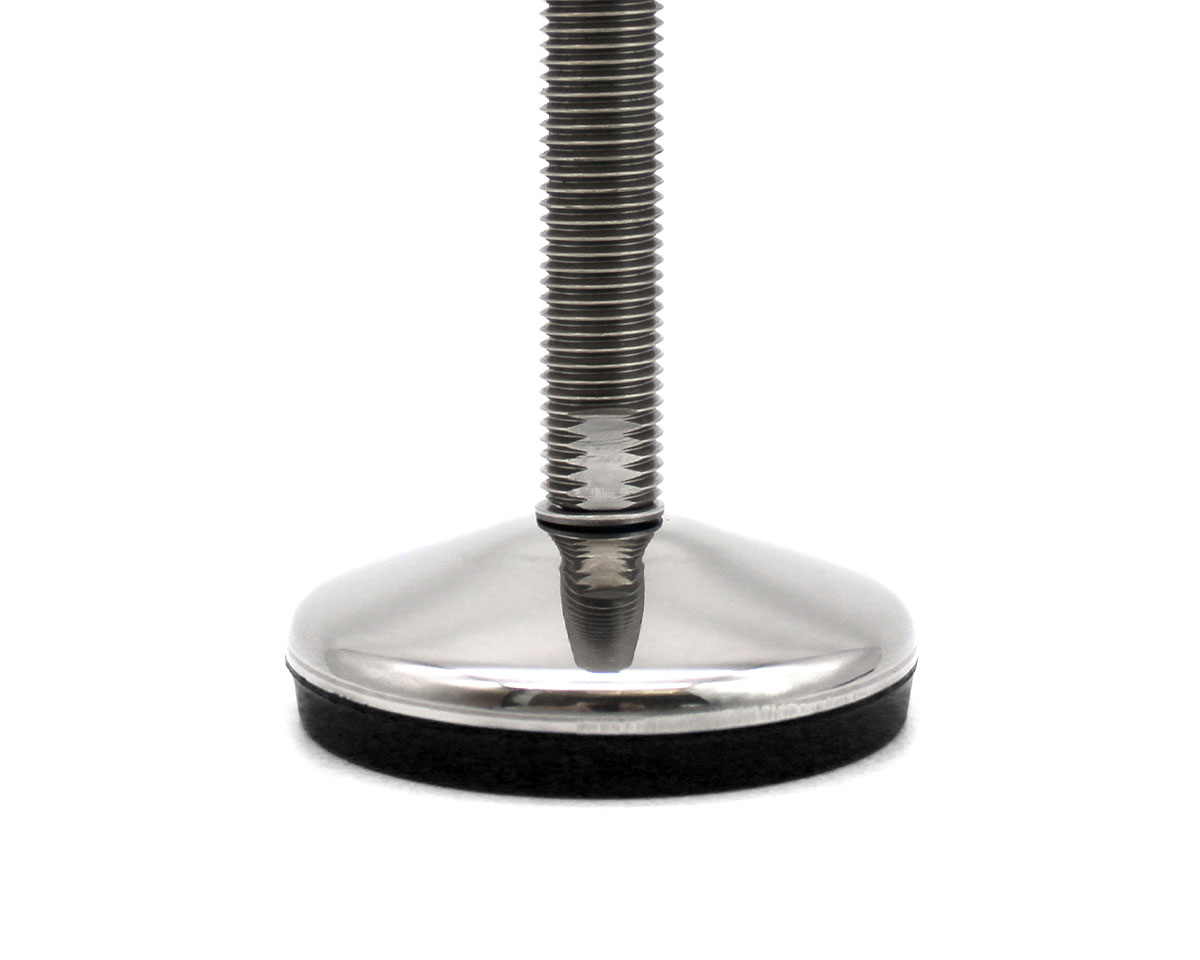

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M16 x 150 mm, NBR
With a diameter of 80 mm and a load capacity of 10,000 N, the VULCANIZED machine base made of stainless steel offers optimum stability and slip resistance for professional plant construction. Ideal for hygienic applications.
| Quantity | Price |
|---|---|
| From 1 |
€12.34*
|
| From 13 |
€11.59*
|
| From 25 |
€10.85*
|
| From 50 |
€10.32*
|
108 on stock, Refill time: 5 days

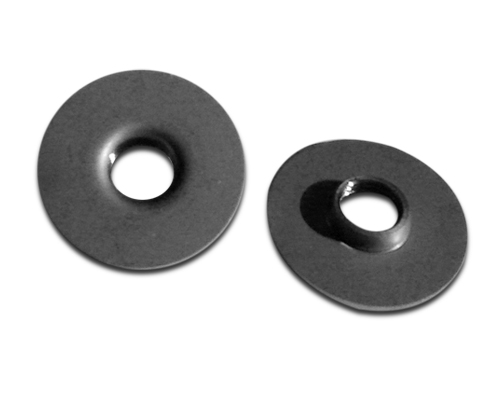

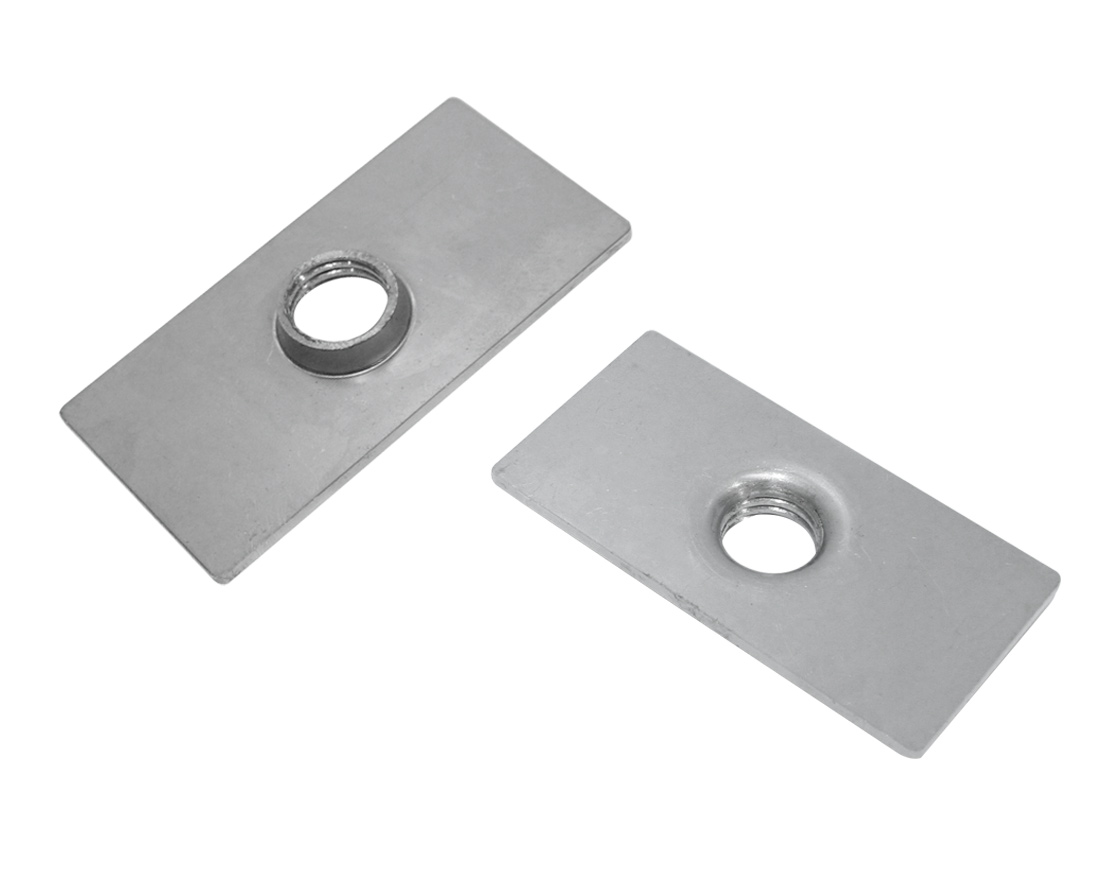

Accessories
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
| Hygiene: | No |

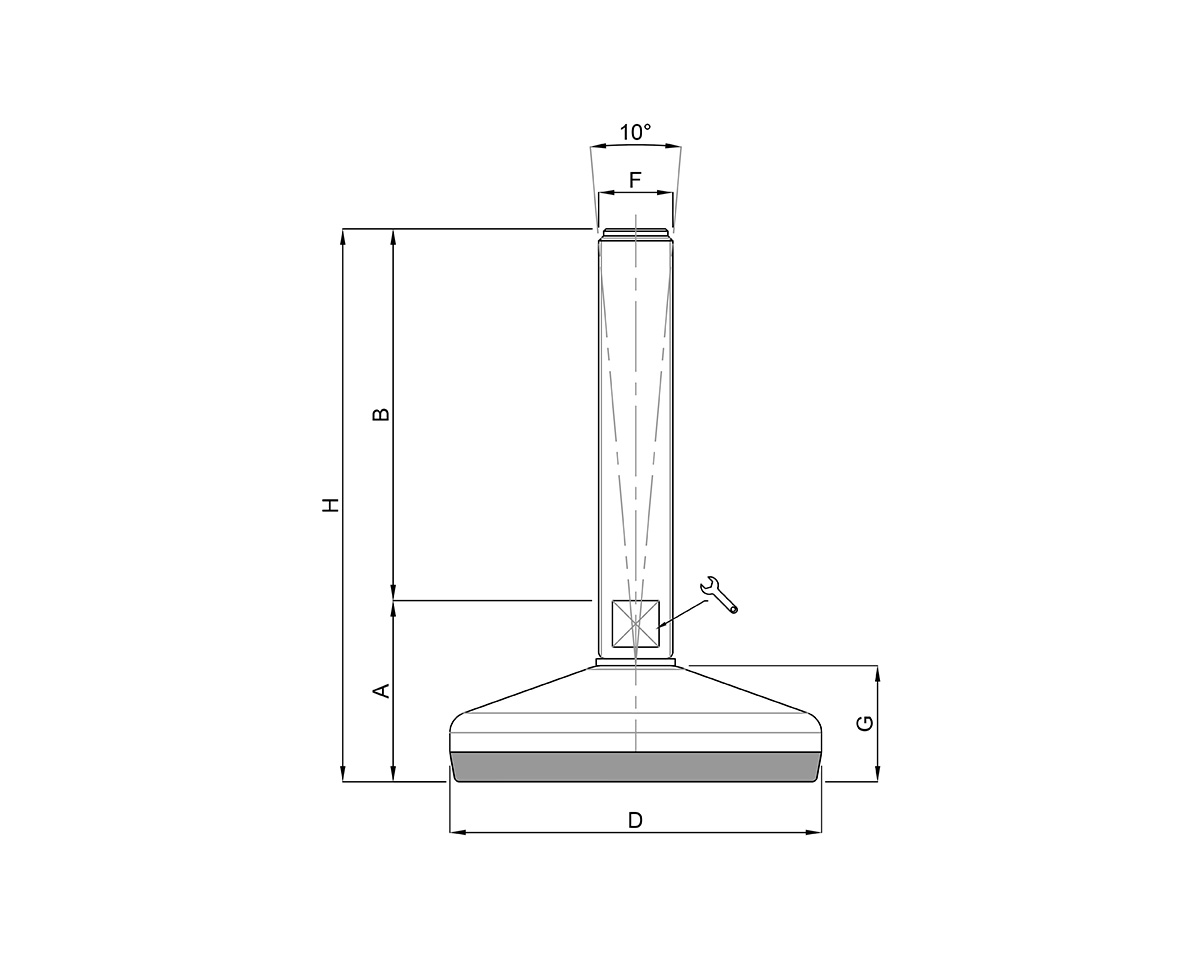

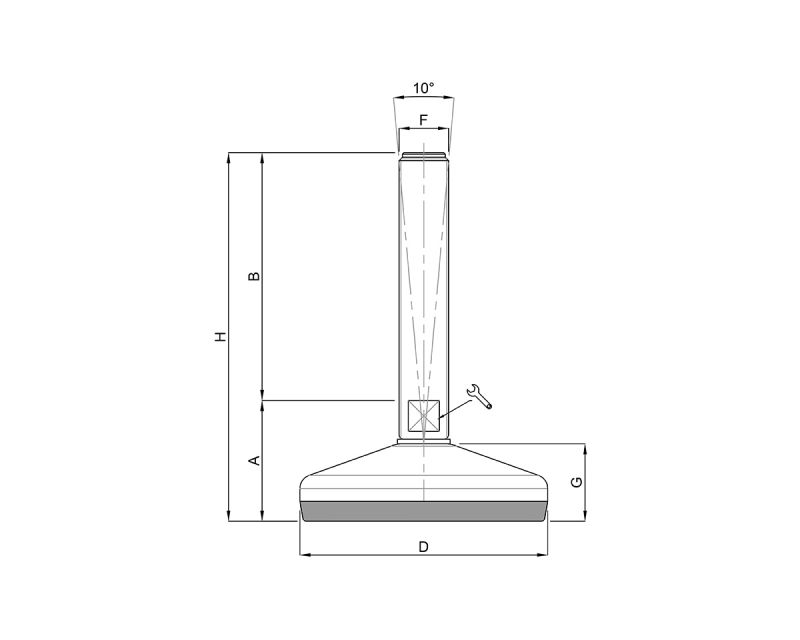

Technical drawing
Levelling feet from the VULCANIZED stainless steel series stand for design and stability in professional plant engineering. Rounded design with non-slip foot plate and optimum cleaning properties.
Hygienic design - ideal for machines, equipment and systems in the food and pharmaceutical industries. The integrated rubber buffer ensures a high level of stability.
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
