Levelling foot VULCANIZED stainless steel, Ø 80 mm, M16 x 175 mm, Lug, EPDM

EAN 4061408125715

Type 45825028/F/EB

Optimize stability with our VULCANIZED stainless steel leveling foot. Featuring an 80mm diameter, M16 x 175mm screw, and adjustable 10° angle, it supports static loads up to 10,000 N.

Constructed from vulcanized stainless steel for maximum corrosion resistance and durability.
Adjustable foot with a total height of 213 mm, featuring a screw articulation of 10° for precise leveling in various applications.
Anti-slip EPDM blue pad ensures stable support and prevents slippage under heavy loads.
Capable of withstanding a static load of 10,000 N, making it suitable for heavy-duty use.
Versatile dimensions (80 mm diameter footplate, M16 x 175 mm spindle) accommodate a range of industrial leveling needs.

Quantity	Price
From 1	€15.11*
From 13	€14.18*
From 25	€13.26*
From 50	€12.61*

*Prices excl. VAT plus shipping costs

36 on stock, Refill time: 5 days

€15.11* / piece

Our payment methods:

Accessories

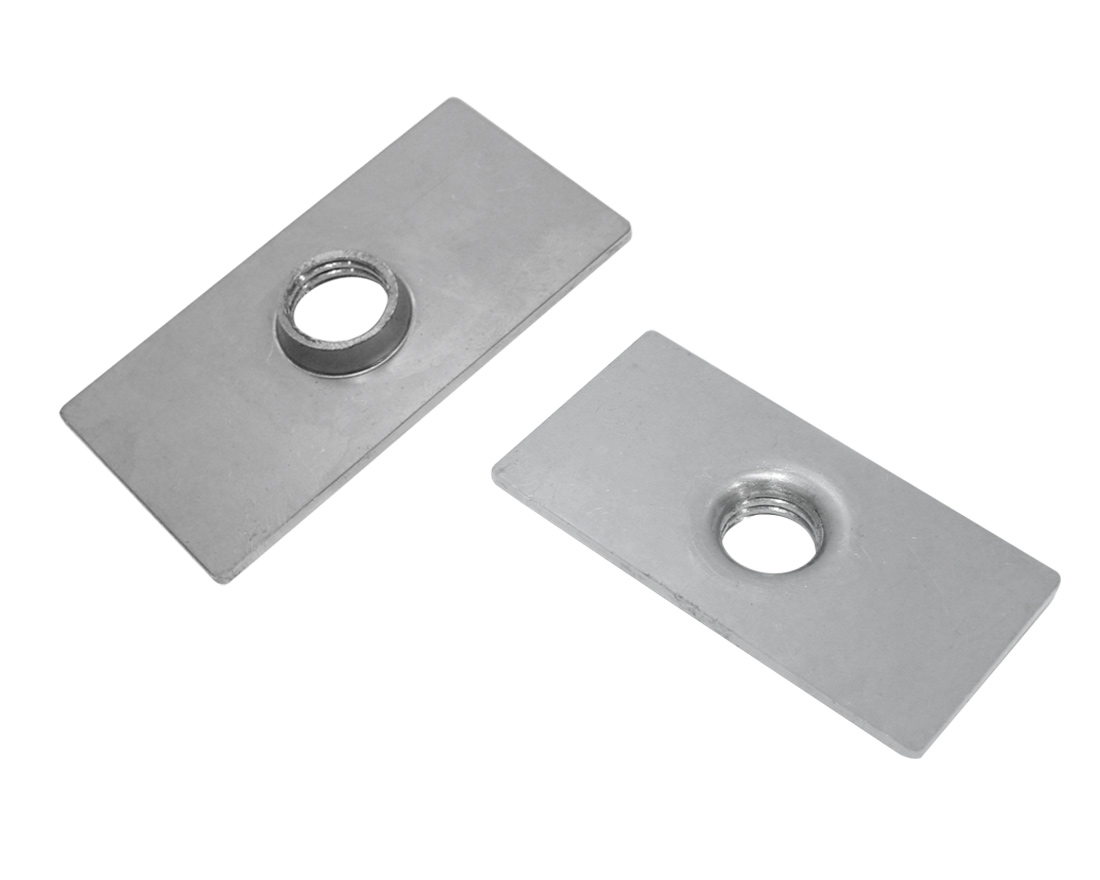

Welding plate SS M16, 60 x 40

Type No.: 458PI17530

From €3.53*

Welding plate SS M16, Ø42

Type No.: 458PI17570

From €2.69*

Product properties

Footplate material:	Stainless steel
Anti-slip:	EPDM blue
Ø range base plate (mm):	71-90
Ground fastening:	1 mounting lug
Vibration damping:	no
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	175
Balancing angle:	10°
Hygiene:	No

Product description

Levelling foot VULCANIZED stainless steel, Ø 80 mm, M16 x 175 mm, Stainlees steel, Total height 213 mm, Articulated screw 10°, Lug Ø 15 mm, Antislip EPDM blue, Static load 10.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
