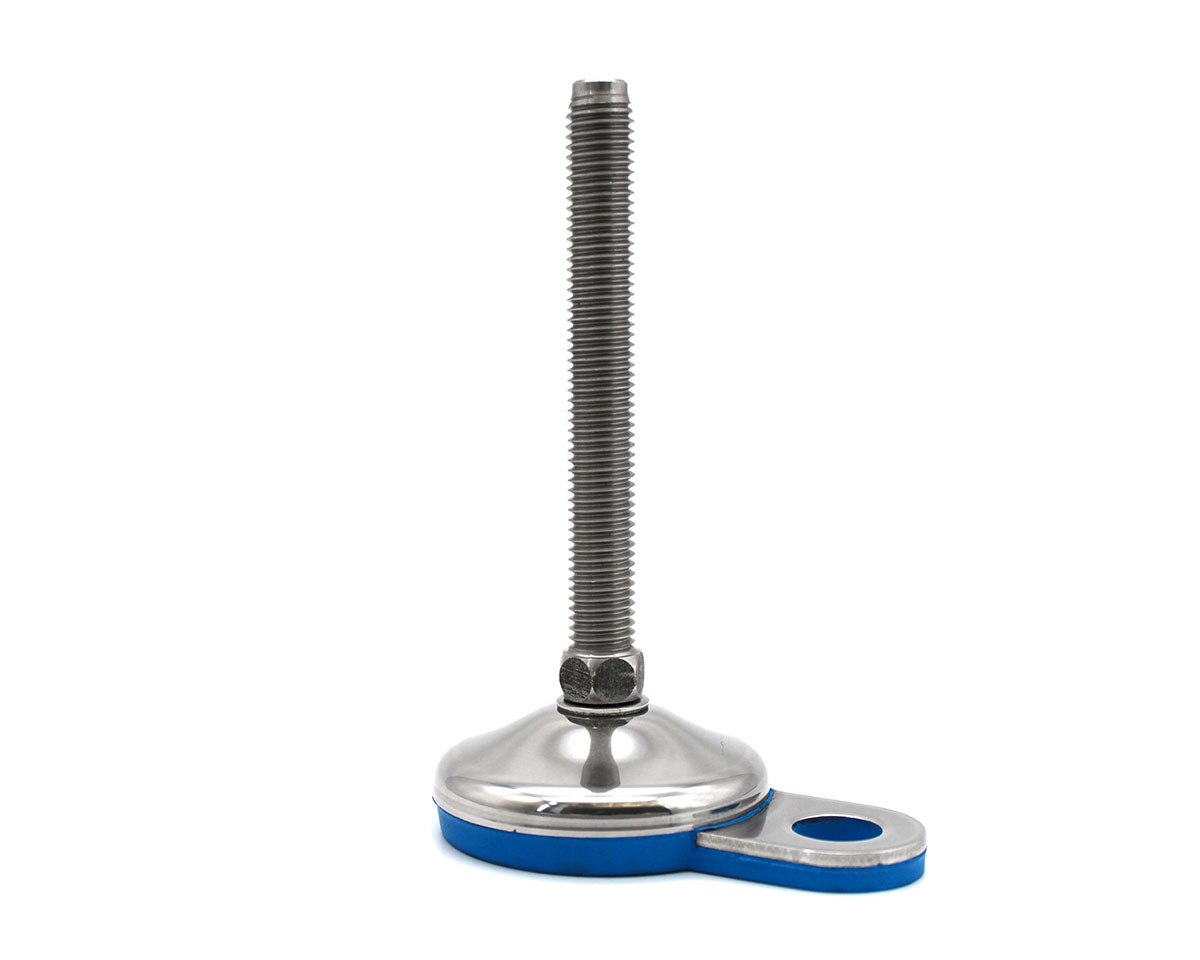

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M12 x 150 mm, Lug, EPDM

EAN 4061408124824

Type 45824618/F/EB

Discover the VULCANIZED stainless steel leveling foot, featuring a 60 mm diameter and M12 x 150 mm threaded spindle. With 10° articulation and an impressive static load capacity of 7,000 N, this durable component ensures stability and precision in any engineering application.

Made from vulcanized stainless steel for enhanced durability and corrosion resistance
Features a 60 mm diameter foot plate with an adjustable range of 51-70 mm for versatile applications
Equipped with an M12 x 150 mm spindle for robust support and stability
The articulated screw allows for a 10° leveling angle, ensuring optimal alignment
Anti-slip EPDM blue provides superior grip, supporting a static load capacity of up to 7,000 N

Quantity	Price
From 1	€13.12*
From 13	€12.32*
From 25	€11.51*
From 50	€10.95*

*Prices excl. VAT plus shipping costs

65 on stock, Refill time: 5 days

€13.12* / piece

Our payment methods:

Accessories

Welding plate SS M12, 40 x 40

Type No.: 458PI17499

From €2.69*

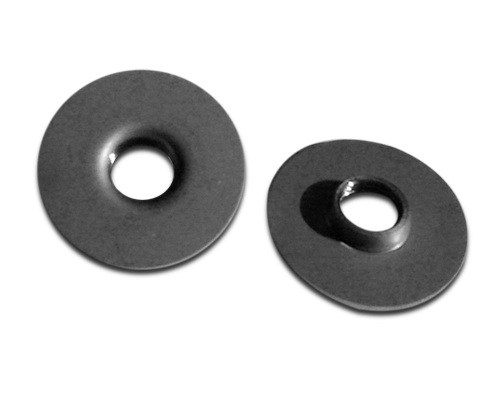

Welding plate SS M12, Ø42

Type No.: 458PI17569

From €2.69*

Product properties

Footplate material:	Stainless steel
Anti-slip:	EPDM blue
Ø range base plate (mm):	51-70
Ground fastening:	1 mounting lug
Material spindle:	Stainless steel
Ø spindle (mm):	12
Spindle length (mm):	150
Balancing angle:	10°
Hygiene:	No
Brake:	No
Steerable:	No

Product description

Levelling foot VULCANIZED stainless steel, Ø 60 mm, M12 x 150 mm, Stainlees steel, Total height 185 mm, Articulated screw 10°, Lug Ø 15 mm, Antislip EPDM blue, Static load 7.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
