Levelling foot VULCANIZED stainless steel, Ø 80 mm, M24 x 75 mm, Lug, NBR
EAN
4061408120079
Type
45825070/F
Discover our VULCANIZED stainless steel leveling foot, featuring an 80 mm diameter and robust M24 x 75 mm spindle. With a static load capacity of 10,000 N and 10° articulation, it ensures stability and precision for your applications.
| Quantity | Price |
|---|---|
| From 1 |
€17.94*
|
| From 13 |
€16.85*
|
| From 25 |
€15.76*
|
| From 50 |
€15.00*
|
Currently sold out, Refill time: 5 days
Our payment methods:
Invoice
Prepayment
PayPal
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 75 |
| Balancing angle: | 10° |
| Hygiene: | No |

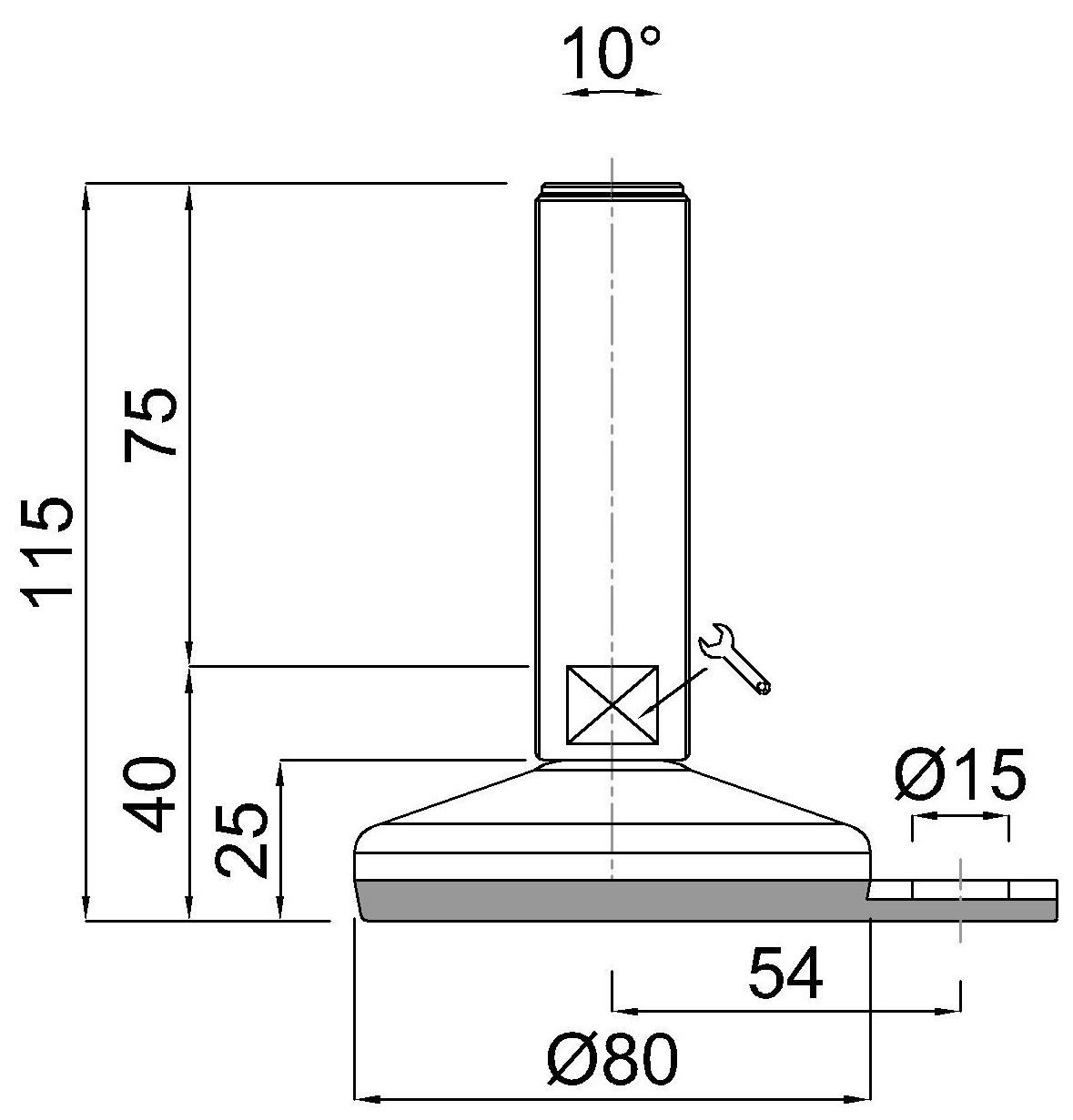

Technical drawing
Levelling foot VULCANIZED stainless steel, Ø 80 mm, M24 x 75 mm, Stainlees steel, Total height 115 mm, Articulated screw 10°, Lug Ø 15 mm, Antislip NBR black, Static load 10.000 N
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
