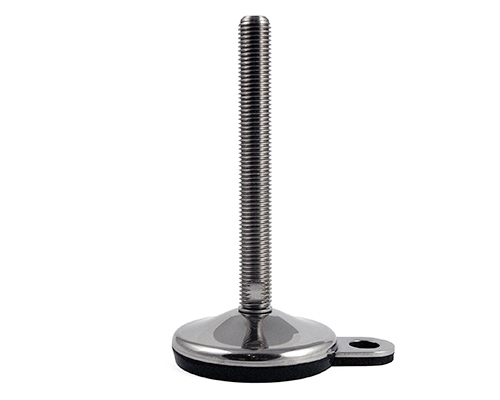

Levelling foot VULCANIZED stainless steel, Ø 80 mm Stainless steel, M20 x 300 mm, Lug, NBR
Discover our Vulcanized Stainless Steel Levelling Foot, featuring an 80 mm diameter, M20 x 300 mm spindle, and a static load capacity of 10,000 N. Designed for durability and stability with anti-slip NBR and a 10° articulated screw for precision alignment. Perfect for demanding applications.
| Quantity | Price |
|---|---|
| From 1 |
€24.21*
|
| From 13 |
€22.74*
|
| From 25 |
€21.27*
|
| From 50 |
€20.24*
|
13 on stock, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Ground fastening: | 1 mounting lug |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 300 |
| Balancing angle: | 10° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
