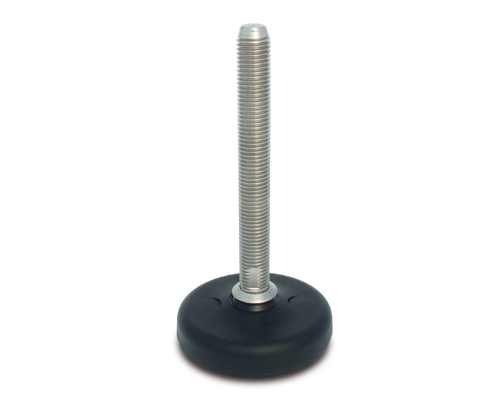

Levelling foot ECO16 PA, Ø 123 mm, M30 x 250 mm Stainless steel, Drills

EAN 4061408099436

Type 45818366

Introducing the ECO16 Levelling Foot, featuring a robust stainless steel spindle and durable polyamide base. Designed for precise adjustments and static loads up to 35,000 N, it ensures optimal stability in any engineering application.

Robust design with a total height of 291 mm and a static load capacity of 35,000 N, ensuring high stability and durability for demanding applications.
Made from high-quality stainless steel for the spindle and durable polyamide for the footplate, offering excellent corrosion resistance and longevity.
Articulated screw design with a 16° adjustment angle allows for precise leveling on uneven surfaces.
Footplate diameter of 123 mm provides a wide base for load distribution, enhancing stability in industrial environments.
Equipped with dual bore holes (Ø 12.5 mm) for secure mounting, facilitating easy installation and adaptability.

Quantity	Price
From 1	€27.30*
From 5	€24.39*
From 15	€21.78*
From 50	€21.34*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€27.30* / piece

Our payment methods:

Accessories

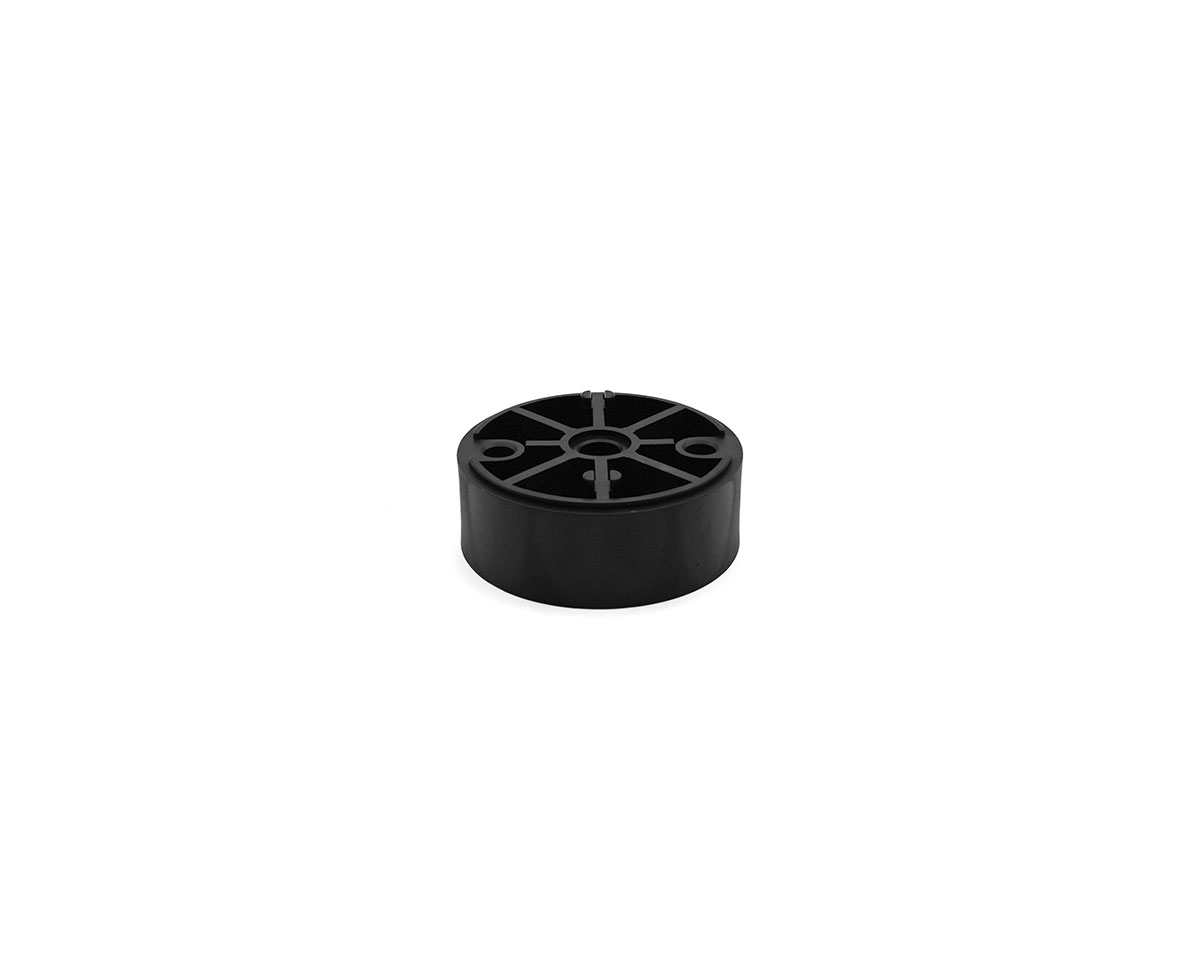

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	No
Material spindle:	Stainless steel
Ø spindle (mm):	30
Spindle length (mm):	250
Balancing angle:	16°
Hygiene:	No

Product description

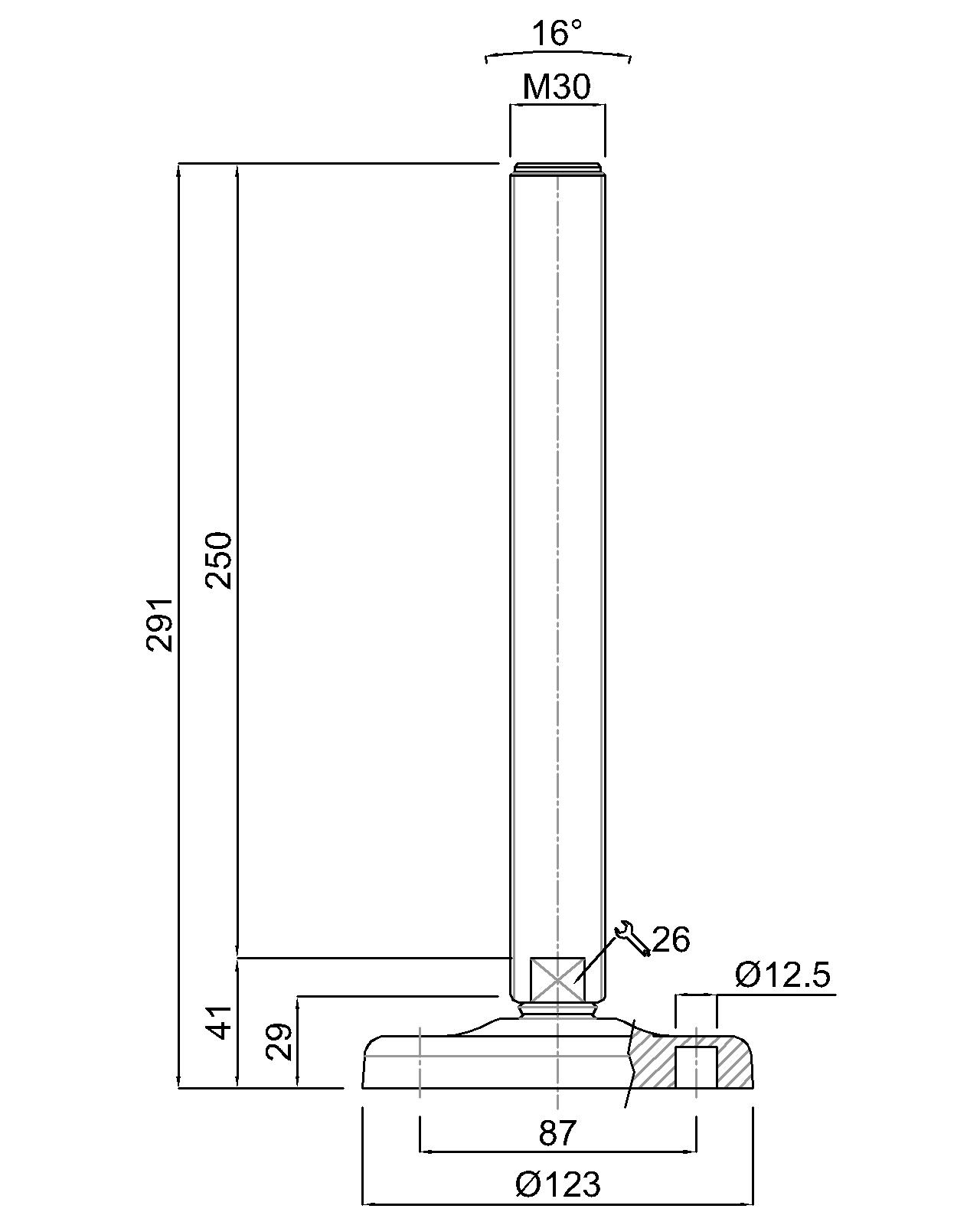

Levelling foot ECO16 Polyamide, Ø 123 mm, M30 x 250 mm, Stainlees steel, Total height 291 mm, Articulated screw 16°, Bore holes Ø 12,5 mm, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
