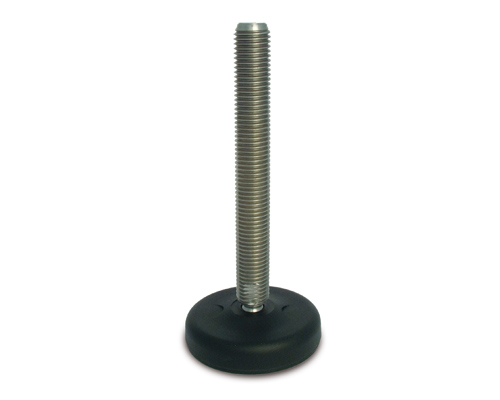

Levelling foot ECO30 PA, Ø 123 mm, M30 x 200 mm Stainless steel, Drills, NBR

EAN 4061408098057

Type 45818203

Introducing the ECO30 Levelling Foot: engineered with a durable polyamide base and stainless steel spindle, it supports a static load of 25,000 N, featuring 30° articulation and non-slip NBR for enhanced stability.

Durable polyamide base with a diameter of 123 mm for enhanced stability and support
Stainless steel spindle with a length of 200 mm and a diameter of 30 mm, ensuring corrosion resistance and longevity
Articulated screw design allowing a tilt angle of up to 30° for versatile leveling applications
Equipped with two bore holes (Ø 12.5 mm) for secure floor fastening
Non-slip NBR rubber provides an anti-slip feature, supporting a static load capacity of up to 25,000 N for reliable performance.

Quantity	Price
From 1	€26.09*
From 5	€23.32*
From 15	€20.82*
From 50	€20.40*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€26.09* / piece

Our payment methods:

Accessories

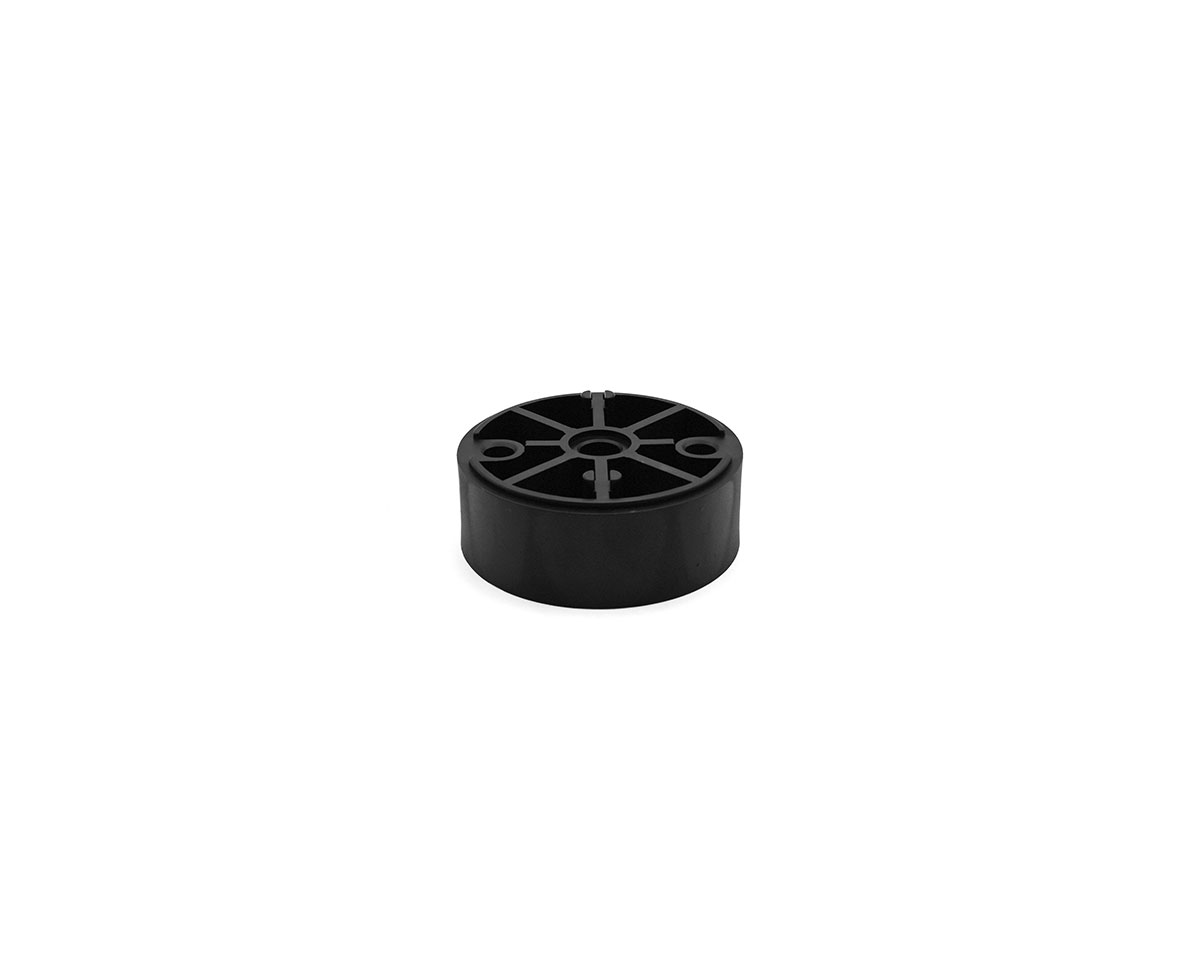

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	30
Spindle length (mm):	200
Balancing angle:	30°

Product description

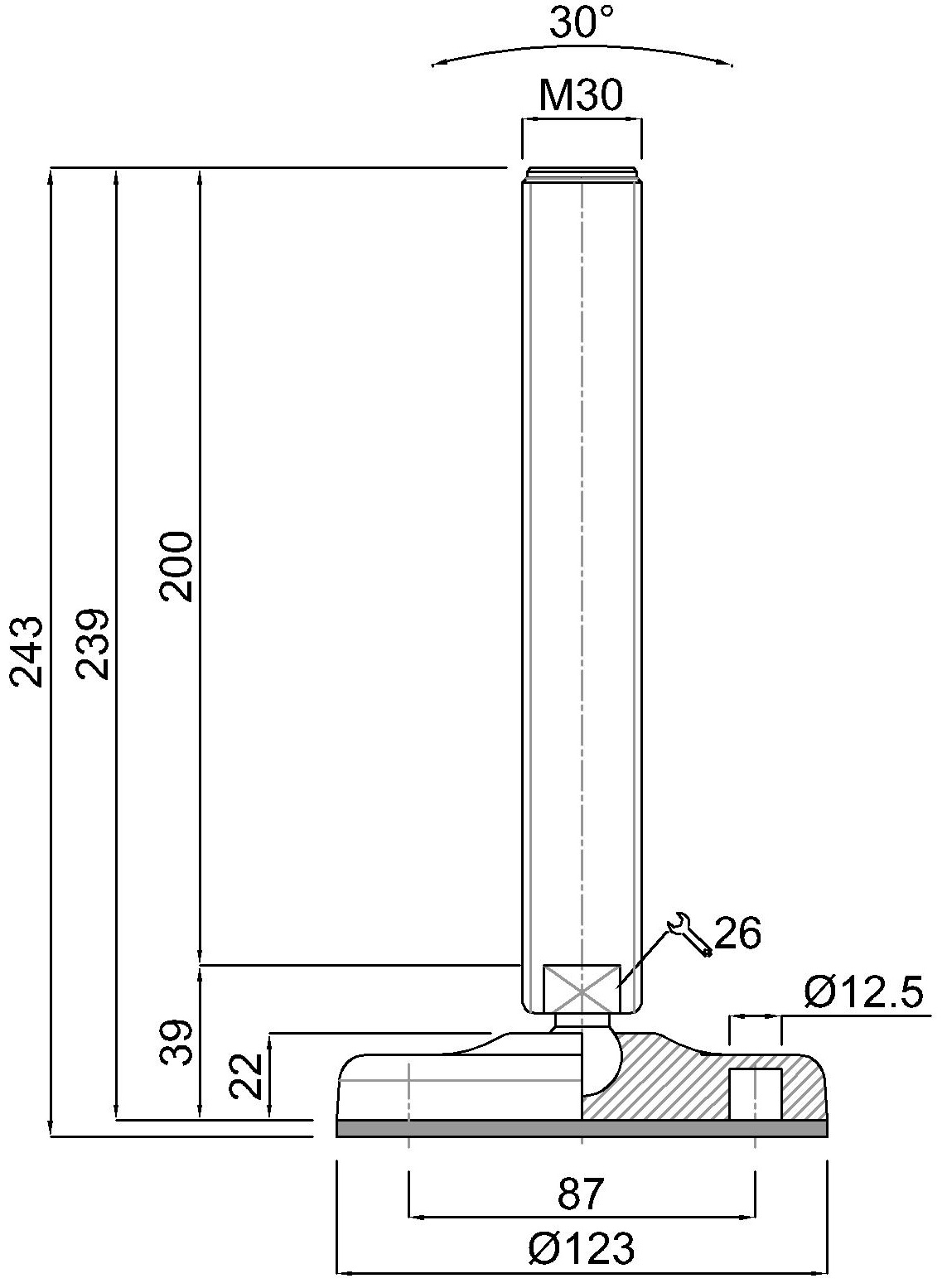

Levelling foot ECO30 Polyamide, Ø 123 mm, M30 x 200 mm, Stainlees steel, Total height 242 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 25.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
