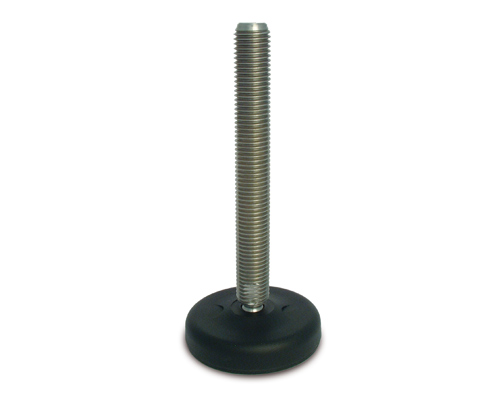

Levelling foot ECO30 PA, Ø 103 mm, M20 x 200 mm Stainless steel, Drills, NBR
Discover the ECO30 Levelling Foot, featuring a durable polyamide base and stainless steel spindle. With a load capacity of 20,000 N and an adjustable angle of 30°, it's ideal for precise leveling in demanding environments.
| Quantity | Price |
|---|---|
| From 1 |
€12.93*
|
| From 5 |
€11.56*
|
| From 15 |
€10.32*
|
| From 50 |
€10.11*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 30° |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
