Levelling foot PA, Ø 123 mm, M16 x 100 mm Stainless steel, Drills

EAN 4061408015269

Type 45810158

Optimize your machinery with our PA leveling foot, featuring a robust 123 mm diameter and an articulated screw allowing for a 30° adjustment. Made of high-quality stainless steel, it supports static loads up to 35,000 N. Ideal for engineers seeking precise stability.

High durability with a stainless steel spindle, ensuring resistance to corrosion and wear.
Large diameter leveling foot (Ø 123 mm) provides exceptional stability and load distribution.
Capable of supporting a static load of up to 35,000 N, making it suitable for heavy-duty applications.
Adjustable articulation at a 30° angle accommodates various leveling needs and uneven surfaces.
Designed with two bore holes (Ø 12.5 mm) for secure floor mounting, enhancing installation reliability.

Quantity	Price
From 1	€8.05*
From 5	€7.19*
From 15	€6.42*
From 50	€6.29*

*Prices excl. VAT plus shipping costs

20 on stock, Refill time: 5 days

€8.05* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	100
Balancing angle:	30°
Hygiene:	No

Product description

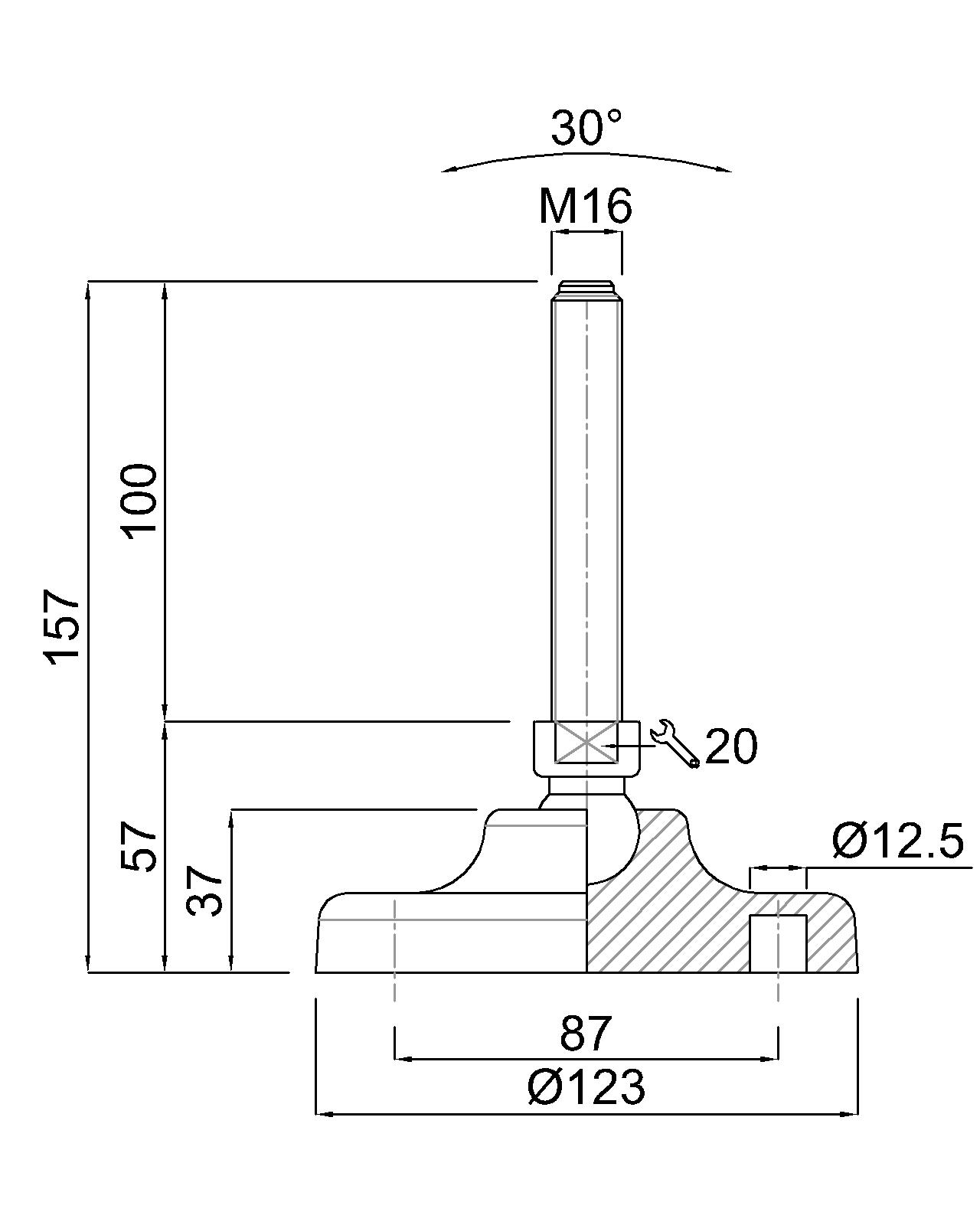

Levelling foot Polyamide, Ø 123 mm, M16 x 100 mm, Stainlees steel, Total height 157 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
