Levelling foot PA, Ø 123 mm, M16 x 175 mm Stainless steel, Drills

EAN 4061408014088

Type 45810164

Discover our robust Levelling Foot PA, featuring a 123 mm diameter and M16 x 175 mm stainless steel spindle. With a static load capacity of 35,000 N and a 30° articulated screw, it ensures stability and precision for your engineering applications.

Made from durable polyamide and stainless steel, ensuring excellent corrosion resistance and longevity.
Features a total height of 232 mm with a 175 mm spindle length for versatile applications.
Designed with an articulated screw angle of 30° for optimal leveling adjustment.
Supports a maximum static load of 35,000 N, providing robust stability in various industrial settings.
Equipped with two bore holes of Ø 12.5 mm for secure floor mounting and easy installation.

Quantity	Price
From 1	€9.96*
From 5	€8.90*
From 15	€7.95*
From 50	€7.79*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€9.96* / piece

Our payment methods:

Accessories

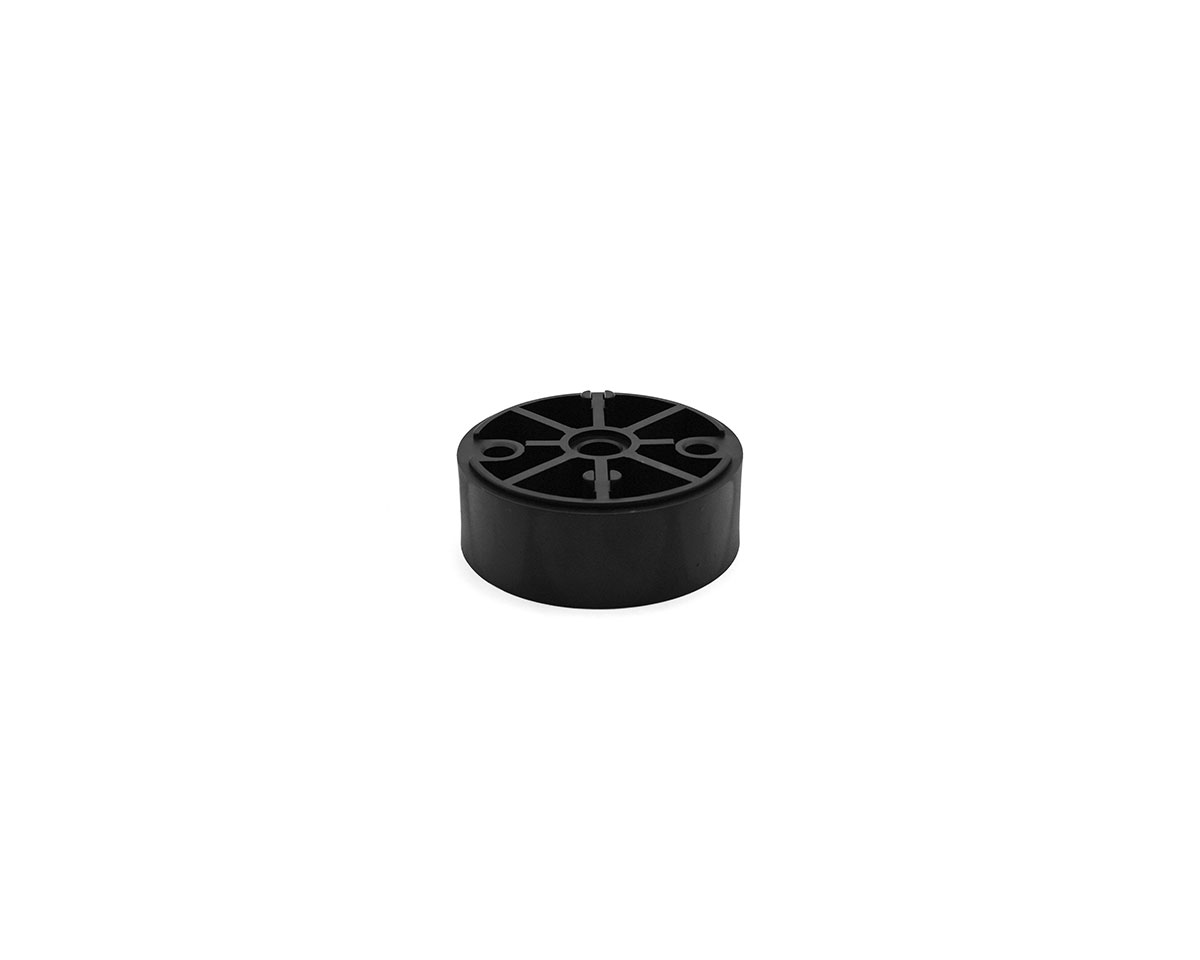

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	No
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	175
Balancing angle:	30°
Hygiene:	No

Product description

Levelling foot Polyamide, Ø 123 mm, M16 x 175 mm, Stainlees steel, Total height 232 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
