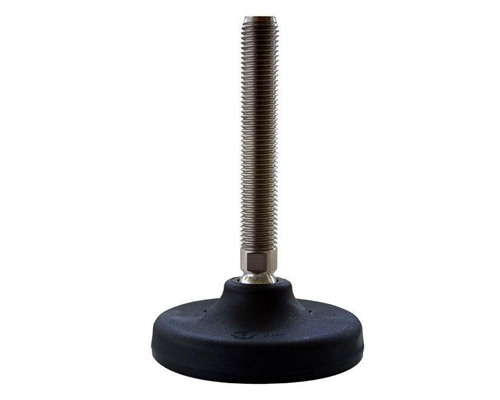

Levelling foot PA, Ø 123 mm, M20 x 150 mm Stainless steel, Drills, NBR

EAN 4061408013272

Type 45810179

Optimize your machinery's stability with our Polyamide Levelling Foot. Featuring a 123 mm diameter and 35,000 N static load capacity, this stainless steel solution excels in performance with articulated adjustment up to 30°.

Robust construction with a stainless steel spindle and polyamide foot for enhanced durability and corrosion resistance.
Large footplate diameter of 123 mm ensures stability and even weight distribution, accommodating dynamic loads.
High static load capacity of 35,000 N, suitable for heavy-duty applications in various industrial settings.
Features articulated screw design with a 30° adjustment angle, allowing for precise leveling and alignment.
Equipped with anti-slip NBR rubber pads, providing excellent grip and reducing the risk of movement on surfaces.

Quantity	Price
From 1	€13.05*
From 5	€11.66*
From 15	€10.41*
From 50	€10.20*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€13.05* / piece

Our payment methods:

Accessories

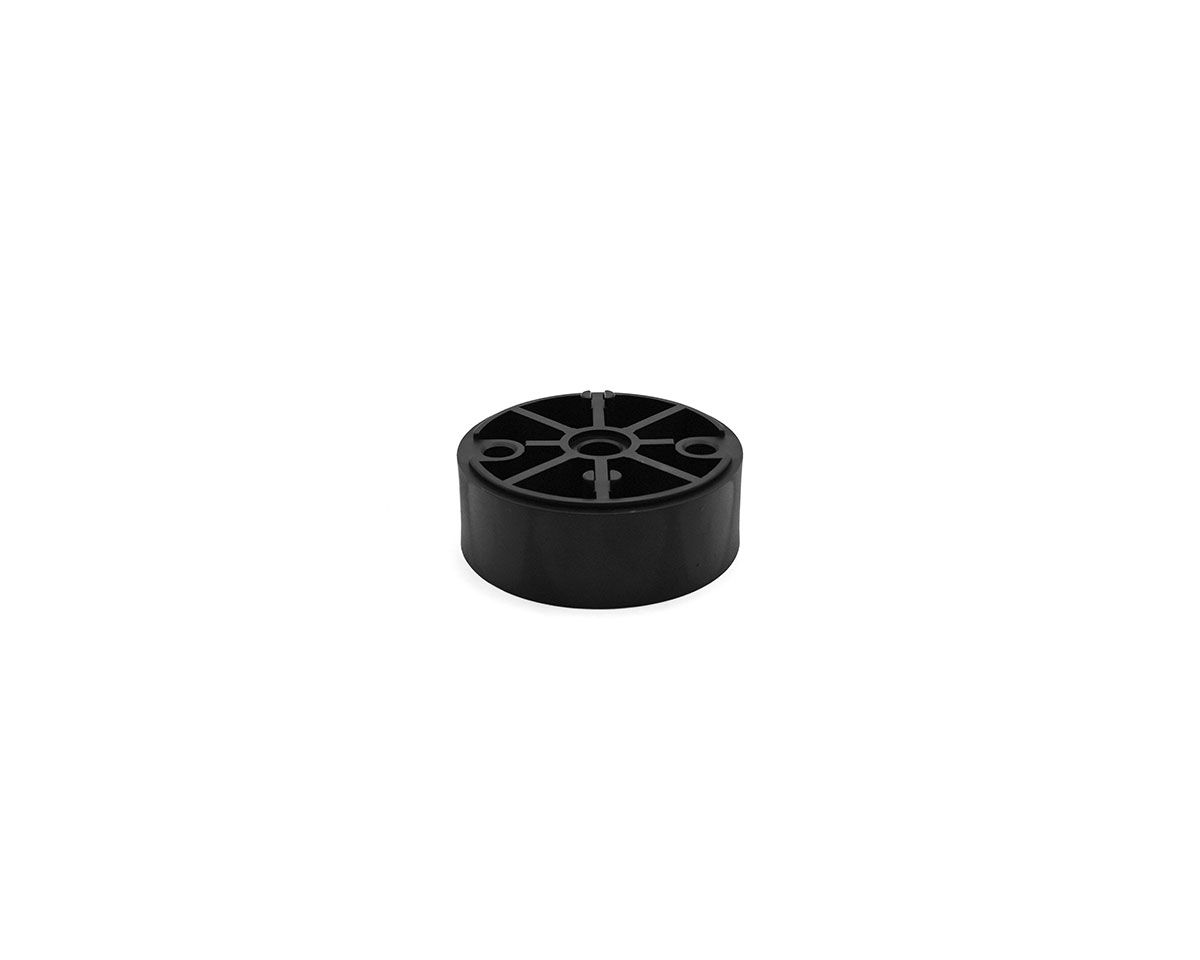

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	150
Balancing angle:	30°

Product description

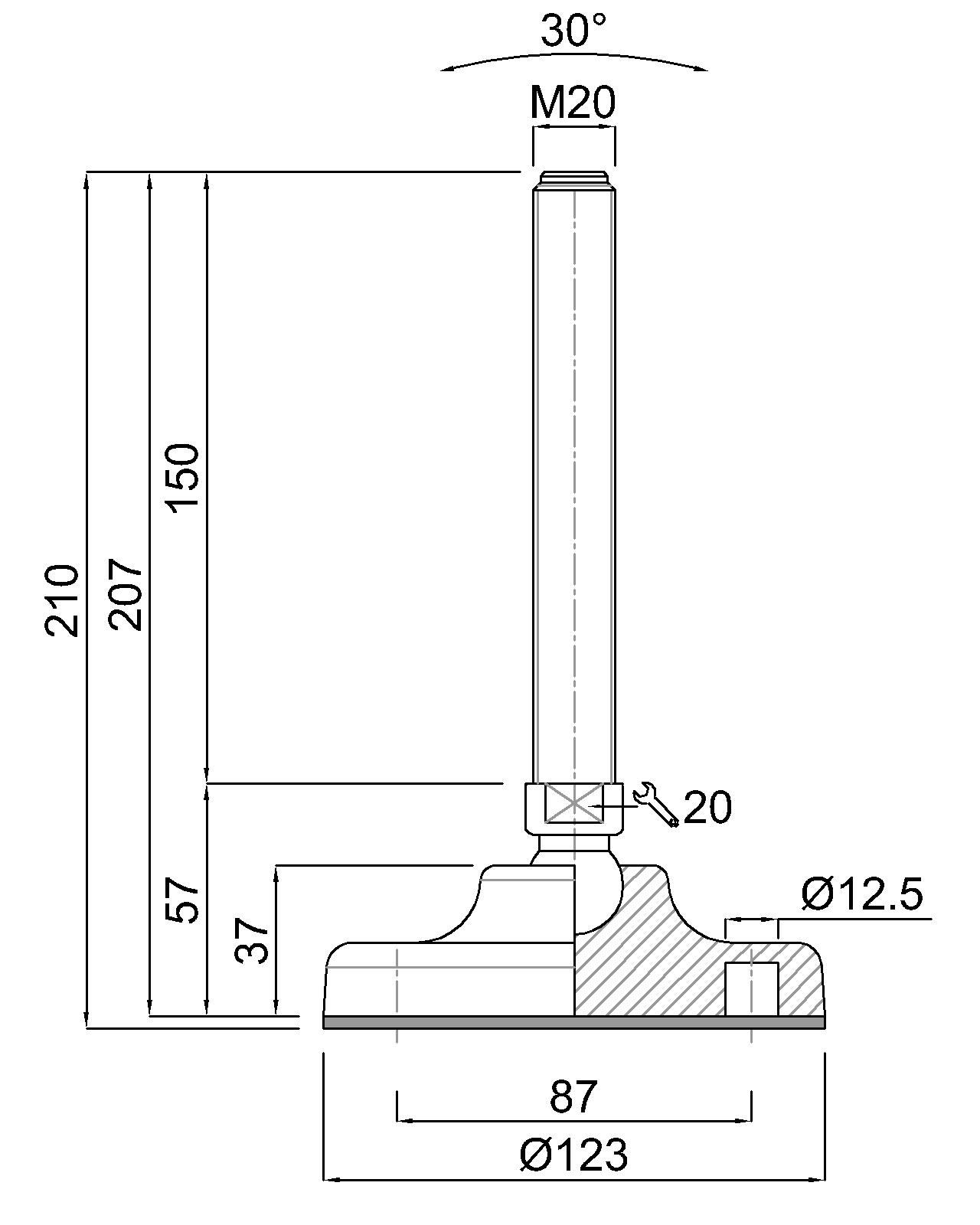

Levelling foot Polyamide, Ø 123 mm, M20 x 150 mm, Stainlees steel, Total height 210 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
