Levelling foot PA, Ø 103 mm, M16 x 125 mm Stainless steel, Drills
Optimize your equipment's stability with our stainless steel levelling foot. Featuring a durable polyamide base and articulated screw for angles up to 30°, it supports up to 25,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€7.65*
|
| From 5 |
€6.84*
|
| From 15 |
€6.11*
|
| From 50 |
€5.98*
|
20 on stock, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | No |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 125 |
| Balancing angle: | 30° |
| Hygiene: | No |

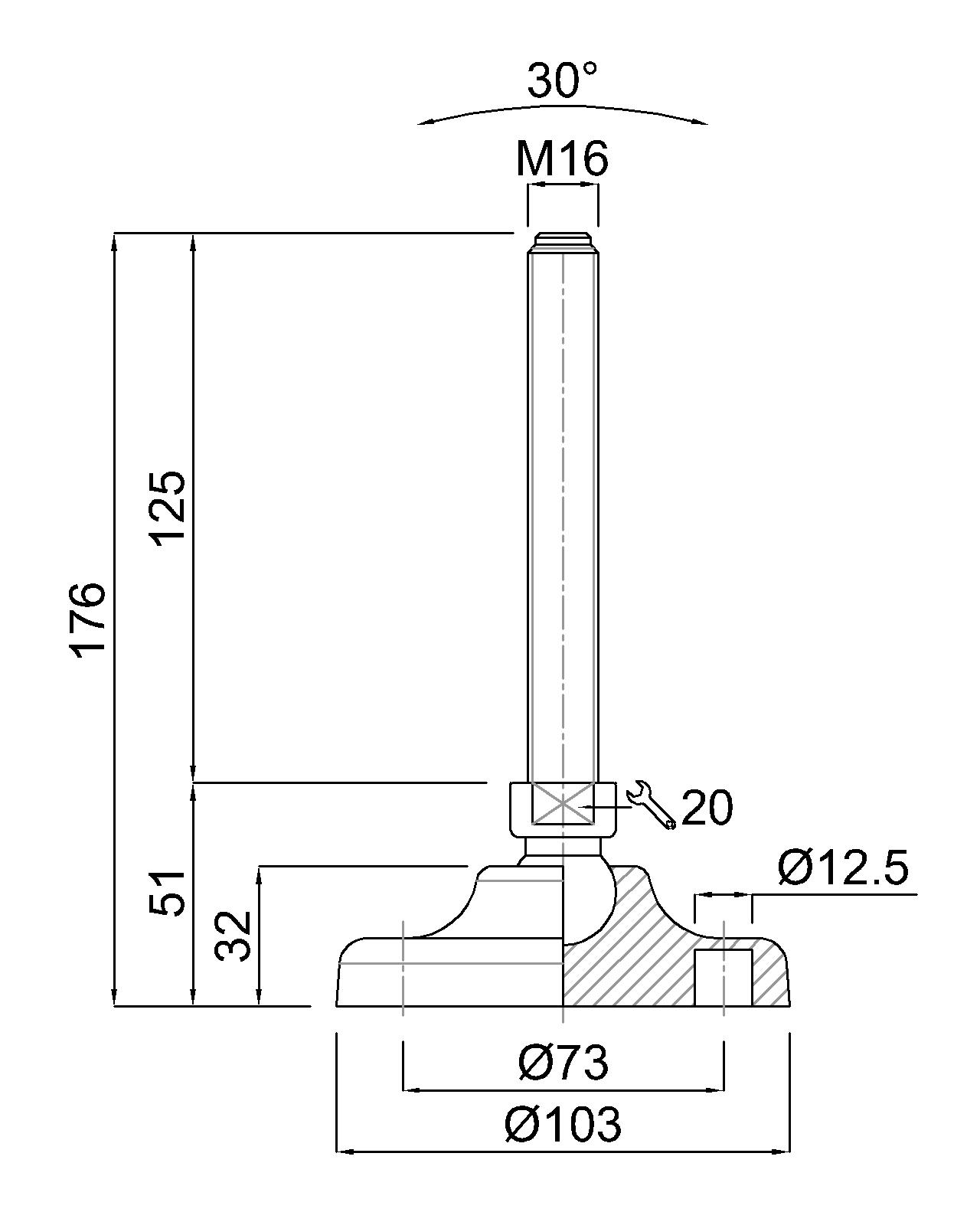

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
