Levelling foot PA, Ø 103 mm, M24 x 150 mm Stainless steel, Drills, NBR
Discover our Stainless Steel Levelling Foot with a 103 mm diameter. Designed for static loads up to 25,000 N, it features a durable polyamide base, anti-slip NBR, and a 30° articulation for optimal stability. Perfect for engineering precision and robust applications.
| Quantity | Price |
|---|---|
| From 1 |
€19.29*
|
| From 5 |
€17.24*
|
| From 15 |
€15.39*
|
| From 50 |
€15.08*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |

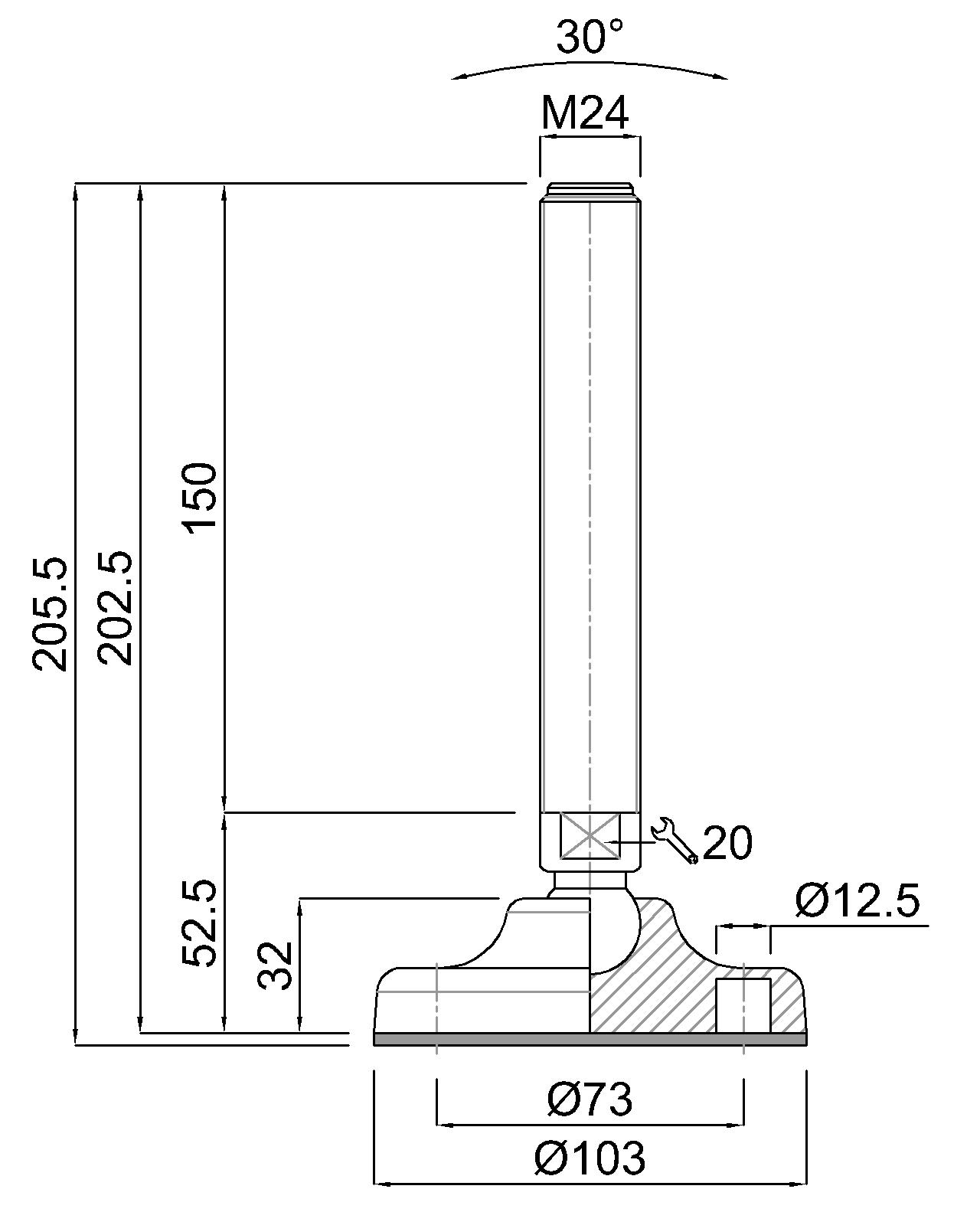

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
