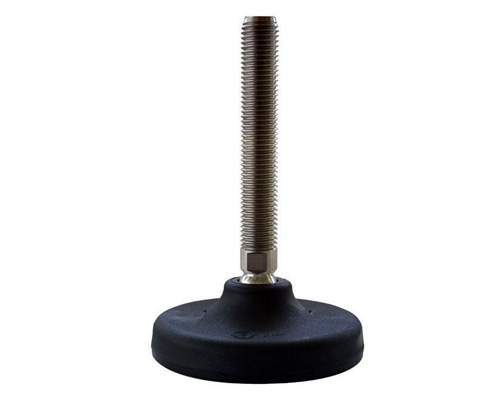

Levelling foot PA, Ø 123 mm, M16 x 200 mm Stainless steel, Drills

EAN 4061408011698

Type 45810166

Optimize your machinery setup with our durable Levelling Foot PA, featuring a 123 mm diameter and M16 x 200 mm stainless steel spindle. Supports static loads up to 35,000 N, with adjustable 30° articulation for precise leveling.

Robust polyamide base with a diameter of 123 mm, ensuring high durability and resistance to wear.
Stainless steel spindle measuring 200 mm in length, offering superior strength and corrosion resistance.
Features an articulated adjustment angle of 30°, allowing precise leveling in uneven surfaces.
Designed for a static load capacity of 35,000 N, making it suitable for heavy-duty applications.
Easy installation with two bore holes of 12.5 mm diameter for secure grounding.

Quantity	Price
From 1	€10.58*
From 5	€9.46*
From 15	€8.45*
From 50	€8.28*

*Prices excl. VAT plus shipping costs

22 on stock, Refill time: 5 days

€10.58* / piece

Our payment methods:

Accessories

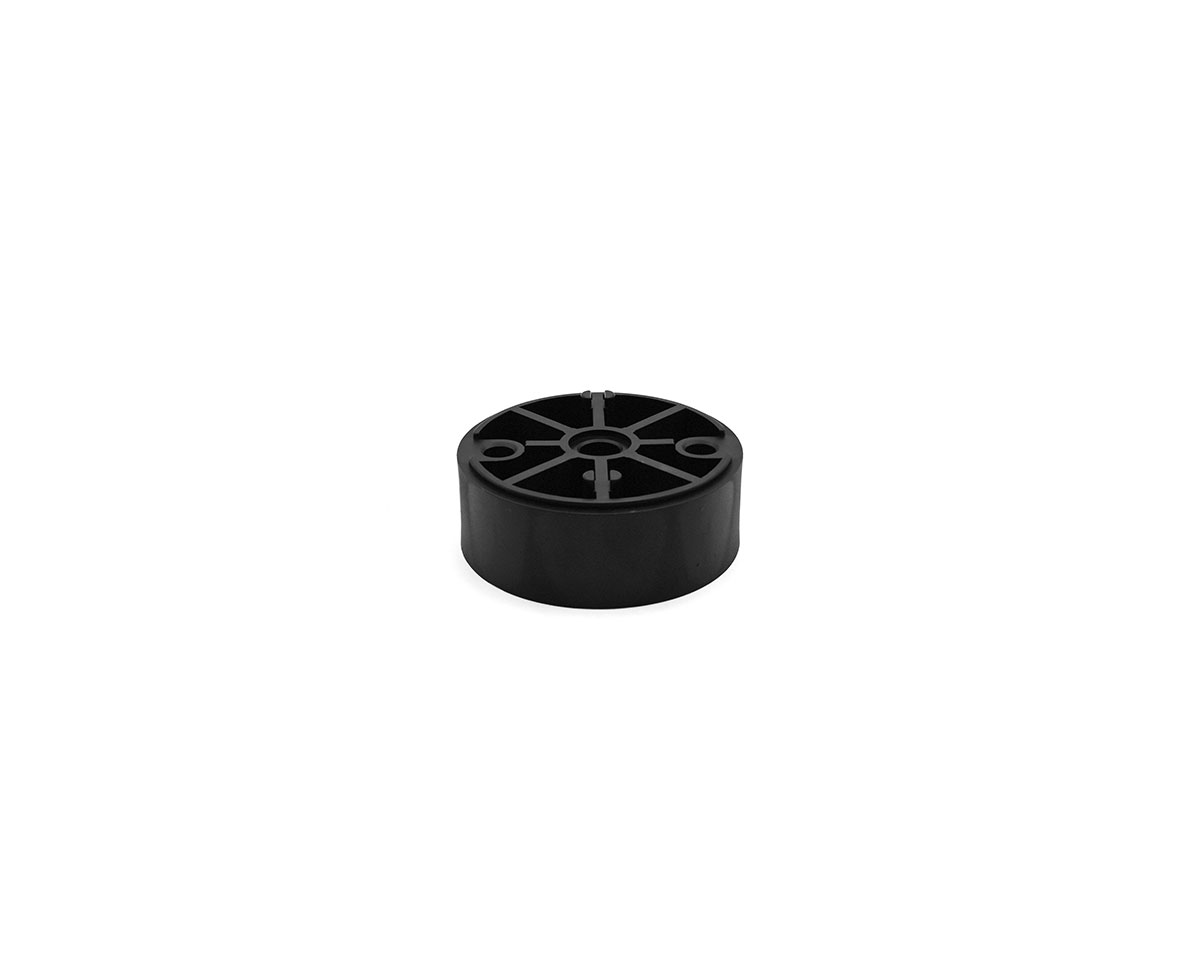

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	No
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	200
Balancing angle:	30°
Hygiene:	No

Product description

Levelling foot Polyamide, Ø 123 mm, M16 x 200 mm, Stainlees steel, Total height 257 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
